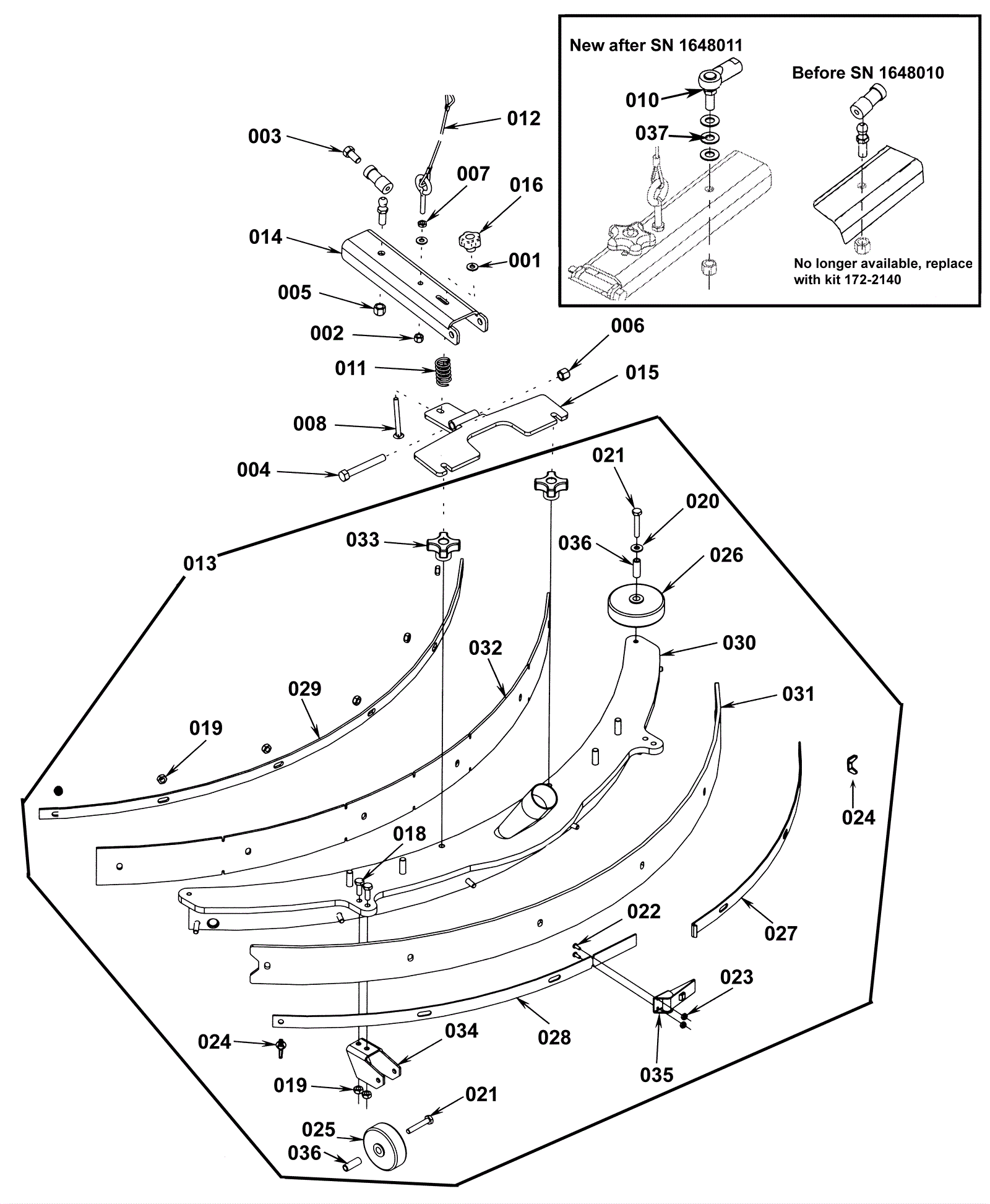

# | Part | Description | Price | Req | Notes | Availability |
001 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
2 |
|
ships same day |
002 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
1 |
|
ships same day |
003 |
999-0512
|
Bolt 3/8-24 x 3/4 hex head grade 5 zinc plated |
$0.90
|
1 |
|
ships same day |
004 |
999-0686
|
Bolt 3/8-16 x 2 3/4 hex head stainless steel |
$2.32
|
1 |
|
ships same day |
005 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
$0.90
|
1 |
|
ships same day |
006 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
$1.25
|
1 |
|
ships same day |
007a |
999-0181
|
Nut 1/4-20 hex jam plain finish |
$0.90
|
1 |
Before SN 1648010 |
ships same day |
007b |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
$0.99
|
1 |
After SN 1648011 |
ships same day |
008 |
999-0514
|
Screw 1/4-20 x 2 1/2 carriage head zinc |
$0.90
|
1 |
|
ships same day |
010 |
172-2140
|
Squeegee pivot kit |
$28.72
|
1 |
(this part is only available in a kit) |
usually ships 6-18 days |
011 |
172-2141
|
Compression spring (OBSOLETE) |
$12.83
|
1 |
|
usually ships 6-18 days |
012a |
172-2142
|
Squeegee lift cable |
$39.46
|
1 |
New Heavy duty cable ONLY |
usually ships 6-18 days |
012b |
272-8124
|
Squeegee cable kit |
$61.09
|
1 |
Needed to upgrade old cable to new heavy duty cable. |
ships same day |
013 |
172-2143
|
Squeegee assembly (OBSOLETE) |
$1,016.75
|
1 |
(includes items 18-36) |
usually ships 6-18 days |
014 |
172-0639
|
Squeegee mount bracket |
$71.45
|
1 |
|
usually ships 1-5 days |
015 |
172-2145
|
Squeegee bracket weldment |
$169.96
|
1 |
|
usually ships 1-5 days |
016 |
172-2146
|
Squeegee mount knob (OBSOLETE) |
$23.05
|
1 |
|
usually ships 6-18 days |
018 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
$3.85
|
4 |
|
ships same day |
019 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
12 |
|
ships same day |
020 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
021 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
$1.16
|
4 |
|
ships same day |
022 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
023 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
$0.99
|
2 |
|
ships same day |
024 |
999-1948
|
Nut 1/4-20 wing lock |
$1.93
|
2 |
|
ships same day |
025a |
172-0045
|
Guide wheel |
$13.40
|
2 |
|
ships same day |
025b |
991-3051
|
Guide wheel |
$4.46
|
2 |
|
ships same day |
026a |
172-0083
|
3 inch guide wheel |
$13.40
|
2 |
|
usually ships 6-18 days |
026b |
991-3060
|
Bumper wheel |
$5.19
|
2 |
|
usually ships 5-16 days |
027 |
172-2192
|
Right rear strap (OBSOLETE) |
$31.99
|
1 |
|
usually ships 6-18 days |
028 |
172-2147
|
Left rear strap |
$36.24
|
1 |
|
usually ships 6-18 days |
029 |
172-0090
|
Front strap |
$61.09
|
1 |
|
usually ships 6-18 days |
030 |
272-2629
|
Squeegee tool weldment |
$949.14
|
1 |
|
usually ships 1-5 days |
031a |
172-0007
|
Squeegee blade 39 3/4 inch gum rubber rear (tan) |
$38.04
|
1 |
(OEM) |
usually ships 6-18 days |
031b |
994-0024
|
Squeegee blade 39 3/4 inch gum rubber rear (tan) |
$20.44
|
1 |
(NON-OEM) |
ships same day |
032a |
172-0086
|
Squeegee blade 37 inch gum rubber front (tan) |
$30.22
|
1 |
(OEM) |
usually ships 6-18 days |
032b |
994-0025
|
Squeegee blade 37 inch gum rubber front (tan) |
$11.69
|
1 |
(NON-OEM) |
ships same day |
032c |
172-1930
|
Squeegee blade front gum rubber tile |
$25.25
|
1 |
|
usually ships 6-18 days |
032d |
172-1931
|
Squeegee blade gum rubber front tile red |
$51.89
|
1 |
|
usually ships 6-18 days |
033 |
172-0635
|
Knob |
$10.90
|
2 |
|
usually ships 6-18 days |
034 |
172-0093
|
Wheel bracket |
$20.36
|
2 |
|
ships same day |
035 |
172-0094
|
Latch |
$43.41
|
1 |
|
ships same day |
036 |
172-0095
|
Bushing |
$32.15
|
4 |
|
usually ships 6-18 days |
037 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
3 |
After SN 1648011 |
ships same day |
KIT |
172-0096
|
Squeegee blade kit standard gum rubber |
$31.51
|
1 |
|
usually ships 6-18 days |
KIT |
172-0097
|
Squeegee blade kit oil resistant neoprene |
$65.69
|
1 |
|
usually ships 6-18 days |
