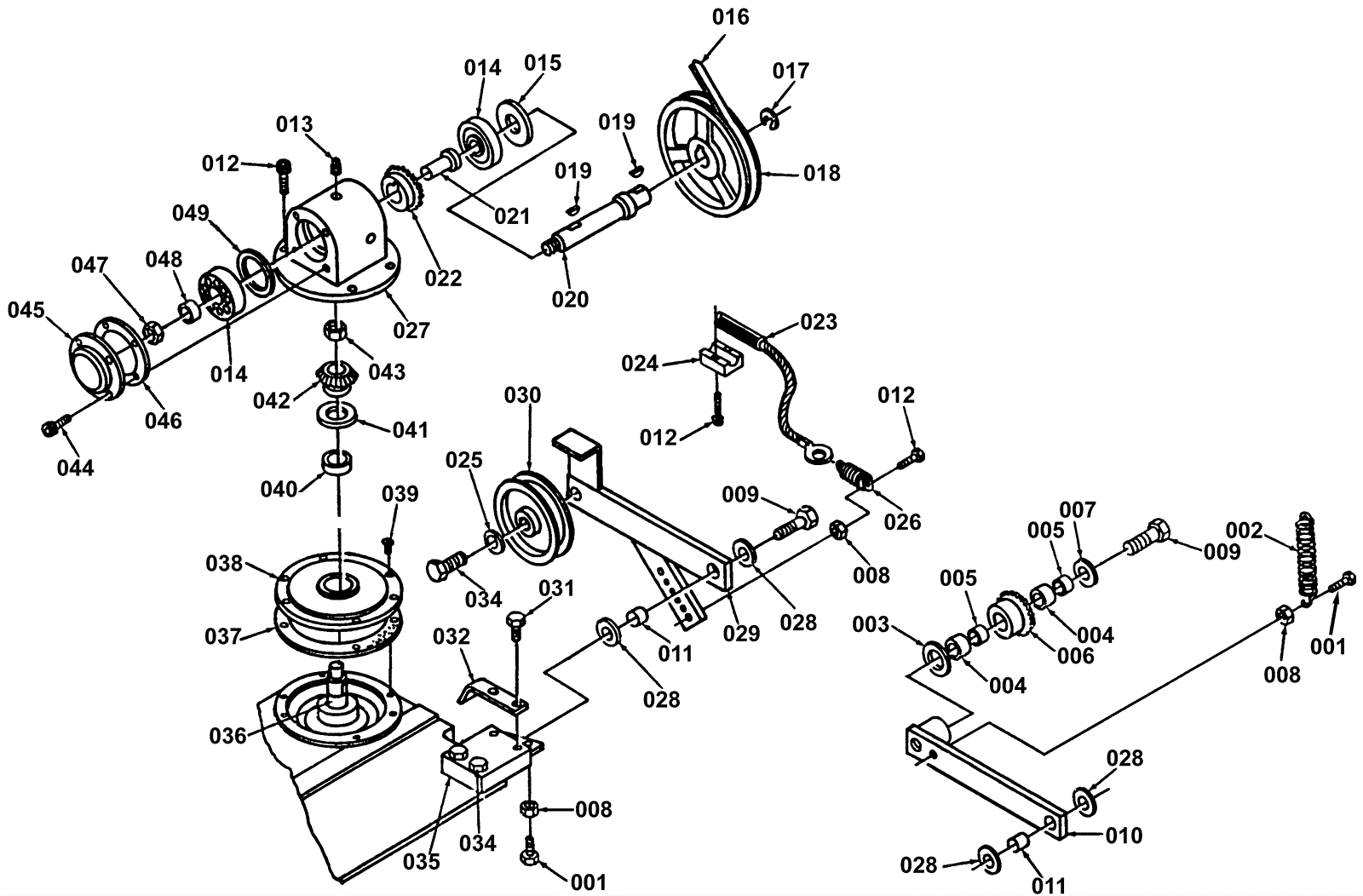

CONVERTAMATIC 38BD Transport Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
002 172-2768 Spring (OBSOLETE) $9.13 1 usually ships 1-5 days
003 172-0152 Thrust bearing $13.77 1 usually ships 1-5 days
004 172-0023 Sleeve bearing $13.40 2 usually ships 16-41 days
005 172-0024 Bushing $13.40 2 usually ships 16-41 days
006 172-2769 Sprocket (OBSOLETE) $146.85 1 usually ships 1-5 days
007 172-0550 Washer 33/64 x 3/4 flat $10.56 5 usually ships 16-41 days
008 999-0181 Nut 1/4-20 hex jam plain finish $0.99 3 ships same day
009 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 2 ships same day
010 172-2770 Idler arm (OBSOLETE) $117.61 1 usually ships 1-5 days
011 172-0072 Bushing $43.41 2 usually ships 16-41 days
012 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 6 ships same day
013 172-2608 Vent plug (OBSOLETE) $16.39 1 usually ships 1-5 days
014 172-2772 Ball bearing (OBSOLETE) $20.32 2 usually ships 1-5 days
015 172-2773 Grease seal (OBSOLETE) $26.73 1 usually ships 1-5 days
016 172-2774 Belt kit (OBSOLETE) $72.39 1 usually ships 1-5 days
017 172-4038 Retaining ring $10.56 1 usually ships 1-5 days
018 172-2574 Sheave (OBSOLETE) $32.51 1 usually ships 1-5 days
019 172-2573 Woodruff key $11.99 2 usually ships 1-5 days
020 172-2777 Shaft (OBSOLETE) $155.03 1 usually ships 1-5 days
021 172-2778 Spacer (OBSOLETE) $42.77 1 usually ships 1-5 days
022 172-2779 Gear (OBSOLETE) $285.29 1 usually ships 1-5 days
023 172-2652 Cable $57.32 1 usually ships 1-5 days
024 172-2760 Cable clamp (OBSOLETE) $42.24 2 usually ships 1-5 days
025 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
026 172-2782 Spring $13.40 1 usually ships 1-5 days
027 172-2783 Housing (OBSOLETE) $190.73 1 usually ships 1-5 days
028 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
029 172-2784 Tension arm $64.15 1 usually ships 1-5 days
030 172-2785 Pulley (OBSOLETE) $35.05 1 usually ships 1-5 days
031 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
032 172-2786 Belt guide (OBSOLETE) $15.57 1 usually ships 1-5 days
034 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 3 ships same day
035 172-2787 Mounting block (OBSOLETE) $78.41 1 usually ships 1-5 days
036 172-2788 Shaft (OBSOLETE) $125.93 1 usually ships 1-5 days
037a 172-2789 Red shim (OBSOLETE) $9.13 1 usually ships 1-5 days
037b 172-2790 Blue shim $10.23 1 usually ships 1-5 days
037c 172-2791 Pink shim $10.23 1 usually ships 1-5 days
038 172-2792 Cap (OBSOLETE) $80.78 1 usually ships 1-5 days
039 999-0692 Screw 1/4-20 x 7/8 flat head phillips zinc plated $0.99 2 ships same day
040 172-0450 Shaft seal $10.23 1 usually ships 1-5 days
041 172-2793 Shim (OBSOLETE) $6.29 1 usually ships 1-5 days
042 172-2779 Gear (OBSOLETE) $285.29 1 usually ships 1-5 days
043 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
044 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
045 172-2795 End cap (OBSOLETE) $64.75 1 usually ships 1-5 days
046a 172-2796 Red shim (OBSOLETE) $8.78 1 usually ships 1-5 days
046b 172-2797 Blue shim (OBSOLETE) $9.35 1 usually ships 1-5 days
046c 172-2798 Pink shim (OBSOLETE) $9.13 1 usually ships 1-5 days
047 999-0693 Nut 9/16-18 nylon insert lock grade 8 yellow zinc $3.19 1 ships same day
048 172-2799 Spacer (OBSOLETE) $20.20 1 usually ships 1-5 days
049 172-2050 Retaining ring $13.40 1 usually ships 1-5 days
