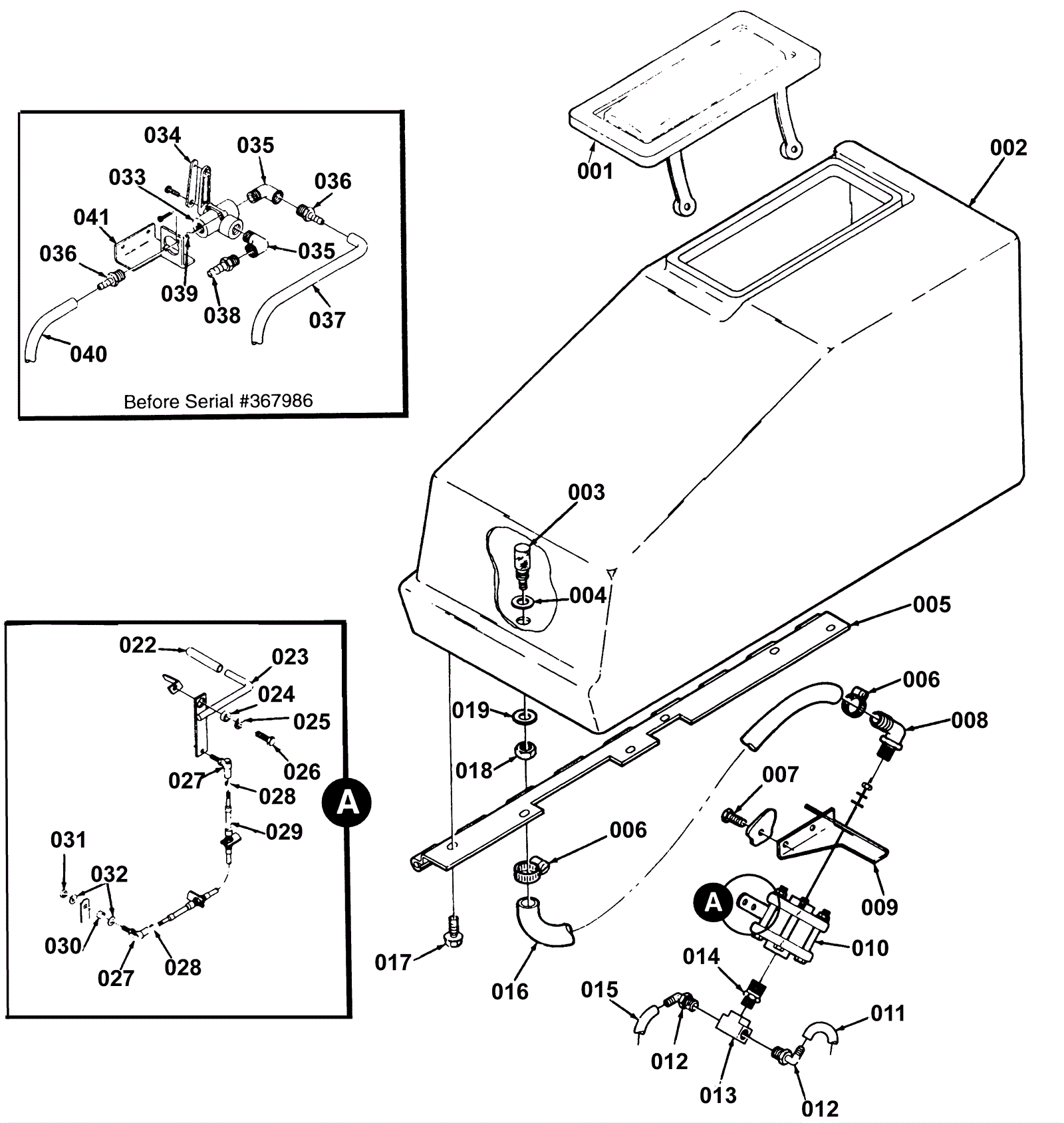

Solution Tank Assembly

#PartDescription ReqNotesAvailability
001a 172-2725 Cover assembly (OBSOLETE) 1 (includes 001b and 001c)
001b 172-2726 Cover (OBSOLETE) 1
001c 172-0203 Strap 2
002 172-2727 Solution tank (OBSOLETE) 1
003 172-0384 Screen 1
004 172-0197 Rubber washer 1
005 172-2699 Hinge (OBSOLETE) 1
006 997-2002 Hose clamp #6 2
007 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
008 172-2729 Barb 1
009a 172-2730 Solution valve assembly (OBSOLETE) 1 (includes 009b thru 015)
009b 172-2731 Valve mount (OBSOLETE) 1
010 172-2732 Solution valve (OBSOLETE) 1
011 172-2733 Solution hose 1
012 172-2734 Elbow barb 27/64 x 3/8 2
013 172-2735 Tee 1
014 172-2736 Nipple 1
015 172-2737 Solution hose 3/8 x 10 inch 1
016 172-2738 Solution hose 1
017 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc 6
018 999-0704 Nut 5/8-11 nylon insert lock stainless steel 1
019 172-0253 Washer 1/8 x 23/64 flat stainless steel 1
022 172-2740 Cap (OBSOLETE) 1
023 172-2741 Lever (OBSOLETE) 1
024 172-2742 Bushing 1
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
026 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated 1
027 172-0207 Rod end #10 2
028 999-0181 Nut 1/4-20 hex jam plain finish 2
029 172-2743 Cable (OBSOLETE) 1
030 172-2657 Bushing 1
031 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
032 999-0123 Washer 1/4 SAE flat zinc plated 2
033 172-8022 Solution control valve (OBSOLETE) 1 (before SN 367986)
034 172-2745 Strap (OBSOLETE) 1 (before SN 367986)
035 172-2746 Elbow 2 (before SN 367986)
036 172-2747 Barb 2 (before SN 367986)
037 172-2748 Tube (OBSOLETE) 1 (before SN 367986)
038 172-2749 Barb 1 (before SN 367986)
039 172-2750 Bushing (OBSOLETE) 2 (before SN 367986)
040 172-2748 Tube (OBSOLETE) 2 (before SN 367986)
041 172-2752 Valve mount (OBSOLETE) 1 (before SN 367986)
