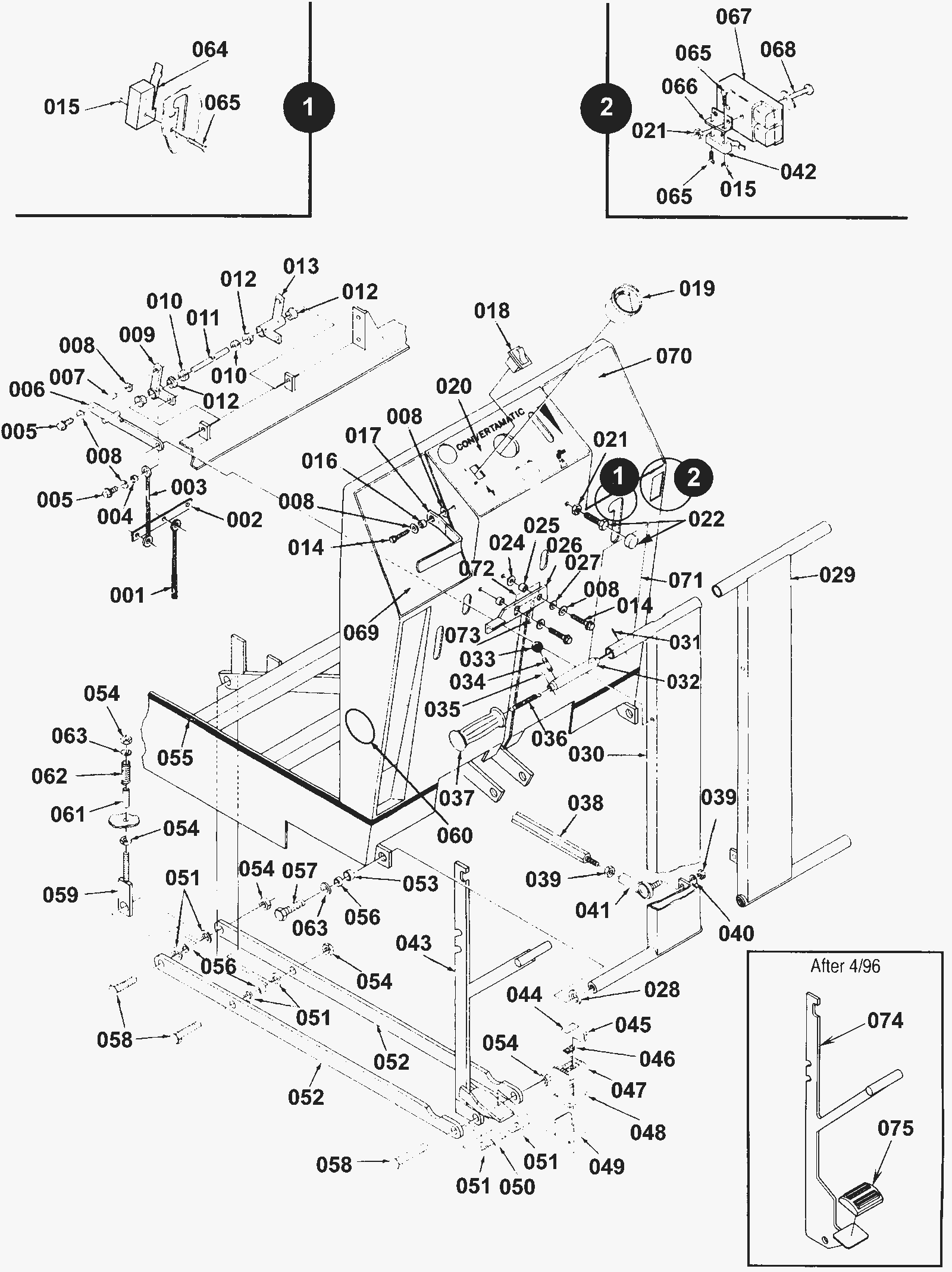

Handle Controls

#PartDescription ReqNotesAvailability
007 172-2657 Bushing 4
009 172-2658 Collar weldment (OBSOLETE) 1
016 172-0186 Bushing 2
024 172-0308 Fiber washer 1
025 172-0379 Bushing 2
033 172-2674 Knob 1
035 172-4051 Spring pin 1
040 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
044 N/A Not available 1 (before 4/96) (Brush decal)
045 999-0348 Screw 1/4-20 x 1 flat head phillips zinc plated 2 (before 4/96)
046 172-0358 Plate (OBSOLETE) 1 (before 4/96)
061 172-0137 Bushing (OBSOLETE) 1
067a 172-2686 175amp charger plug assembly with large gray plug SB175 (OBS 1 (includes plug housing, contacts and wire)
070 N/A Not available 1 (Instruction decal)
071 N/A Not available 1 (Caution decal)
