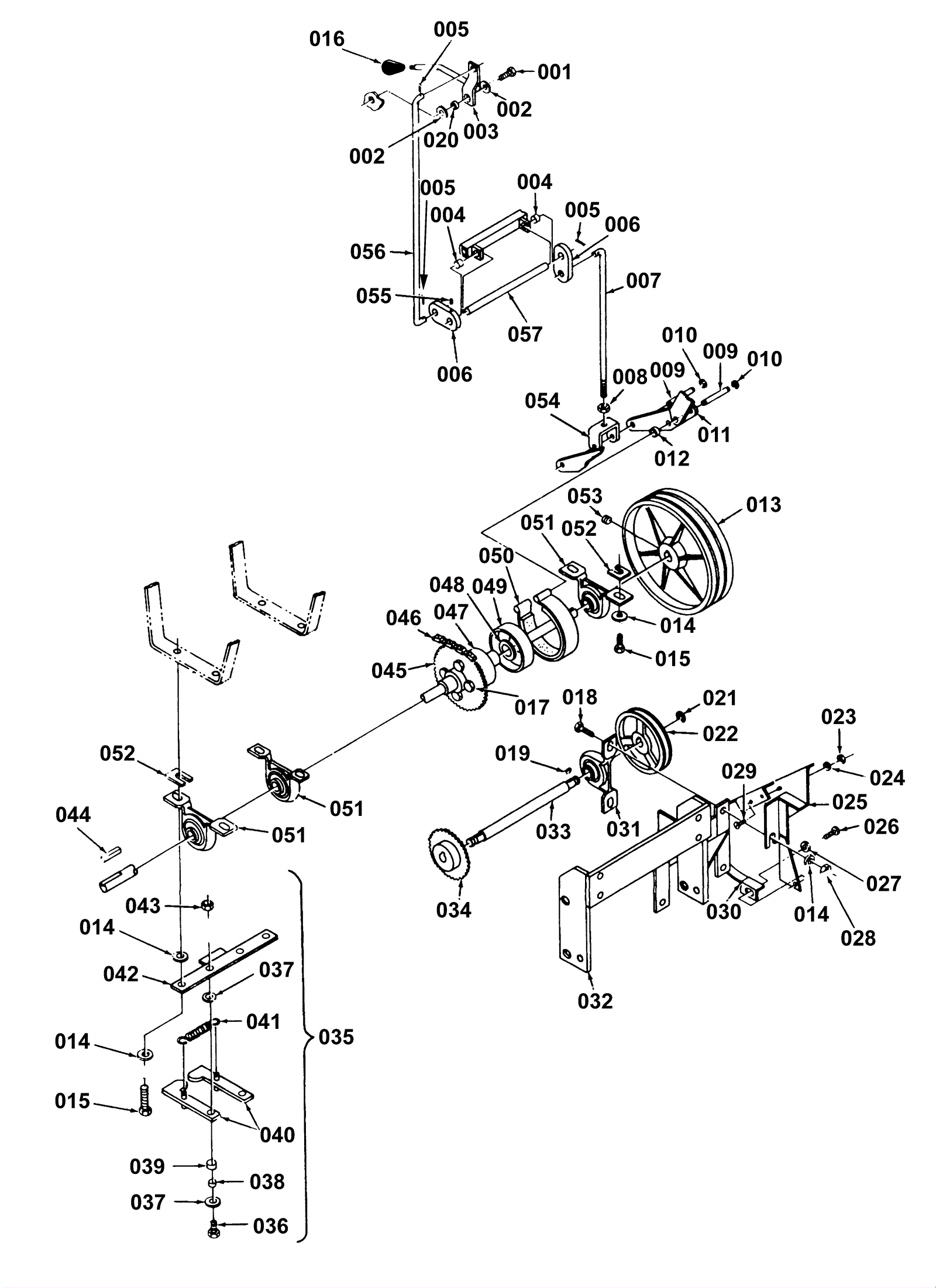

CONVERTAMATIC 32B Differential and Brake

#PartDescriptionPriceReqNotesAvailability
001 999-0115 Bolt 1/2-13 x 1 hex head grade 5 $1.43 1 ships same day
002 172-0550 Washer 33/64 x 3/4 flat $11.35 2 usually ships 13-18 days
003 172-2564 Brake lever (OBSOLETE) $78.41 1 usually ships 1-5 days
004 172-7014 Bushing $13.40 2 usually ships 1-5 days
005 997-2501 Cotter pin 1/16 x 1 $0.99 3 ships same day
006 172-2565 Plate (OBSOLETE) $17.82 2 usually ships 1-5 days
007 172-2566 Lower rod (OBSOLETE) $23.76 1 usually ships 1-5 days
008 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
009 172-2567 Pin (OBSOLETE) $19.28 3 usually ships 1-5 days
010 172-4033 3/8 inch retaining ring $11.35 6 usually ships 13-18 days
011 172-2568 Arm (OBSOLETE) $14.14 2 usually ships 1-5 days
012 172-2569 Bushing $52.69 2 usually ships 13-18 days
013a 172-2570 Urethane wheel $327.50 2 usually ships 1-5 days
013b N/A Not available Call for price 2 (Gray non-marking wheel) usually ships 3-26 days
013c 172-2572 Wheel (OBSOLETE) $165.13 2 (32B) usually ships 1-5 days
014 999-0120 Washer 3/8 SAE flat $0.99 14 ships same day
015 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 10 ships same day
016 172-0021 Knob $25.75 1 usually ships 13-18 days
017 999-0685 Bolt 5/16-18 x 4 1/2 hex head grade 5 zinc plated $0.99 4 ships same day
018 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
019 172-2573 Woodruff key $12.89 2 usually ships 1-5 days
020 172-0139 Bushing $14.41 1 usually ships 1-5 days
021 172-4038 Retaining ring $11.35 2 usually ships 1-5 days
022 172-2574 Sheave (OBSOLETE) $32.51 1 usually ships 1-5 days
023 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
024 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
025 172-2576 Belt guide (OBSOLETE) $517.97 1 usually ships 1-5 days
026 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
027 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
028 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 4 ships same day
029 999-0276 Screw 10-24 x 1/2 hex washer head slotted zinc $0.99 2 ships same day
030 172-2577 Belt guide (OBSOLETE) $78.41 1 usually ships 1-5 days
031 172-2578 Pillow block bearing assembly (OBSOLETE) $130.96 2 usually ships 1-5 days
032a 172-2580 Bracket (OBSOLETE) $181.76 1 (32BD) usually ships 1-5 days
032b 172-2581 Bracket (OBSOLETE) $247.10 1 (38BD) usually ships 1-5 days
033a 172-0458 Shaft (OBSOLETE) $197.80 1 (32BD) usually ships 1-5 days
033b 172-2582 Shaft (OBSOLETE) $207.90 1 (38BD) usually ships 1-5 days
034 172-2583 Sprocket (OBSOLETE) $164.45 1 usually ships 1-5 days
035 172-2584 Centering assembly (OBSOLETE) $223.94 1 (includes 036 thru 043) usually ships 1-5 days
036 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish $1.76 2 ships same day
037 172-0369 Washer 17/64 x 3/4 x 23/64 flat $12.89 2 usually ships 1-5 days
038 172-0185 Bushing $42.67 2 usually ships 1-5 days
039 172-2585 Bearing $9.90 2 usually ships 1-5 days
040 172-2586 Arm (OBSOLETE) $88.51 2 usually ships 1-5 days
041 172-0077 Spring $14.41 2 usually ships 13-18 days
042 172-2587 Bar Weldment (OBSOLETE) $62.37 1 usually ships 1-5 days
043 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
044 172-2588 Key $5.50 2 usually ships 1-5 days
045 172-2589 Sprocket (OBSOLETE) $95.63 1 usually ships 1-5 days
046a 991-0101 Chain (sold by the link) $0.55 68 usually ships 4-8 days
046b 991-0103 Master link $1.87 1 ships same day
046c 172-2592 Offset link (OBSOLETE) $7.37 1 usually ships 1-5 days
047 172-0575 Differential kit (OBSOLETE) $332.64 1 (axle for wheel) usually ships 1-5 days
048 172-2594 Spacer (OBSOLETE) $16.28 1 usually ships 1-5 days
049 172-2595 Brake drum (OBSOLETE) $44.55 1 usually ships 1-5 days
050 172-2596 Brake strap (OBSOLETE) $61.78 1 usually ships 1-5 days
051a 172-2597 Pillow block bearing assembly w/grease fitting (OBSOLETE) $184.12 4 usually ships 13-18 days
051b 172-0109 Fitting (OBSOLETE) $8.78 4 usually ships 1-5 days
052 172-2598 Shim $14.85 8 usually ships 1-5 days
053 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish $0.99 2 ships same day
054 172-2599 Bracket (OBSOLETE) $21.14 1 usually ships 1-5 days
055 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish $0.99 1 ships same day
056 172-2600 Upper rod (OBSOLETE) $35.64 1 usually ships 1-5 days
057 172-2602 Rod (OBSOLETE) $16.63 1 usually ships 1-5 days
