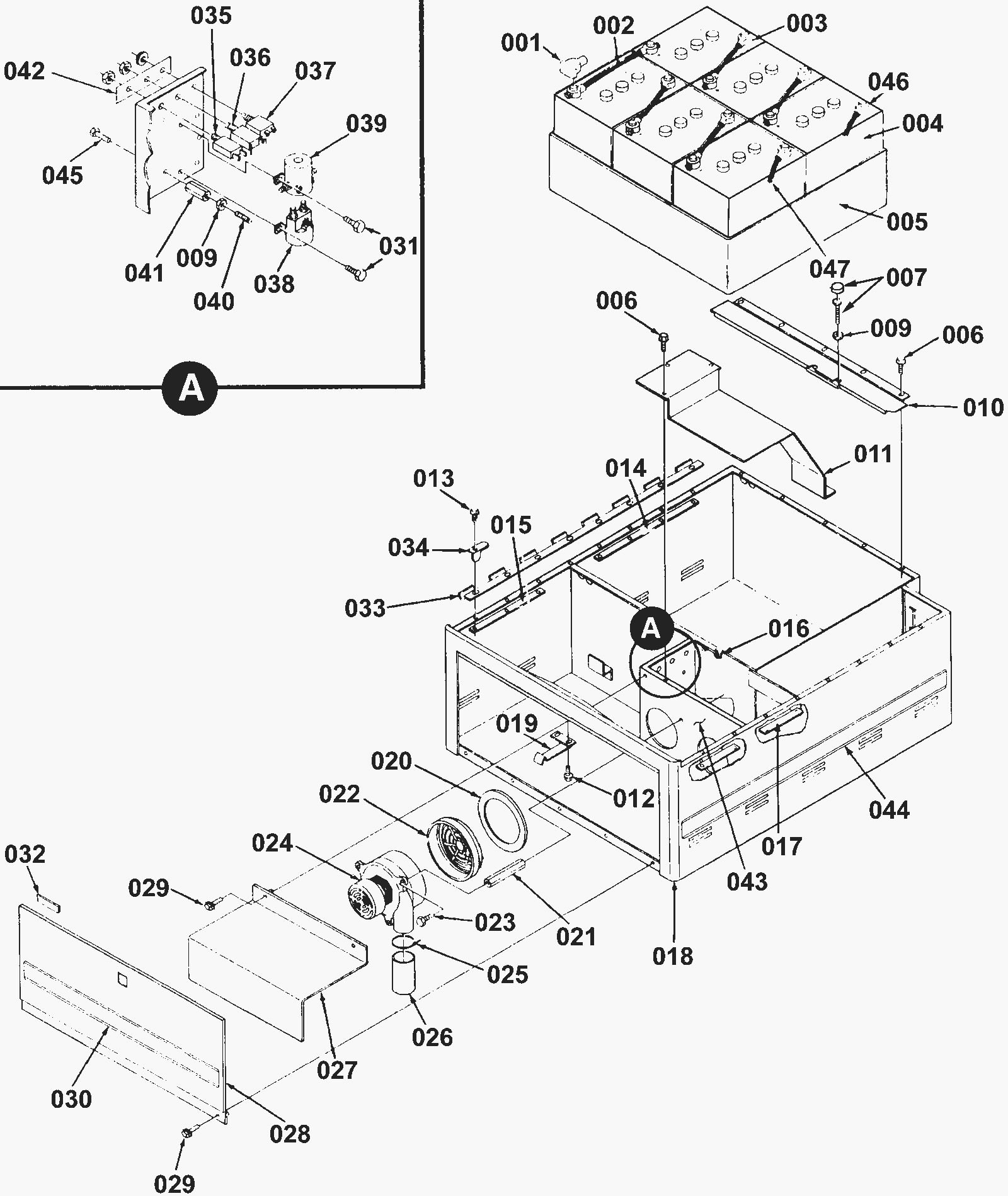

Battery Housing

#PartDescription ReqNotesAvailability
001 172-0223 Battery cable boot 12
002 172-0221 Battery cable assembly - clamp type 2
003 172-0222 Battery cable assembly - clamp type (OBSOLETE) 3
004 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1
005 172-2501 Battery tray (OBSOLETE) 1
006 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 10
007 172-2503 Tank leveler 4
009 999-0181 Nut 1/4-20 hex jam plain finish 6
010 172-2505 Weldment (OBSOLETE) 1
011 172-2506 Belt guard (OBSOLETE) 1
012 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 2
013 999-0276 Screw 10-24 x 1/2 hex washer head slotted zinc 16
014 172-0327 Nut plate (OBSOLETE) 2
015 172-2507 Nut plate (OBSOLETE) 1
016 172-2508 Strain relief (OBSOLETE) 2
017 172-2509 Nut plate (OBSOLETE) 2
018 172-2510 Battery housing (OBSOLETE) 1
019 172-2511 Door latch (OBSOLETE) 1
020a 164-0881 Vacuum motor gasket 2
020b 991-3029 Vacuum motor gasket 2 (NON-OEM)
021 172-2512 Spacer (OBSOLETE) 6
022 991-5119 Vacuum motor filter 2
023 999-0707 Bolt 1/4-20 x 3 3/4 hex head grade 5 zinc plated 6
024a 172-0518 36V vacuum motor assembly (OBSOLETE) 2 (OEM)
024b 991-1202 36V 3 stage vacuum motor tangential 1 (NON-OEM)
024c 991-1222 Plastic covered carbon brush (sold individually) 2
024d 991-1513 BEARING/BALL 2
024e 172-2515 Rotating fan for vacuum motor (OBSOLETE) 2
025 997-2102 Cable tie 2
026 172-0126 Acoustical foam 2
027 172-2516 Shield (OBSOLETE) 1
028a 172-2519 Door assembly (OBSOLETE) 1 (includes 028b)
028b 172-2517 Door weldment (OBSOLETE) 1
029 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 8
030 N/A Not available 1 (Front decal)
031 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 4
032 172-0511 Gasket (OBSOLETE) 1
033 172-2522 Hinge (OBSOLETE) 2
034 172-0330 Hinge clip (OBSOLETE) 4
035 172-2160 10amp circuit breaker 1 (control)
036 472-9567 30amp circuit breaker 1 (vacuum motor)
037 991-1633 70amp circuit breaker 1 (brush motor)
038a 172-2805 36V contactor 1 (brush motor)
038b 172-0236 Diode rectifier assembly 1
039a 991-1223 36V solenoid contactor with 4 post 1 (vacuum motor)
039b 172-0236 Diode rectifier assembly 1
040 172-0345 Terminal stud 2
041 172-0103 Electrical mount 2
042 N/A Not available 1 (Circuit breaker decal)
043 172-2526 Plenum weldment 1
044a N/A Not available 1 (32BD left decal)
044b N/A Not available 1 (32BD right decal)
044c N/A Not available 1 (Left Decal) (38BD)
044d N/A Not available 1 (Right Decal) (38BD)
045 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc 2
046 172-2531 Negative battery cable 1
047 172-0342 Positive battery cable (OBSOLETE) 1
