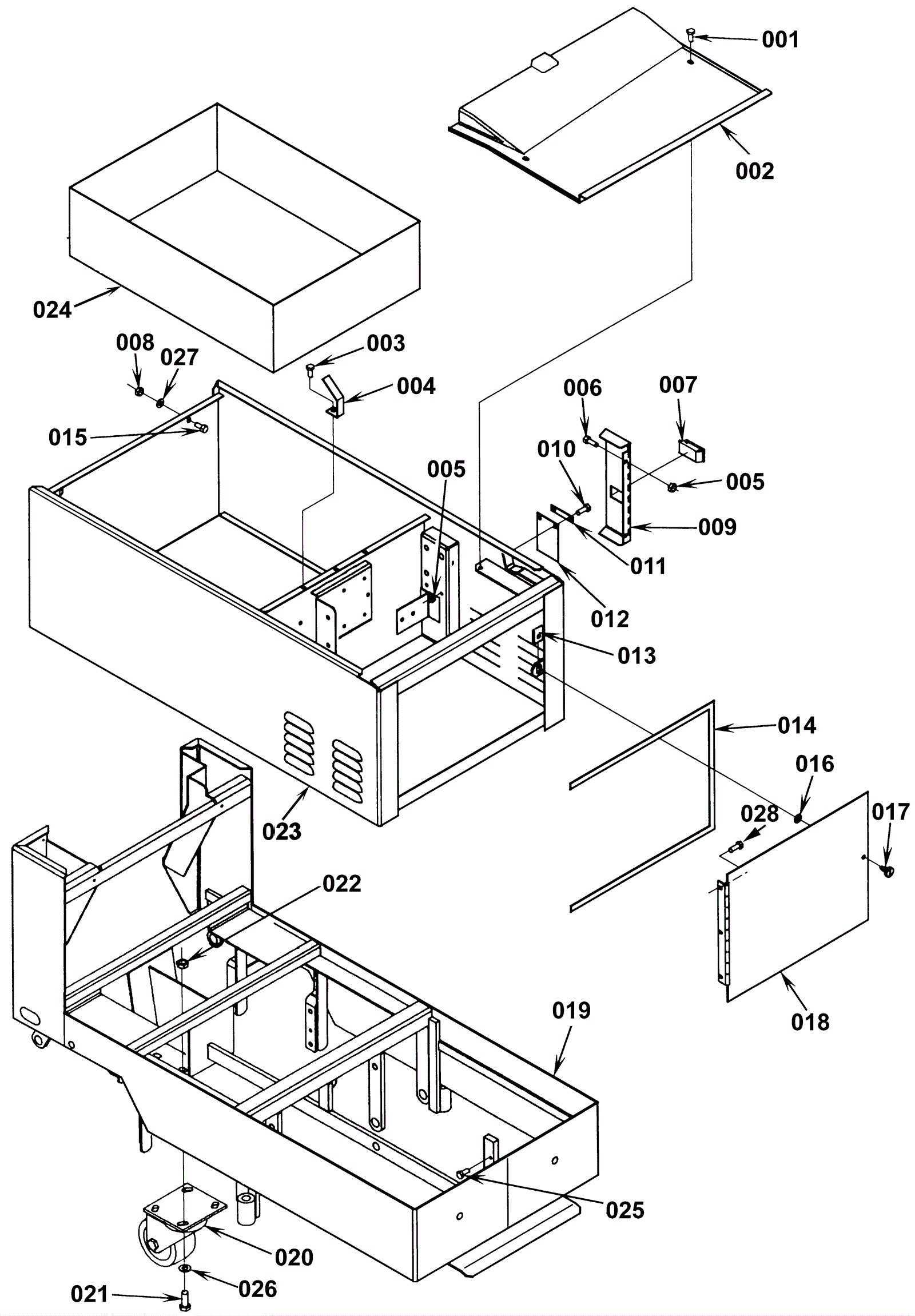

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0273
|
Screw 1/4-20 x 1/2 hex washer head thread rolling zinc |
2 |
|
|
002 |
172-0025
|
Electrical cover (OBSOLETE) |
1 |
|
|
003 |
999-0275
|
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
1 |
|
|
004 |
172-0026
|
Bracket (OBSOLETE) |
1 |
|
|
005 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
006 |
999-0276
|
Screw 10-24 x 1/2 hex washer head slotted zinc |
2 |
use item 010 for model 372450 |
|
007 |
172-0027
|
Slide latch (OBSOLETE) |
1 |
|
|
008 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
009 |
172-0028
|
Door (OBSOLETE) |
1 |
|
|
010 |
999-0193
|
Screw 10-24 x 5/8 pan head slotted thread cutting zinc |
2 |
|
|
011 |
N/A
|
Not available |
1 |
(Strap) |
|
012 |
N/A
|
Not available |
1 |
(Flap) |
|
013 |
172-0031
|
Receptacle (OBSOLETE) |
1 |
|
|
014 |
172-0032
|
Gasket 1/16 x 1/2 x 120 (OBSOLETE) |
1 |
|
|
015 |
999-0326
|
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
2 |
|
|
016 |
172-0033
|
Retainer |
1 |
|
|
017 |
172-0034
|
Screw |
1 |
|
|
018 |
172-0035
|
Door (OBSOLETE) |
1 |
|
|
019 |
172-0036
|
Chassis (OBSOLETE) |
1 |
|
|
020a |
172-0001
|
Swivel caster wheel |
1 |
(OEM) |
|
020b |
991-2006
|
Caster wheel assembly (red) |
1 |
(NON-OEM) |
|
020c |
172-0117
|
4 inch caster wheel (wheel only) |
1 |
|
|
021 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
|
022 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
|
023 |
172-0038
|
Battery housing (OBSOLETE) |
1 |
|
|
024 |
172-0039
|
Battery tray plastic (OBSOLETE) |
1 |
|
|
025 |
999-0793
|
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
4 |
model 372470 only |
|
026 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
027 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
028 |
999-0793
|
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
5 |
|
|
N/S |
172-0335
|
40 1/2 inch squeegee vacuum hose assembly with cuffs (OBSOLE |
1 |
|
|
