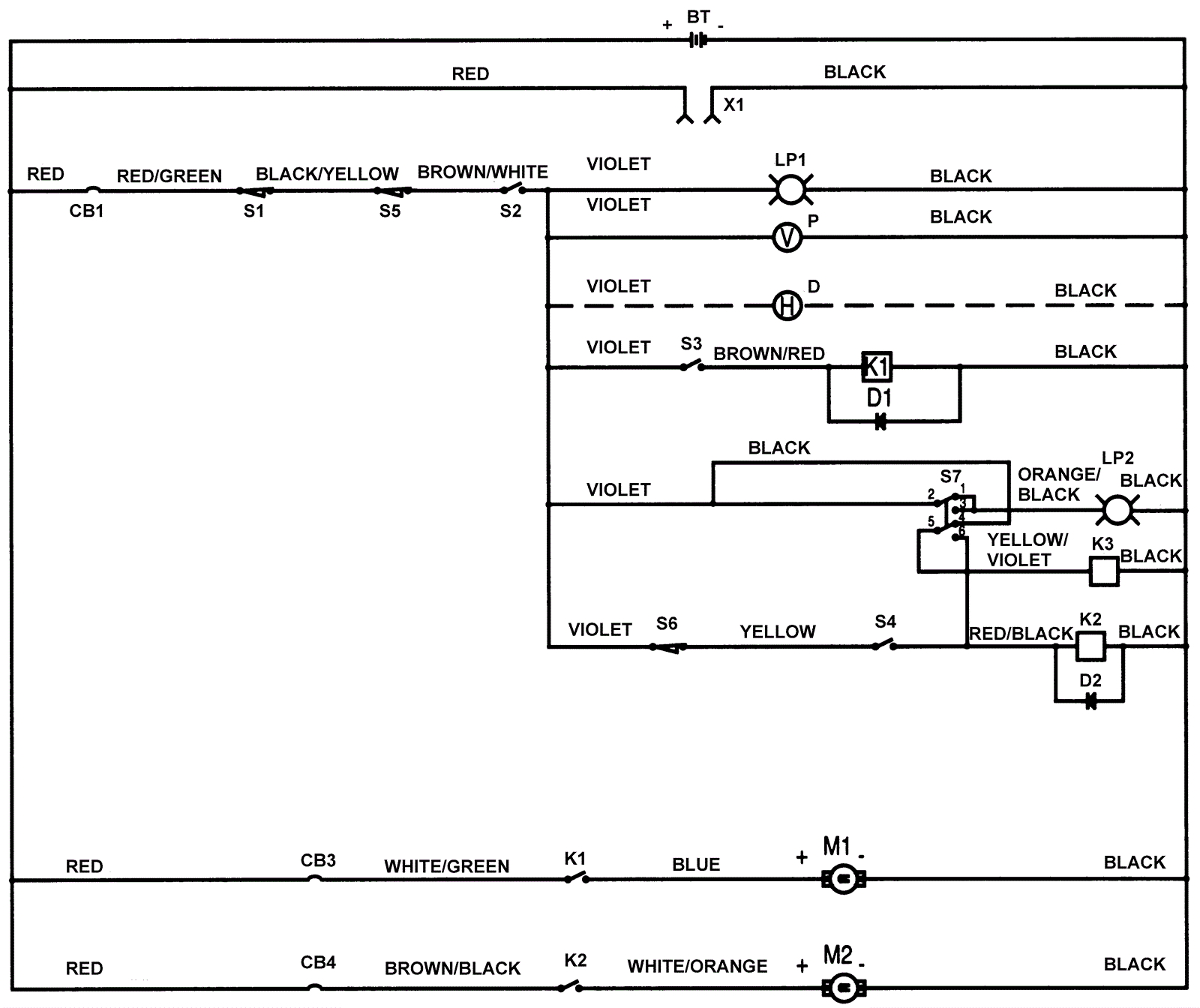

CONVERTAMATIC 200B Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
CB1 172-0228 5amp circuit breaker (OBSOLETE) $79.20 1 usually ships 16-41 days
CB3 172-0227 20amp circuit breaker (OBSOLETE) $69.96 1 usually ships 16-41 days
CB4 472-9567 30amp circuit breaker $276.53 1 usually ships 16-41 days
D1 172-0236 Diode rectifier assembly $31.83 1 ships same day
D2 172-0236 Diode rectifier assembly $31.83 1 ships same day
Da 154-0019 Hour meter $109.19 1 (OEM) usually ships 4-15 days
Db 991-8559 Hour meter $41.11 1 (NON-OEM) ships same day
K1 172-0082 Solenoid contactor (OBSOLETE) $83.82 1 usually ships 16-41 days
K2 172-0082 Solenoid contactor (OBSOLETE) $83.82 1 usually ships 16-41 days
K3 172-2094 Solenoid valve assembly $549.82 1 usually ships 16-41 days
LP1 172-0220 Green light (OBSOLETE) $17.90 1 usually ships 16-41 days
LP2 172-0504 Blue light (OBSOLETE) $7.70 1 usually ships 16-41 days
M1 991-1203 24V 2 stage vacuum motor tangential $91.58 1 ships same day
M2 172-2223 Brush drive motor $1,980.00 1 usually ships 1-5 days
P 172-2302 Battery meter $90.59 1 usually ships 16-41 days
S1 172-0235 Switch assembly (OBSOLETE) $179.06 1 usually ships 16-41 days
S2 172-6004 Toggle switch $44.79 1 usually ships 16-41 days
S3 172-2301 Snap switch $46.22 1 (vaccum motor) usually ships 16-41 days
S4 172-0235 Switch assembly (OBSOLETE) $179.06 1 (brush motor) usually ships 16-41 days
S5 N/A Not available Call for price 1 (Switch assembly) usually ships 3-26 days
S6 172-2301 Snap switch $46.22 1 (brush) usually ships 16-41 days
S7 172-2157 Rocker switch DPDT $80.86 1 (solution) usually ships 16-41 days
X1a 991-2102 50amp charger plug SB50 only (red) $13.95 1 ships same day
BT 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 ships same day
BT 162-0042 12V 115Ah AGM battery (Group 31) $500.50 2 ships same day
