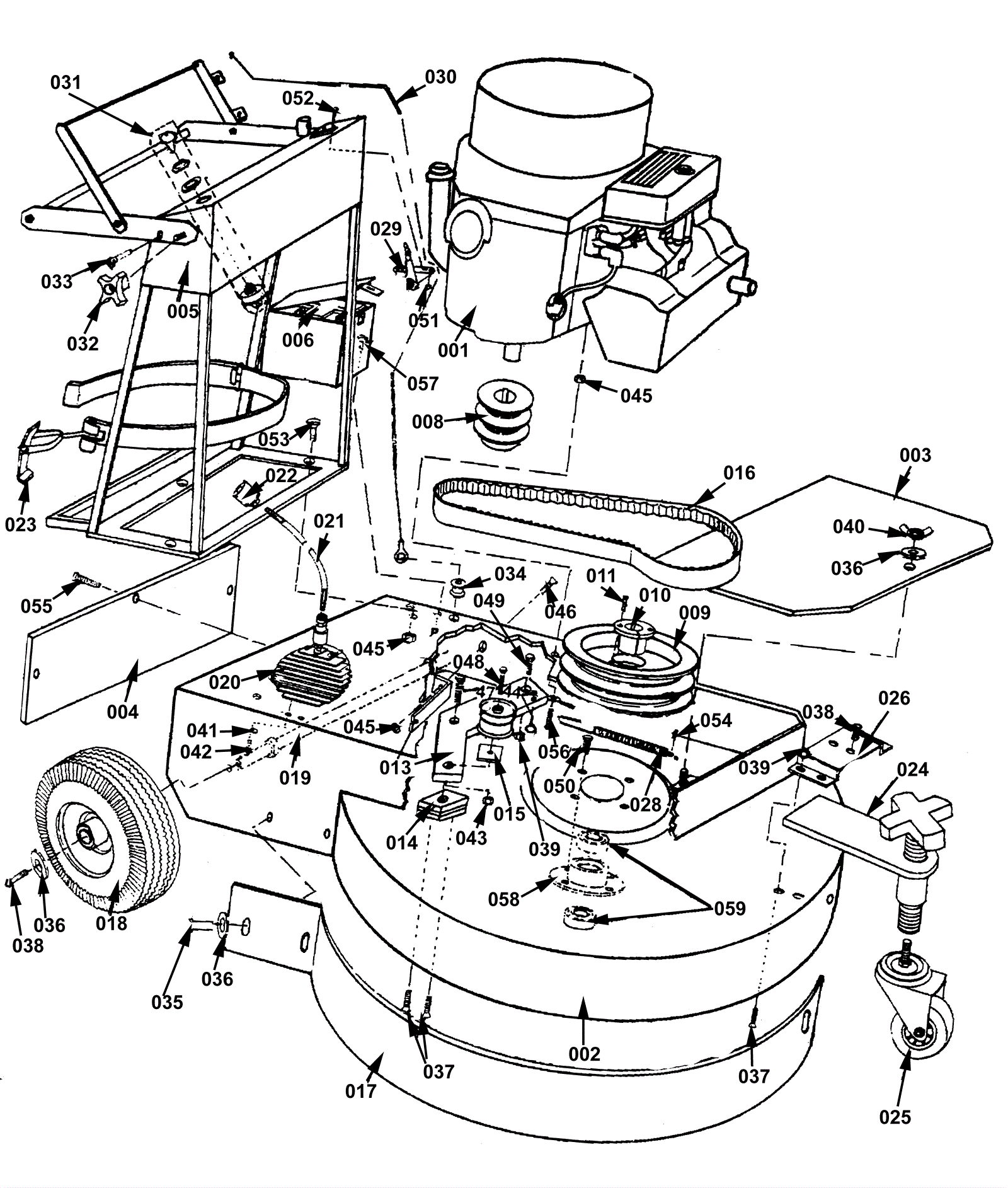

ULTRA 3000T Main Assembly

#PartDescriptionPriceReqNotesAvailability
001a 171-0028 Onan E124V-L engine (OBSOLETE) Call for price usually ships 1-5 days
001b 171-0111 Onan engine P248V-L (OBSOLETE) Call for price usually ships 1-5 days
002 171-0112 Aluminum housing (OBSOLETE) Call for price usually ships 1-5 days
003 171-0113 Top access cover (OBSOLETE) Call for price usually ships 1-5 days
004 171-0114 Rear access panel (OBSOLETE) Call for price usually ships 1-5 days
005 171-0115 Handle (OBSOLETE) Call for price usually ships 1-5 days
007 171-0083 Battery box (OBSOLETE) Call for price usually ships 1-5 days
008 171-0116 Engine pulley (OBSOLETE) Call for price usually ships 1-5 days
009 171-0117 Drive pulley (OBSOLETE) Call for price usually ships 1-5 days
010 171-0039 Drive pulley bushing (OBSOLETE) Call for price usually ships 1-5 days
011 171-0119 Bushing screw (OBSOLETE) Call for price usually ships 1-5 days
012 171-0024 Idler pulley (OBSOLETE) $53.41 usually ships 1-5 days
013 171-0121 Tension arm (OBSOLETE) Call for price usually ships 1-5 days
014 171-0122 Tension arm block (OBSOLETE) Call for price usually ships 1-5 days
015 171-0123 Spacer (OBSOLETE) Call for price usually ships 1-5 days
016 171-0124 Dual banded v belt (OBSOLETE) Call for price usually ships 1-5 days
017 171-0125 Splash guard (OBSOLETE) Call for price usually ships 1-5 days
018 171-0126 Pneumatic tire (OBSOLETE) Call for price usually ships 1-5 days
019 171-0127 Axle (OBSOLETE) Call for price usually ships 1-5 days
021 991-6007 Propane fuel hose $60.02 usually ships 5-15 days
022 991-6007 Propane fuel hose $60.02 usually ships 5-15 days
023 154-0005 Propane tank strap $26.62 ships same day
024 171-0129 Transport wheel arm (OBSOLETE) Call for price usually ships 1-5 days
025 171-0130 Caster (OBSOLETE) Call for price usually ships 1-5 days
026 171-0131 Transport wheel arm bracket (OBSOLETE) Call for price usually ships 1-5 days
027 171-0132 Lower clutch cable bracket (OBSOLETE) Call for price usually ships 1-5 days
028 171-0133 Clutch spring (OBSOLETE) Call for price usually ships 1-5 days
029 171-0134 Throttle cable (OBSOLETE) Call for price usually ships 1-5 days
030 171-0135 Clutch cable $21.78 usually ships 3-29 days
031 169-0016 Key switch assembly with two keys $97.93 ships same day
032 171-0137 Star handle (OBSOLETE) Call for price usually ships 1-5 days
033 171-0138 Handle pin (OBSOLETE) Call for price usually ships 1-5 days
034 171-0139 Grommet (OBSOLETE) Call for price usually ships 1-5 days
035 171-0140 Bolt 3/8 x 5/8 (OBSOLETE) Call for price usually ships 1-5 days
036 999-0964 Washer 5/16 x 3/4 flat stainless steel $0.99 ships same day
037 171-0142 Screw 3/8 x 1 flat head socket (OBSOLETE) Call for price usually ships 1-5 days
038 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 ships same day
039 171-0065 Locknut 3/8 (OBSOLETE) Call for price usually ships 1-5 days
040 171-0143 Nut wing (OBSOLETE) Call for price usually ships 1-5 days
041 171-0144 Washer 1/4 lock (OBSOLETE) Call for price usually ships 1-5 days
042 171-0040 Drive pulley bushing bolt (OBSOLETE) Call for price usually ships 1-5 days
043 171-0145 Nut 1/2 lock (OBSOLETE) Call for price usually ships 1-5 days
044 171-0146 Eyelet with nut #10 (OBSOLETE) Call for price usually ships 1-5 days
045 171-0069 Locknut 5/16 (OBSOLETE) Call for price usually ships 1-5 days
046 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 ships same day
047 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish $1.76 ships same day
048 999-0128 Bolt 1/2-13 x 3 hex head grade 5 zinc plated $2.51 ships same day
049 999-1229 Bolt 3/8-16 x 1 1/2 tap head full thread grade 5 zinc plated $0.99 usually ships 11-24 days
050 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 ships same day
051 171-0151 Lock nut 1/4 (OBSOLETE) Call for price usually ships 1-5 days
052 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 ships same day
054 171-0154 Bolt 5/16 x 1 hex head (OBSOLETE) Call for price usually ships 1-5 days
055 171-0155 Bolt 3/8 x 3/4 hex head (OBSOLETE) Call for price usually ships 1-5 days
057 171-0158 Screw 5/16 x 1 socket flat head (OBSOLETE) Call for price usually ships 1-5 days
058 171-0159 Upper bearing housing (OBSOLETE) Call for price usually ships 1-5 days
059 171-0017 Bearings (OBSOLETE) $34.73 usually ships 1-5 days
