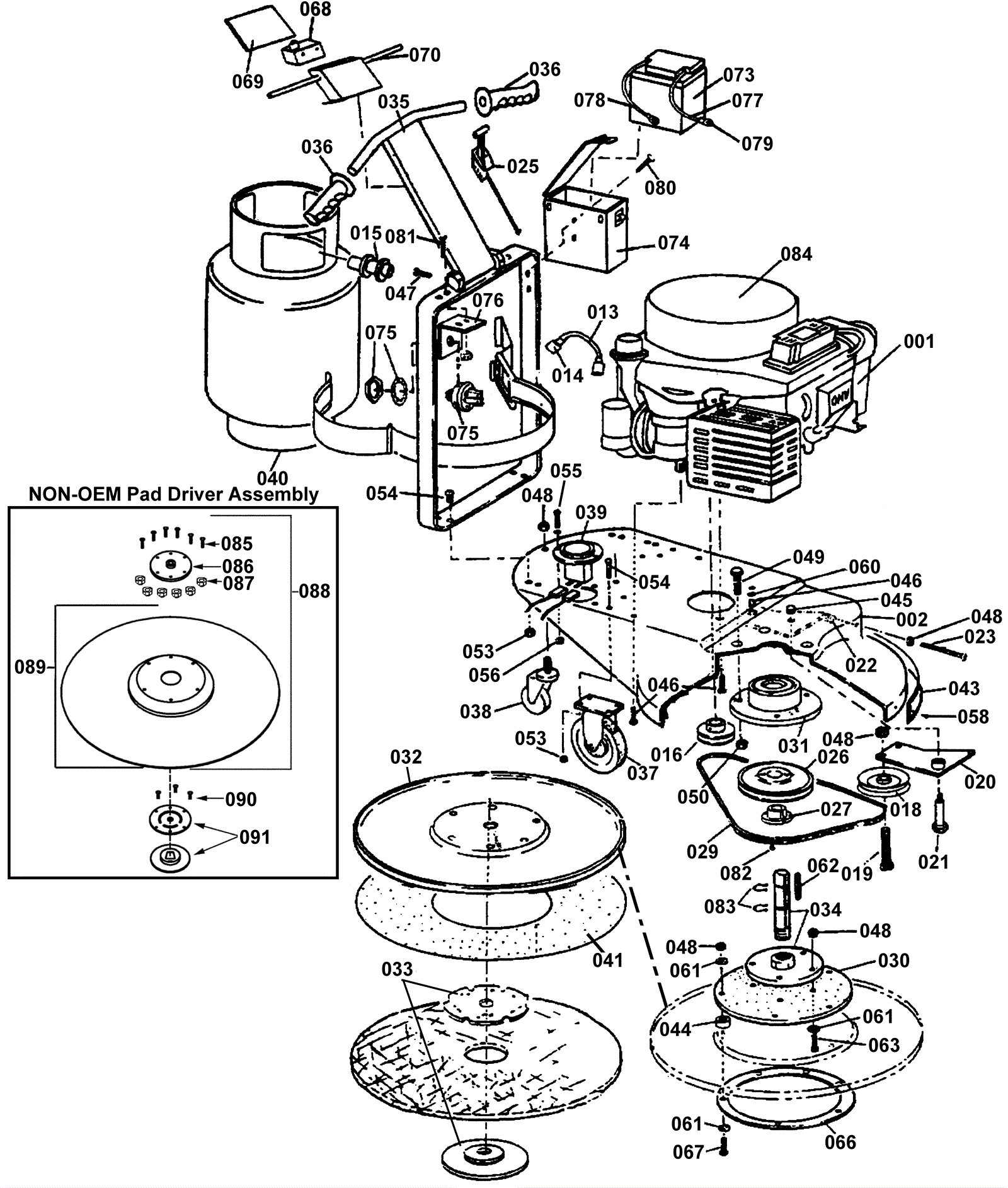

ULTRA 2100 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 171-0028 Onan E124V-L engine (OBSOLETE) Call for price usually ships 1-5 days
002 171-0030 Cast aluminum housing (OBSOLETE) Call for price usually ships 1-5 days
013 991-6007 Propane fuel hose $60.02 usually ships 5-15 days
014 991-6004 Female quick coupler $24.89 usually ships 3-11 days
015 171-0165 Male rego coupler (OBSOLETE) Call for price usually ships 1-5 days
016 171-0022 Pulley 24 inch (OBSOLETE) $79.07 usually ships 1-5 days
018 171-0002 Idler pulley (OBSOLETE) $18.07 usually ships 1-5 days
019 171-0034 Belt 3/8 x 2 (OBSOLETE) Call for price usually ships 1-5 days
020 171-0035 Idler pulley swing plate (OBSOLETE) Call for price usually ships 1-5 days
021 171-0036 Shoulder bolt (OBSOLETE) Call for price usually ships 1-5 days
022 171-0037 Adjusting idler spring (OBSOLETE) Call for price usually ships 1-5 days
023 171-0038 External tension adjusting screw (OBSOLETE) Call for price usually ships 1-5 days
025 160-0006 48 inch throttle control cable $64.74 ships same day
026 171-0009 Drive pulley (OBSOLETE) $58.18 usually ships 1-5 days
027 171-0039 Drive pulley bushing (OBSOLETE) Call for price usually ships 1-5 days
029 991-0027 BX35 belt $22.14 usually ships 3-5 days
030 171-0041 9 Inch flex disc (OBSOLETE) $55.57 usually ships 1-5 days
031a 171-0012 Rigid bearing assembly (OBSOLETE) $83.18 SN 21-11489 and lower OEM usually ships 1-5 days
031b 171-0012 Rigid bearing assembly (OBSOLETE) $83.18 SN 21-11490 and above OEM usually ships 1-5 days
032 171-0013 Pad plate (OBSOLETE) $72.88 OEM usually ships 1-5 days
033a 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 OEM ships same day
033c 991-8577 Pad retainer $19.76 1 (NON-OEM) ships same day
034a 171-0049 Circle shaft (OBSOLETE) Call for price SN 21-11489 and lower OEM usually ships 1-5 days
034b 171-0008 Pad drive shaft (OBSOLETE) $77.50 SN 21-11490 and above OEM usually ships 1-5 days
035a 171-0054 Handle with tank strap (OBSOLETE) Call for price usually ships 1-5 days
035b 171-0195 Toggle switch (OBSOLETE) Call for price usually ships 1-5 days
036 171-0056 Hand grip (OBSOLETE) Call for price usually ships 1-5 days
037 171-0057 Rigid caster (OBSOLETE) Call for price usually ships 1-5 days
038 171-0058 Rear caster (OBSOLETE) Call for price usually ships 1-5 days
039a 154-0019 Hour meter $109.19 1 (OEM) usually ships 4-15 days
039b 991-8559 Hour meter $41.11 1 (NON-OEM) ships same day
040 154-1065 Steel propane tank $285.58 1 usually ships 1-5 days
041 171-0014 Pad plate facing (OBSOLETE) $69.28 OEM usually ships 1-5 days
042 171-0015 Bumper guard (OBSOLETE) $42.34 usually ships 1-5 days
044 171-0061 Spacers (OBSOLETE) Call for price OEM usually ships 1-5 days
045 171-0062 Cap nut (OBSOLETE) Call for price usually ships 1-5 days
046 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 ships same day
047 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 ships same day
048 171-0065 Locknut 3/8 (OBSOLETE) Call for price OEM usually ships 1-5 days
049 171-0067 Bolt 7/16 x 1 1/2 (OBSOLETE) Call for price usually ships 1-5 days
050 171-0068 Locknut 7/16 (OBSOLETE) Call for price usually ships 1-5 days
053 171-0069 Locknut 5/16 (OBSOLETE) Call for price usually ships 1-5 days
054 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 ships same day
055 171-0071 Screw 6/32 x 3 (OBSOLETE) Call for price usually ships 1-5 days
056 171-0072 Nut 6-32 (OBSOLETE) Call for price usually ships 1-5 days
059 171-0073 Screw 5/8 sheet metal (OBSOLETE) Call for price usually ships 1-5 days
060 999-0024 Washer 5/16 flat stainless steel $1.34 ships same day
061 999-1254 Washer 3/8 SAE flat zinc plated $0.99 OEM ships same day
062 171-0076 Key way (OBSOLETE) Call for price usually ships 1-5 days
063 999-1229 Bolt 3/8-16 x 1 1/2 tap head full thread grade 5 zinc plated $0.99 OEM usually ships 11-24 days
066 171-0078 Support ring (OBSOLETE) Call for price OEM usually ships 1-5 days
067 999-1229 Bolt 3/8-16 x 1 1/2 tap head full thread grade 5 zinc plated $0.99 OEM usually ships 11-24 days
068 171-0108 Microswitch (OBSOLETE) Call for price usually ships 1-5 days
069 171-0081 Switch cover (OBSOLETE) Call for price usually ships 1-5 days
070 171-0082 Switch lever (OBSOLETE) Call for price usually ships 1-5 days
074 171-0083 Battery box (OBSOLETE) Call for price usually ships 1-5 days
075a 169-0016 Key switch assembly with two keys $97.93 ships same day
075b 991-1901 Key $2.68 ships same day
076 171-0084 Key switch bracket (OBSOLETE) Call for price usually ships 1-5 days
077 171-0085 Positive battery cable (red) (OBSOLETE) Call for price usually ships 1-5 days
078 171-0197 Negative battery cable (black) (OBSOLETE) Call for price usually ships 1-5 days
079 171-0198 Battery cable terminals (OBSOLETE) Call for price usually ships 1-5 days
080 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 ships same day
081 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 ships same day
082 171-0040 Drive pulley bushing bolt (OBSOLETE) Call for price usually ships 1-5 days
083 171-0053 Retaining ring (OBSOLETE) Call for price usually ships 1-5 days
084 171-0029 Dust filter for Onan (OBSOLETE) Call for price usually ships 1-5 days
085 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 6 ships same day
087 999-0069 Nut 5/16-18 hex $0.99 6 ships same day
088a 996-5058 21 inch complete pad driver assembly $175.92 1 usually ships 3-26 days
088b 996-5057 24 inch complete pad driver assembly $170.10 1 usually ships 3-26 days
088c 996-5056 27 inch complete pad driver assembly $168.71 1 usually ships 3-26 days
089a 996-5061 21 inch flex and riser assembly $167.72 1 ships same day
089b 996-5060 24 inch flex and riser assembly (OBSOLETE) $127.75 1 usually ships 6-18 days
089c 996-5059 27 inch flex and riser assembly $163.44 1 usually ships 3-26 days
090 999-1296 Screw 12 x 5/8 pan head phillips $0.99 3 ships same day
091a 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 ships same day
091c 991-8577 Pad retainer $19.76 1 (NON-OEM) ships same day
