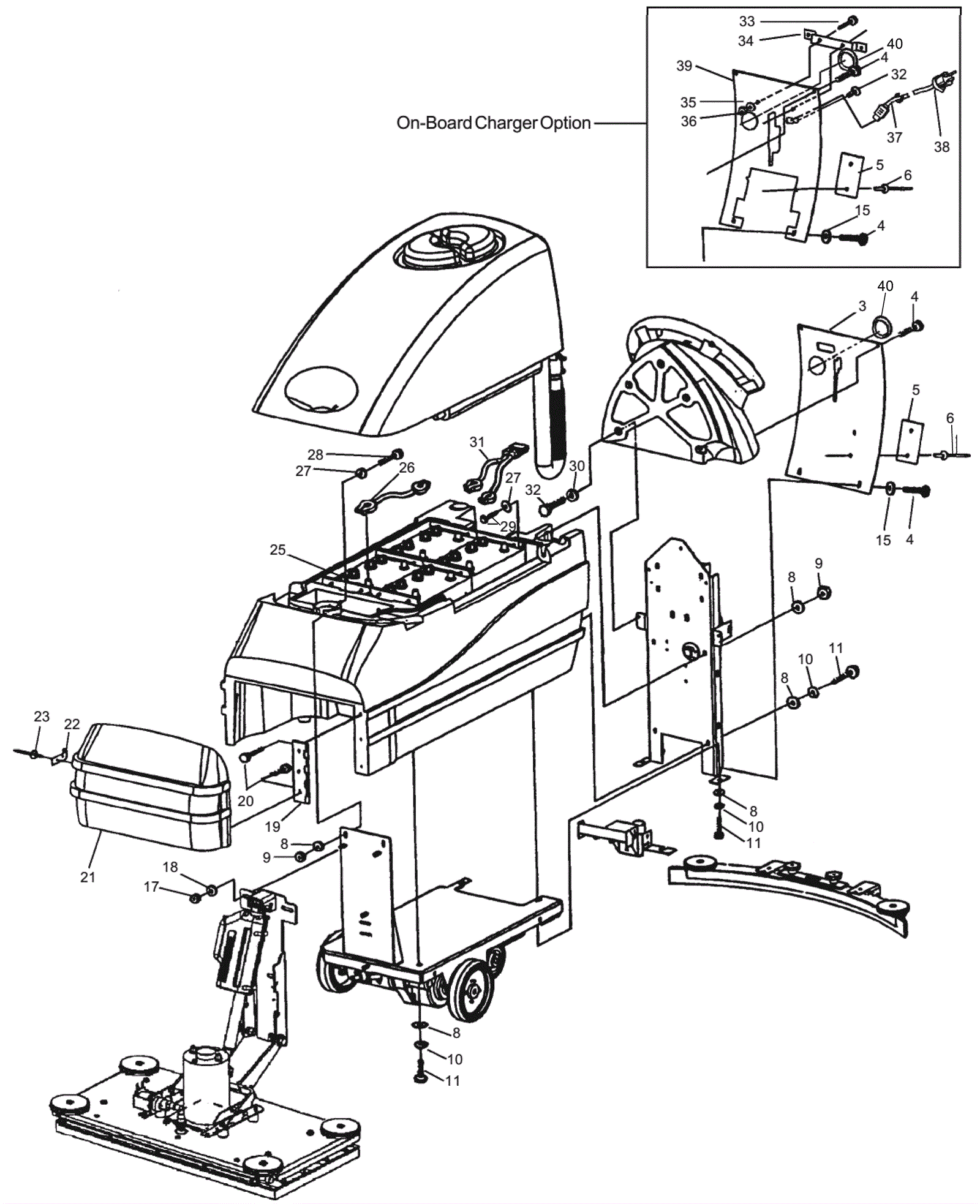

BOOST 28 Body Assembly

#PartDescriptionPriceReqNotesAvailability
3 170-1892 Rear cover $109.00 1 usually ships 16-41 days
4 999-0849 Screw 10-24 x 1/2 round head slotted nylon $0.99 4 ships same day
5 170-3930 Warning plate (OBSOLETE) $7.81 1 usually ships 16-41 days
6 170-3005 Pop rivet $9.03 2 usually ships 1-5 days
8 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 11 ships same day
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
10 999-0028 Washer 5/16 split lock plain finish $0.99 7 ships same day
11 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 7 ships same day
15 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
17 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 4 ships same day
18 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
19 170-1898 Hinge $70.95 1 usually ships 1-5 days
20 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 6 ships same day
21 170-9075 Front cover (OBSOLETE) $202.14 1 usually ships 1-5 days
22 209-2377 Latch and strike $41.84 usually ships 16-41 days
23 170-1901 Rivet 5/32 x 9/16 $10.56 2 usually ships 1-5 days
25a 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 ships same day
25b 162-0005 6V 305Ah wet battery (SNSR) $412.50 4 ships same day
26a 998-0010 Battery jumper cable - ring type (red) $4.84 3 ships same day
26b 170-1906 Series battery cable (ring style) $44.79 3 usually ships 16-41 days
26c 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 3 (NON-OEM) usually ships 5-16 days
27 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 4 ships same day
28 170-8229 Screw 5/16-18 x 2 (OBSOLETE) $10.52 2 usually ships 1-5 days
29 999-0911 Screw 5/16-18 x 3 hex head stainless steel $4.75 2 ships same day
30 999-6684 Washer 1/4 flat stainless steel $0.99 5 ships same day
31a 170-1749 Battery cable assembly (OBSOLETE) $246.26 1 (taper style) usually ships 16-41 days
31b 170-1907 Battery cable (ring style) $93.14 1 usually ships 16-41 days
32 170-2128 Screw 1/4 20 x 3/4 $10.52 5 (on-board charger) usually ships 1-5 days
33 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 (on-board charger) ships same day
34 170-9076 Cord wrap bracket (OBSOLETE) $92.40 1 (on-board charger) usually ships 1-5 days
35 999-0016 Washer 1/4 flat plain finish $0.99 2 (on-board charger) ships same day
36 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 (on-board charger) ships same day
37 170-9077 Bushing (OBSOLETE) $7.01 1 (on-board charger) usually ships 1-5 days
38 170-7385 Onboard charger cord $28.74 1 (on-board charger) usually ships 16-41 days
39 170-9078 Rear cover $112.71 1 (on-board charger) usually ships 1-5 days
40 270-0020 Hole plug 1 3/8 inch $10.52 1 (on-board charger) usually ships 1-5 days
N/S 162-9002 24V 25amp battery charger with small SB50 red plug $707.07 1 usually ships 5-16 days
N/S 170-0229 Battery warning decal $16.50 1 usually ships 1-5 days
N/S 170-0230 Falling parts warning decal $16.50 1 usually ships 1-5 days
N/S 170-1911 Battery label (OBSOLETE) $11.00 1 usually ships 1-5 days
N/S 170-1708 Brake kit assembly inchL inch (OBSOLETE) $453.88 1 usually ships 1-5 days
