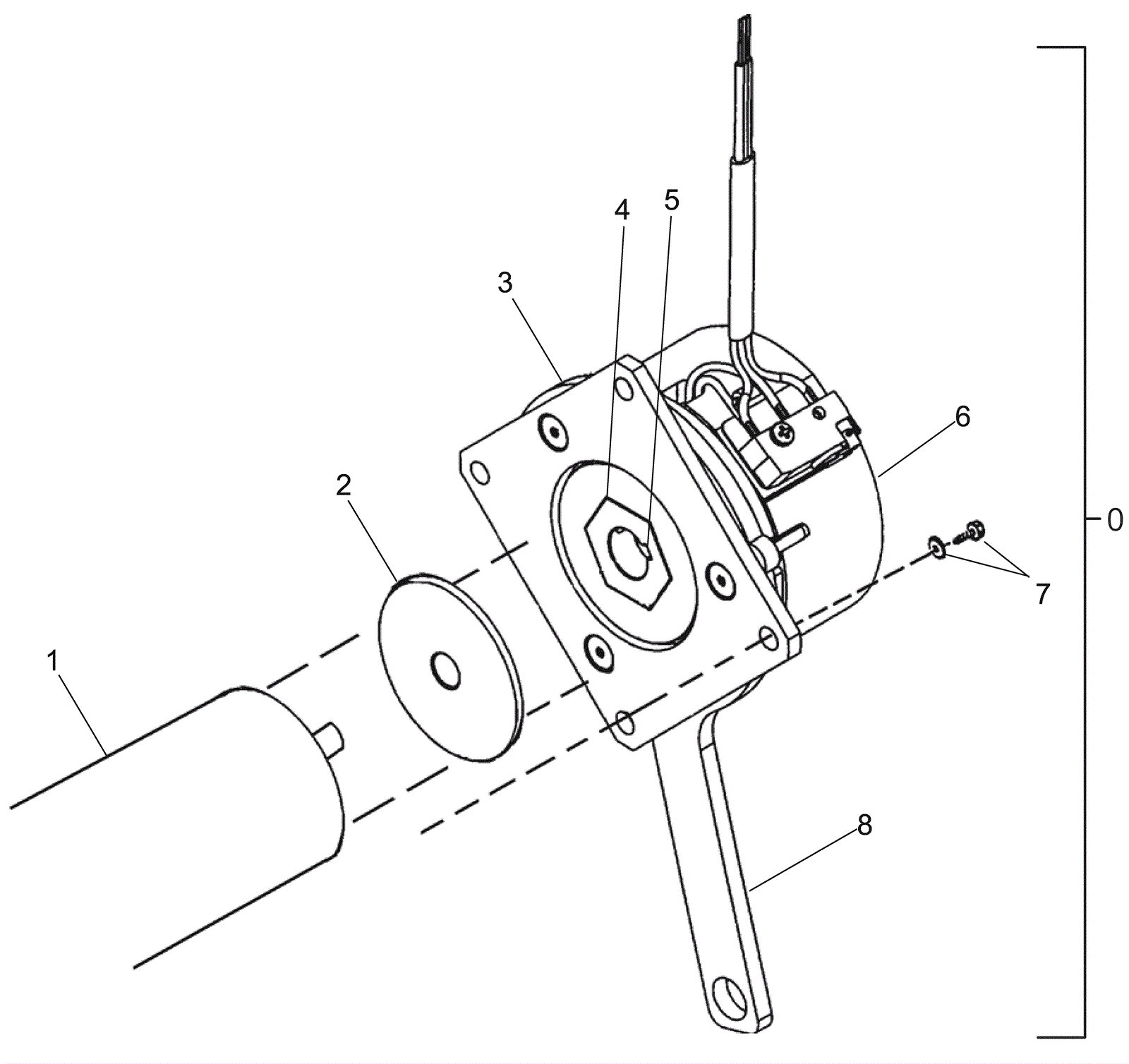

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
170-1708
|
Brake kit assembly inchL inch (OBSOLETE) |
$453.88
|
1 |
(includes 1-8) |
usually ships 1-5 days |
1 |
272-9970
|
Transaxle motor kit |
$730.73
|
1 |
|
usually ships 16-41 days |
2 |
170-2107
|
Spacer (OBSOLETE) |
$22.33
|
1 |
|
usually ships 1-5 days |
3 |
170-2103
|
Cover retainer tie (OBSOLETE) |
$5.50
|
1 |
|
usually ships 1-5 days |
4 |
170-2105
|
Nut - brake/drive (OBSOLETE) |
$22.57
|
1 |
|
usually ships 1-5 days |
5 |
170-2106
|
Key 3/32 x 1/4 (OBSOLETE) |
$6.78
|
1 |
|
usually ships 1-5 days |
6 |
170-2102
|
Vinyl cover (OBSOLETE) |
$25.89
|
1 |
|
usually ships 1-5 days |
7 |
170-2108
|
Screw set (OBSOLETE) |
$6.78
|
2 |
|
usually ships 1-5 days |
8 |
170-2104
|
Brake assembly 24V (OBSOLETE) |
$626.93
|
1 |
|
usually ships 1-5 days |
