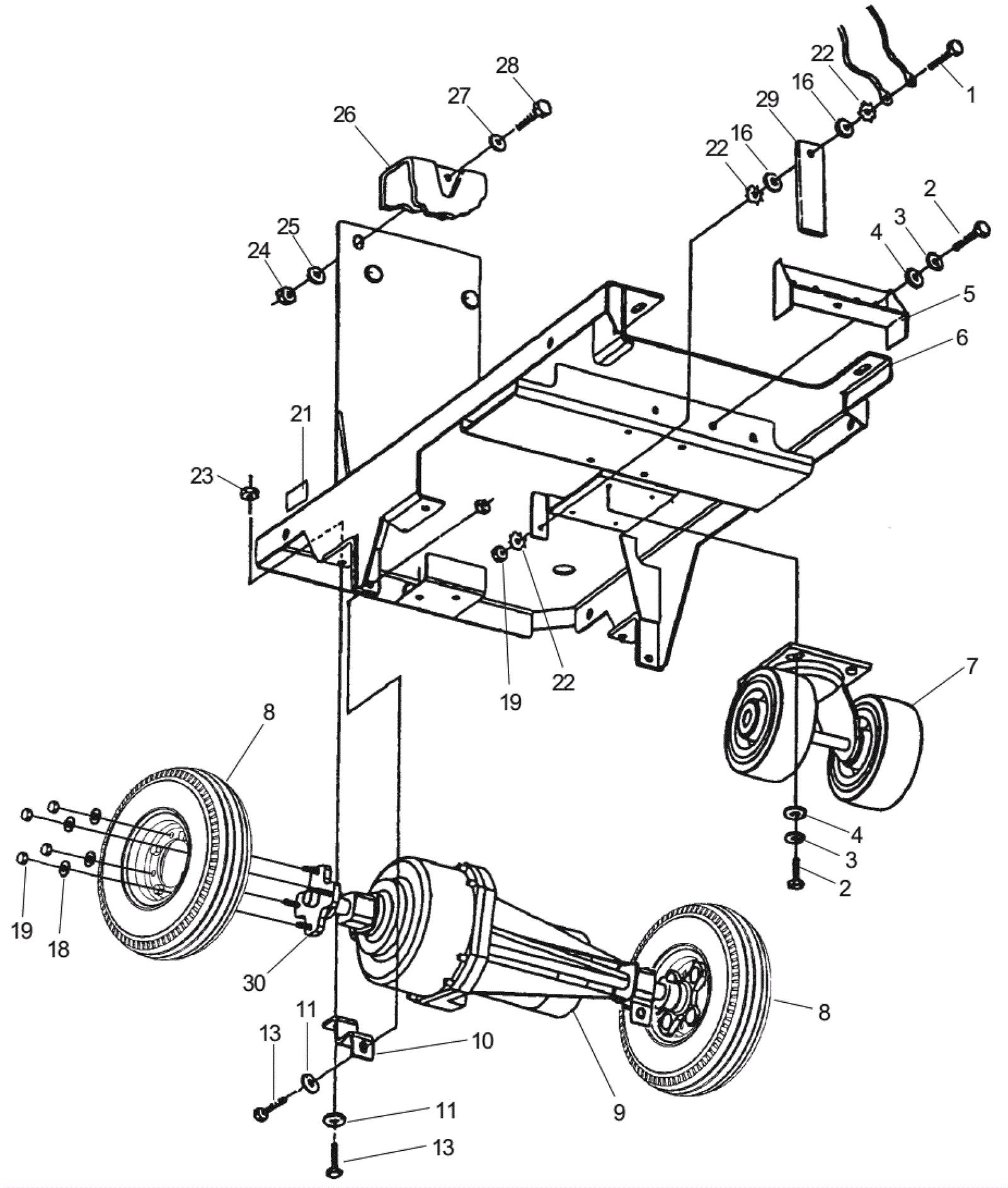

BOOST 28 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 1 ships same day
2 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 6 ships same day
3 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
5 170-1916 Squeegee mount $77.24 1 usually ships 16-41 days
6 170-1917 Frame assembly (OBSOLETE) $873.18 1 usually ships 1-5 days
7 170-1918 Caster assembly $186.96 1 usually ships 16-41 days
8 170-1923 Wheel assembly (OBSOLETE) $507.58 2 usually ships 16-41 days
9 170-1924 Transaxle with mounting hubs $3,273.31 1 usually ships 1-5 days
10 170-1925 Transaxle mount (OBSOLETE) $36.96 2 usually ships 1-5 days
11 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
13 999-0850 Bolt 3/8-24 x 1 hex head grade 5 plain finish $0.99 4 ships same day
16 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 2 ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
19 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 9 ships same day
21 170-1922 Tie down label (OBSOLETE) $9.79 4 usually ships 1-5 days
22 999-0017 Washer 1/4 external star lock $0.99 5 ships same day
23 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 4 ships same day
24 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
25 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
26 N/A Not available Call for price 1 (solution tank) usually ships 3-26 days
27 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
28 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
29 170-7146 Static strap $13.40 1 usually ships 16-41 days
30 170-1921 Transaxle hub (OBSOLETE) $203.50 1 usually ships 16-41 days
N/S 999-0659 Washer 3/8 medium split lock stainless steel $0.39 4 ships same day
N/S 170-1324 Snap ring $9.58 2 usually ships 4-15 days
N/S 170-1754 Washer M1 flat nylon $11.99 2 usually ships 16-41 days
N/S 999-1186 Screw 5/16-24 x 3/4 hex head $11.99 2 ships same day
