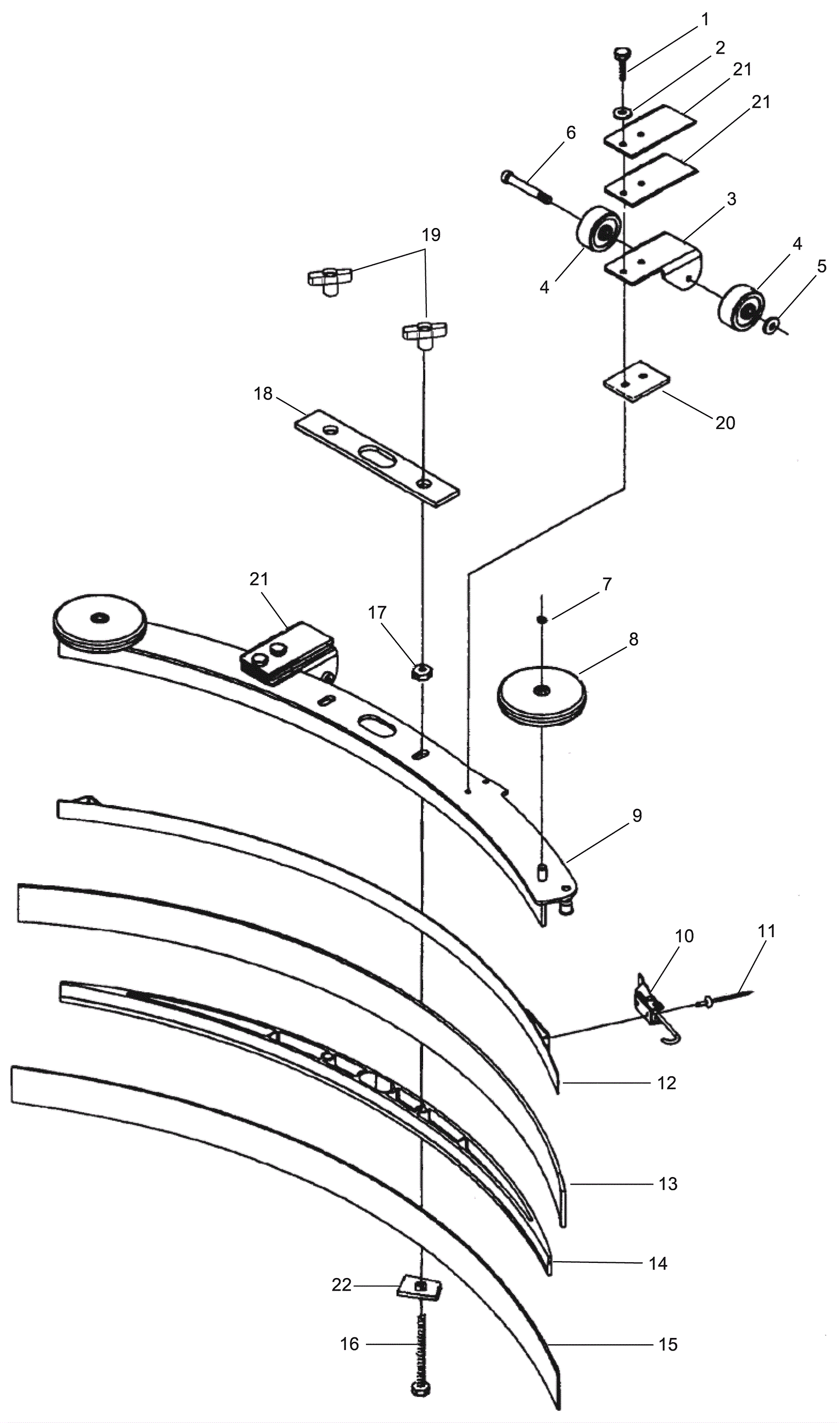

BOOST 28 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1a 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
1b 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel $0.99 4 ships same day
2 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
3 170-7168 Squeegee wheel bracket $80.75 2 usually ships 13-18 days
4 170-7169 Squeegee wheel $17.17 4 usually ships 13-18 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
6 170-7170 Bolt 5/16 x 2 1/4 shoulder $5.50 2 ships same day
7 170-7171 3/8 inch snap ring $12.89 2 usually ships 13-18 days
8 170-7172 4 inch guide wheel $35.75 2 ships same day
9 170-7161 39 inch squeegee weldment $489.15 1 usually ships 13-18 days
10 170-7162 Clamp latch $74.32 1 usually ships 13-18 days
11 170-7163 Aluminum rivet $1.21 2 usually ships 12-15 days
12 170-7164 39 inch retainer clamp strap $168.42 1 usually ships 13-18 days
13 170-8920 Squeegee blade 43 1/2 inch linatex rear (red) $28.94 1 ships same day
14 170-7159 39 inch squeegee spacer $51.96 1 usually ships 13-18 days
15 170-8919 Squeegee blade 39 inch linatex notched rear $22.58 1 ships same day
16 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized $2.82 2 ships same day
17 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 2 ships same day
18 170-0164 Gasket $11.35 1 usually ships 13-18 days
19 170-0171 Knob $34.00 2 ships same day
20 170-7177 Shim $12.89 2 usually ships 13-18 days
21 170-7338 Squeegee weight $15.17 8 usually ships 13-18 days
22 170-3394 Back up nut $22.58 2 usually ships 13-18 days
