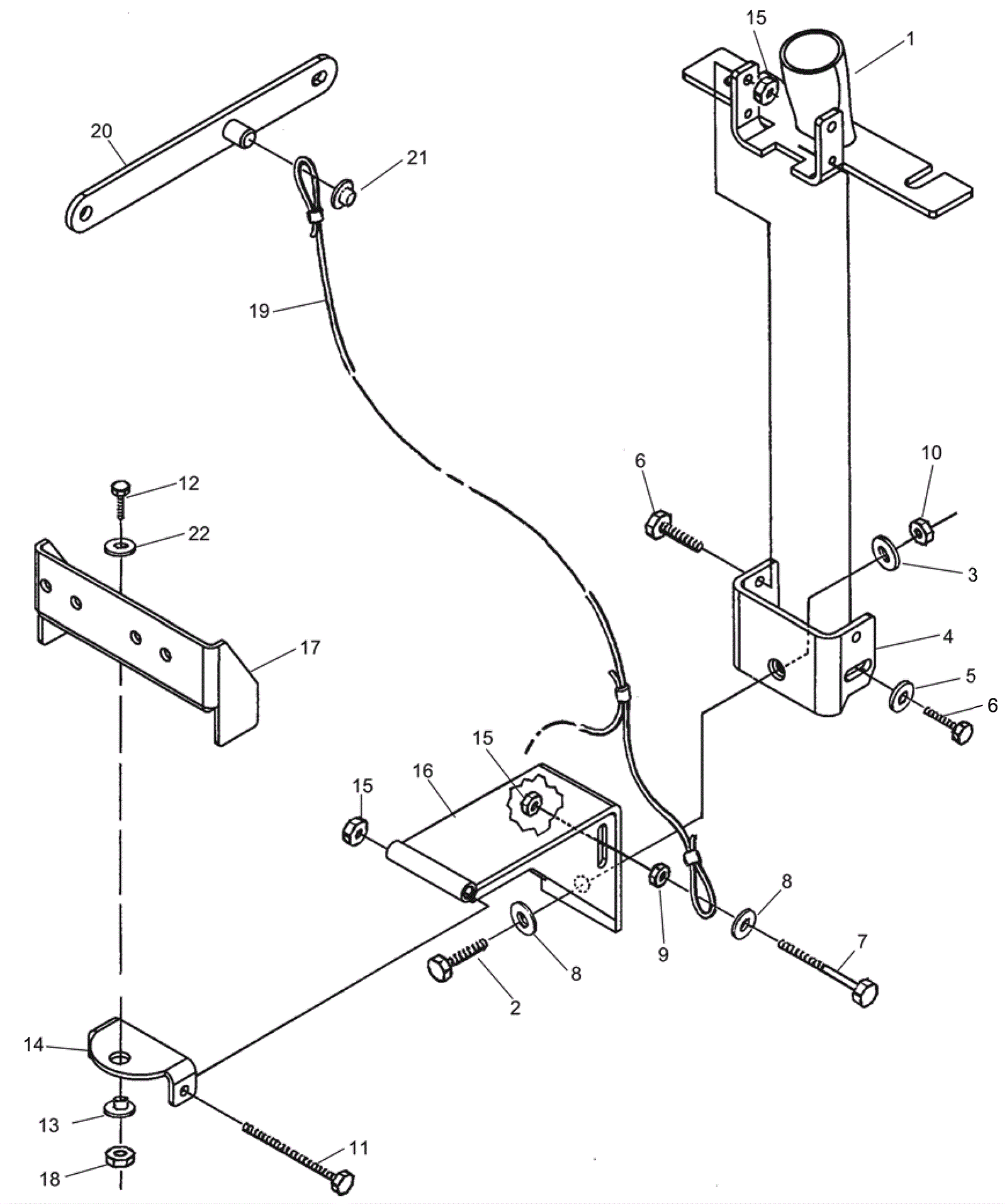

BOOST 28 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-1847 Tube bracket $64.23 1 usually ships 16-41 days
2 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 1 ships same day
3 999-0659 Washer 3/8 medium split lock stainless steel $0.39 1 ships same day
4 170-1846 Weldment bracket $116.92 1 usually ships 16-41 days
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
6 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
7 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
8 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 3 ships same day
9 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
10 170-1838 Nut 3/8-16 hex elastic lock $14.51 1 usually ships 16-41 days
11 170-9056 Screw 1/4-20 x 3 1/4 stainless steel $11.75 1 usually ships 1-5 days
12 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 1 ships same day
13 170-1760 Spacer $11.99 1 usually ships 1-5 days
14 170-1956 Pivot arm (OBSOLETE) $42.90 1 usually ships 16-41 days
15 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
16 170-1957 Squeegee bracket $261.64 1 usually ships 16-41 days
17 170-1916 Squeegee mount $77.24 1 usually ships 16-41 days
18 999-0593 Nut 5/16-18 hex stainless steel $0.99 1 ships same day
19 170-1929 Squeegee lift cable (OBSOLETE) $94.53 usually ships 16-41 days
20 170-9052 Squeegee lift lever $96.80 usually ships 1-5 days
21 170-6076 Pal nut $10.56 usually ships 16-41 days
22 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
