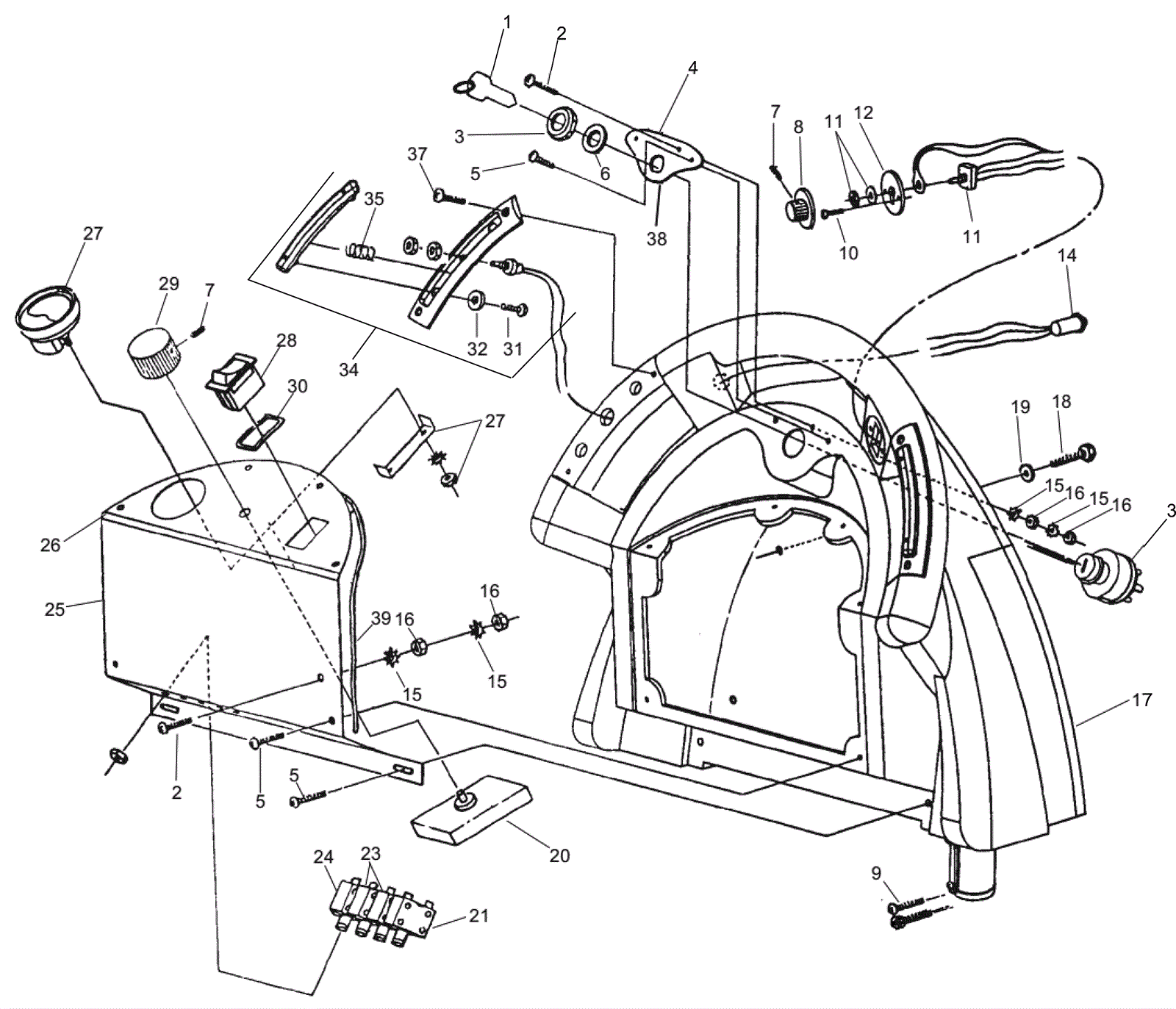

BOOST 28 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-0046 Key $11.00 usually ships 1-5 days
2 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 2 ships same day
3 170-0053 Key switch with 2 keys $94.53 1 (includes 1) usually ships 16-41 days
4 170-1875 Key switch panel $26.58 1 usually ships 1-5 days
5 999-0849 Screw 10-24 x 1/2 round head slotted nylon $0.99 8 ships same day
6 170-7051 Washer nylon $3.45 1 usually ships 4-15 days
7 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 4 ships same day
8 170-1876 Traverse control knob $48.32 1 usually ships 16-41 days
9 999-1229 Bolt 3/8-16 x 1 1/2 tap head full thread grade 5 zinc plated $0.99 1 usually ships 11-24 days
10 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 2 ships same day
11 170-1877 Potentiometer harness assembly $402.90 1 usually ships 16-41 days
12 170-1878 Traverse switch bracket (OBSOLETE) $17.05 1 usually ships 16-41 days
14 170-1879 Reverse switch $85.24 1 usually ships 16-41 days
15 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
16 999-0460 Nut 10-32 hex $0.99 4 ships same day
17 170-9058 Control handle $253.00 usually ships 1-5 days
18 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 ships same day
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 ships same day
20 170-9059 Solution control (OBSOLETE) $464.93 1 usually ships 1-5 days
21 991-1632 25amp circuit breaker $7.91 1 usually ships 14-30 days
23a 170-9060 30amp circuit breaker $30.28 2 usually ships 1-5 days
23b 991-1625 30amp circuit breaker $12.61 2 (NON-OEM) ships same day
24 991-1627 5amp circuit breaker $20.87 1 usually ships 1-5 days
25 170-5183 Control decal (OBSOLETE) Call for price 1 usually ships 16-41 days
26 170-9062 Metal control panel (OBSOLETE) $97.90 1 usually ships 1-5 days
27 170-1715 Battery meter $164.00 1 usually ships 16-41 days
28 170-0058 Rocker switch 2 position 6 prong $41.37 1 usually ships 4-15 days
29 170-8261 Knob solution flow module $34.66 1 (includes 7) usually ships 16-41 days
30 170-1890 Switch gasket $9.35 1 usually ships 1-5 days
31 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 4 ships same day
32 999-0412 Washer #8 SAE flat $0.99 4 ships same day
34 170-1885 Switch lever housing $52.69 2 (includes 31-32, 35) ships same day
35 170-1887 Switch spring $11.69 4 usually ships 1-5 days
37 999-0851 Screw 10-32 x 1/2 round head slotted nylon $0.99 4 ships same day
38 170-1889 Key switch label (OBSOLETE) $7.72 1 usually ships 1-5 days
39 170-0059 Gasket $3.28 1 usually ships 1-5 days
N/S 272-2814 1/4 inch spade terminal $13.40 4 usually ships 1-5 days
N/S 270-0219 24V I-Drive relay $15.07 1 usually ships 16-41 days
N/S 999-0201 Washer 3/8 internal star lock $0.99 1 ships same day
