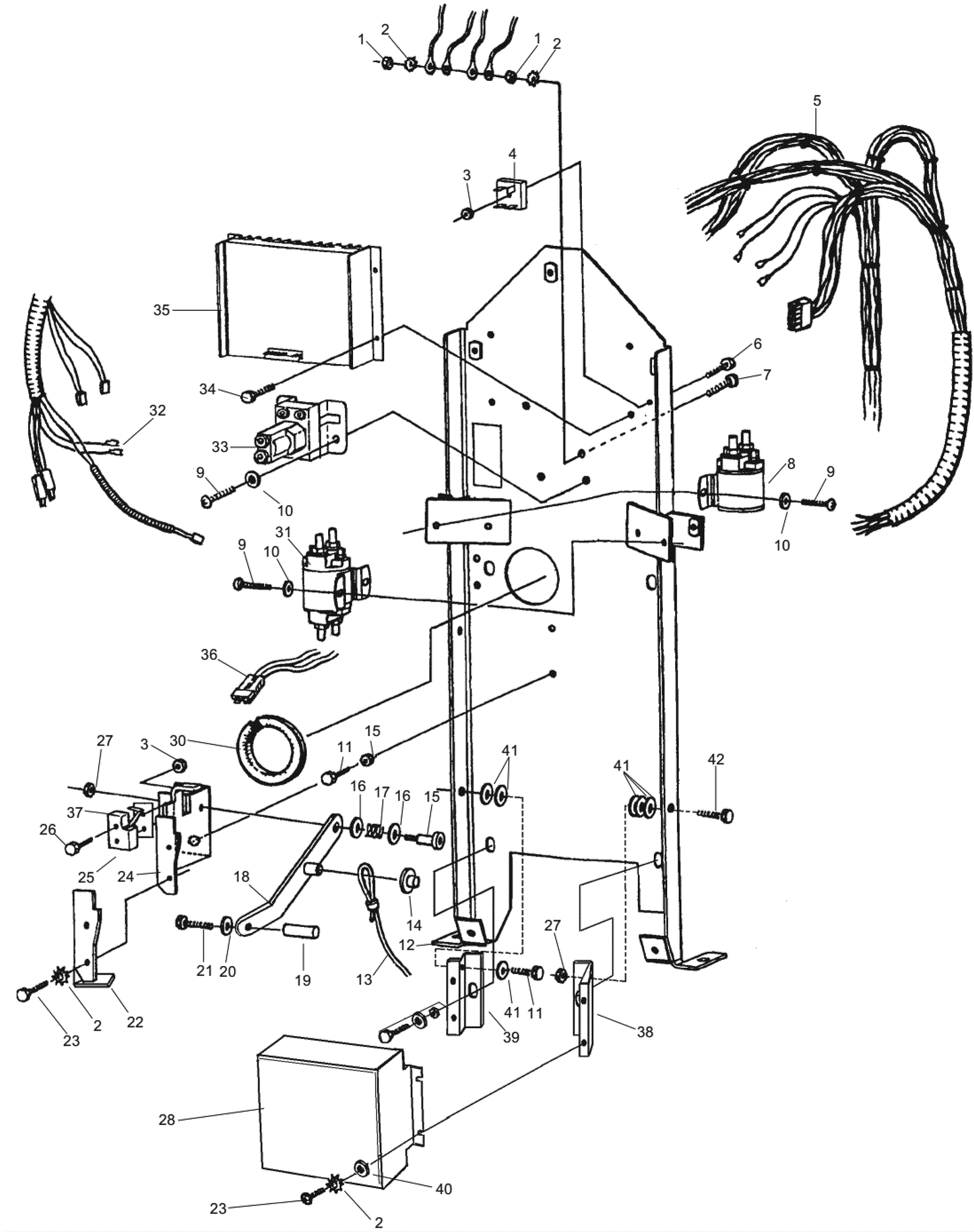

BOOST 28 Rear Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0460 Nut 10-32 hex $0.99 2 ships same day
2 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
3 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
4 372-0079 Rectifier $51.28 1 usually ships 16-41 days
5 170-9051 Power harness (OBSOLETE) $177.65 1 usually ships 1-5 days
6 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 3 ships same day
7 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 1 ships same day
8a 172-2163 24V solenoid 4 post (2 large 2 small) $122.72 1 ships same day
8b 991-1226 24V solenoid 4 post (2 large 2 small) $54.00 1 (NON-OEM) usually ships 6-7 days
9 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 6 ships same day
10 999-0017 Washer 1/4 external star lock $0.99 10 ships same day
11 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 5 ships same day
12 170-1928 Rear metal panel (OBSOLETE) $322.30 1 usually ships 1-5 days
13 170-1929 Squeegee lift cable (OBSOLETE) $94.53 1 usually ships 16-41 days
14 170-6076 Pal nut $10.56 1 usually ships 16-41 days
15 999-0813 Bolt 5/16-18 x 1 x 1/4-20 socket head shoulder $8.69 1 ships same day
16 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
17 170-0113 Spring (OBSOLETE) $10.56 1 usually ships 16-41 days
18a 170-9052 Squeegee lift lever $96.80 1 (on-board charger) usually ships 1-5 days
18b 170-1805 Lift lever $66.96 1 (remote charger) usually ships 16-41 days
19 170-0110 Squeegee lift handle $34.23 1 usually ships 16-41 days
20 999-0201 Washer 3/8 internal star lock $0.99 1 ships same day
21 999-0587 Screw 3/8-16 x 5/8 round head slotted zinc $0.99 1 ships same day
22a 170-9053 Vacuum plate $47.45 1 (on-board charger) usually ships 1-5 days
22b 170-0121 Wear plate (OBSOLETE) $28.74 1 (remote charger) usually ships 16-41 days
23 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 6 ships same day
24 170-1804 Lift bracket (OBSOLETE) $246.26 1 usually ships 16-41 days
25 170-0111 Vacuum switch assembly (OBSOELTE) $127.07 1 usually ships 16-41 days
26 999-0974 Screw 6-32 x 1 1/4 pan head phillips stainless steel $7.92 2 ships same day
27 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
28 272-2358 24V onboard battery charger $1,228.89 1 (on-board charger) usually ships 16-41 days
30 170-7070 Gasket $11.99 usually ships 16-41 days
31 170-1931 Main solenoid contactor $156.64 1 ships same day
32 170-1932 Traverse harness $150.78 1 usually ships 1-5 days
33 170-1933 Vacuum solenoid $68.46 1 usually ships 16-41 days
34 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
35 170-1934 Traverse control $1,059.12 1 usually ships 16-41 days
36 270-0019 Cable (OBSOLETE) $70.27 1 (on-board charger) usually ships 1-5 days
37 170-1935 Mylar insulator (OBSOLETE) $7.52 1 usually ships 1-5 days
38 170-9054 Right hand charger mount bracket (OBSOLETE) $147.61 1 (on-board charger) usually ships 1-5 days
39 170-9055 Left hand charger mount bracket (OBSOLETE) $152.02 1 (on-board charger) usually ships 1-5 days
40 999-0998 Washer #10 flat stainless steel $0.99 4 (on-board charger) ships same day
41 999-0016 Washer 1/4 flat plain finish $0.99 6 (on-board charger) ships same day
42 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 1 (on-board charger) ships same day
N/S 170-0230 Falling parts warning decal $16.50 1 usually ships 1-5 days
N/S 170-0229 Battery warning decal $16.50 1 usually ships 1-5 days
