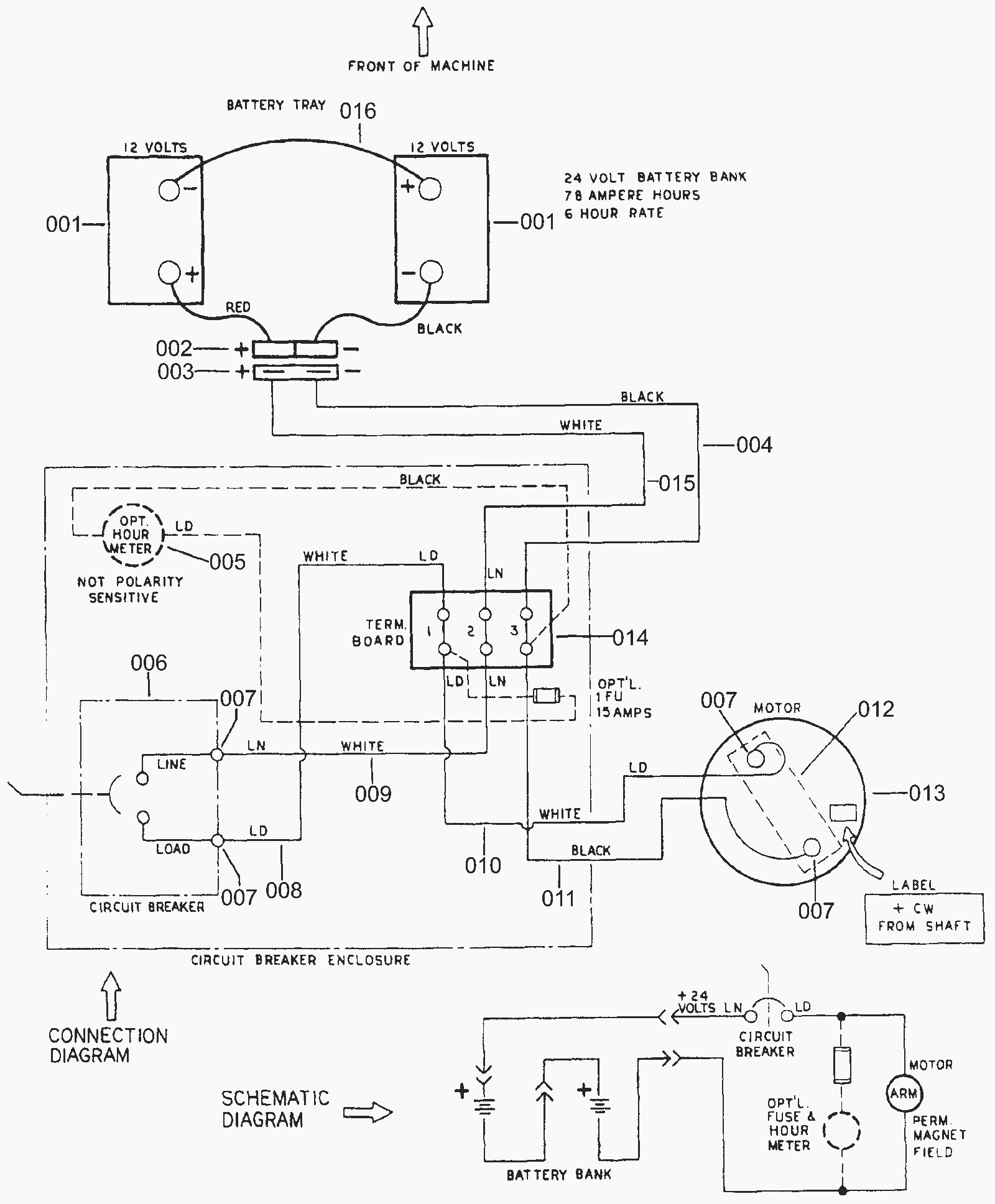

SPS 28B Wiring Diagram 4-99

#PartDescriptionPriceReqNotesAvailability
001b 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 Dry ships same day
002 170-6257 Battery cable assy (OBSOLETE) $73.06 1 usually ships 1-5 days
003 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 usually ships 5-16 days
004 170-6614 Wire assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
005 170-6615 Hour meter (OBSOLETE) $132.12 1 Optional usually ships 1-5 days
006 170-6445 Toggle switch $236.28 1 usually ships 1-5 days
007 999-0017 Washer 1/4 external star lock $0.99 4 ships same day
008 170-6616 Wire assembly 10 (OBSOLETE) $8.07 1 White usually ships 1-5 days
009 170-6617 Wire assembly 10 (OBSOLETE) $11.53 1 White usually ships 1-5 days
010 170-6618 Terminal board meter wire assembly (OBSOLETE) $12.60 1 usually ships 1-5 days
011 170-6619 Wire assembly 10 (OBSOLETE) $28.39 1 Black usually ships 1-5 days
012 170-6454 Paper insulation (OBSOLETE) $3.82 1 usually ships 1-5 days
013 170-6453 24 Volt D.C. motor drive (OBSOLETE) $1,836.30 1 usually ships 1-5 days
014 170-6444 Terminal block (OBSOLETE) $21.68 1 usually ships 1-5 days
015 170-6620 Wire assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
016 170-0224 Battery cable $36.07 1 usually ships 16-41 days
001a 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 Wet ships same day
001a 162-0042 12V 115Ah AGM battery (Group 31) $500.50 2 Wet usually ships 4-19 days
