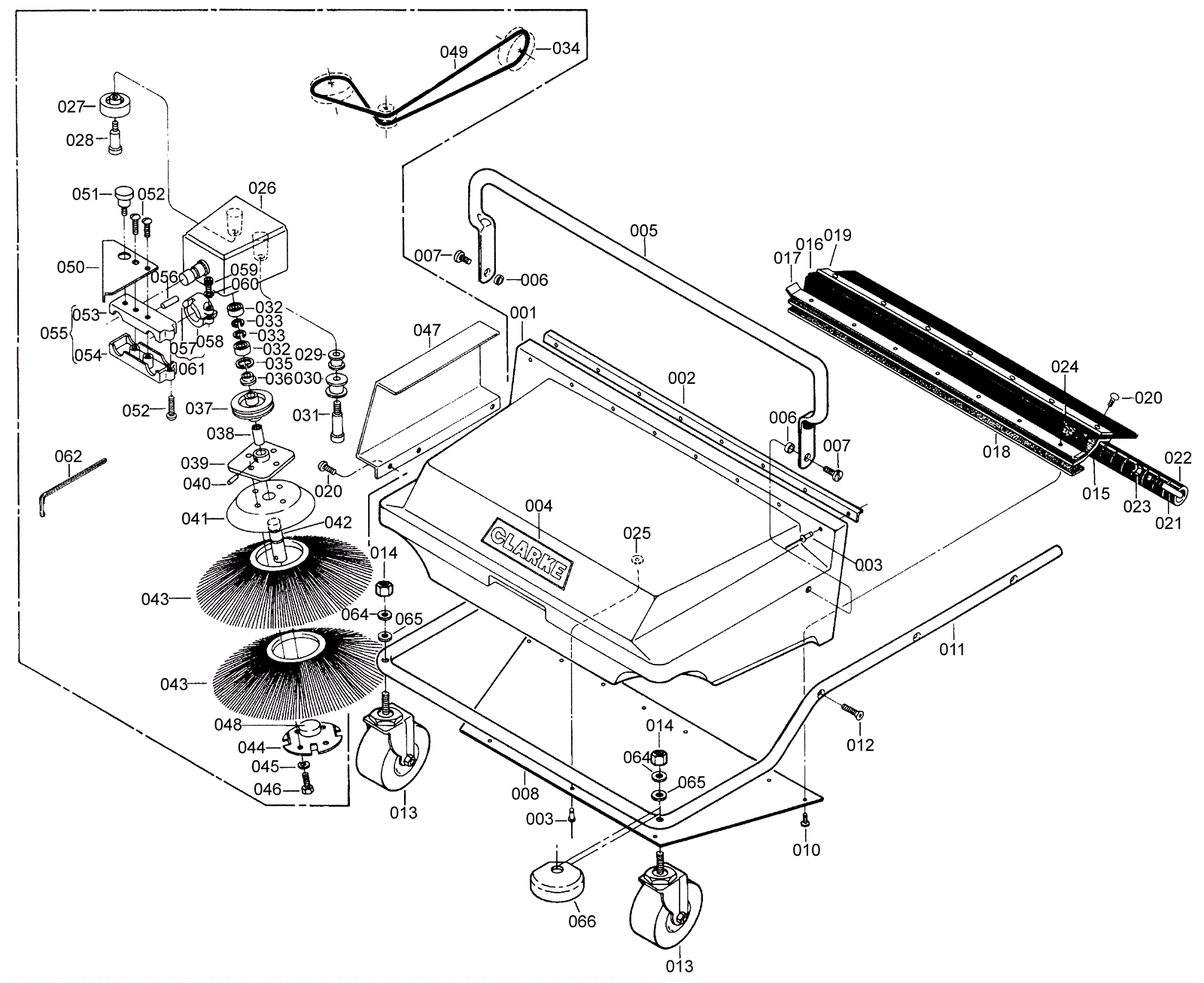

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-6607
|
Hopper (OBSOLETE) |
1 |
|
|
002 |
170-6606
|
Hopper top support (OBSOLETE) |
1 |
|
|
003 |
170-1901
|
Rivet 5/32 x 9/16 |
8 |
|
|
004 |
170-0497
|
Clarke decal |
1 |
|
|
005 |
170-6570
|
Hopper handle (OBSOLETE) |
1 |
|
|
006 |
170-6571
|
Carrying handle spacer (OBSOLETE) |
2 |
|
|
007 |
170-6572
|
Screw 5/16-18 x 1/2 flat head (OBSOLETE) |
2 |
|
|
008 |
170-6573
|
Hopper shield (OBSOLETE) |
1 |
|
|
009 |
999-0071
|
Screw 10-24 x 1/2 flat head slotted zinc plated |
3 |
|
|
010 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
8 |
|
|
011a |
170-6574
|
Front bumper (OBSOLETE) |
1 |
|
|
011b |
170-6604
|
Bumper (OBSOLETE) |
1 |
Carpet only |
|
012 |
999-9074
|
Screw 5/16-18 x 1 1/2 flat head stainless steel |
6 |
|
|
013 |
170-3295
|
Caster assembly |
2 |
|
|
014 |
999-0050
|
Nut 1/2-13 hex jam plain finish |
2 |
|
|
015 |
170-6575
|
Skirt to hopper bracket (OBSOLETE) |
1 |
|
|
016 |
170-6576
|
Hopper skirt (OBSOLETE) |
1 |
|
|
017 |
170-6577
|
Lower skirt retainer (OBSOLETE) |
1 |
|
|
018 |
170-6281
|
Hopper gasket (OBSOLETE) |
1 |
|
|
019 |
170-6578
|
Hopper skirt retainer (OBSOLETE) |
1 |
|
|
020 |
170-6579
|
Screw 10 x 1/2 round head type Z (OBSOLETE) |
11 |
|
|
021 |
170-6580
|
Roller rod (OBSOLETE) |
1 |
|
|
022 |
170-6581
|
Roller (OBSOLETE) |
26 |
|
|
023 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
2 |
|
|
024 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
025 |
999-0062
|
Nut 10-24 hex |
3 |
|
|
026 |
170-6608
|
Side brush housing (OBSOLETE) |
1 |
|
|
027 |
170-0165
|
Wheel (OBSOLETE) |
1 |
|
|
028 |
170-4586
|
Bolt 3/8 x 1 shoulder |
1 |
|
|
029 |
170-6583
|
Pulley (OBSOLETE) |
1 |
|
|
031 |
999-1365
|
Bolt 3/8 x 1 1/2 shoulder stainless steel |
1 |
|
|
032 |
170-3292
|
Ball bearing (OBSOLETE) |
2 |
|
|
033 |
170-5614
|
Retaining Ring |
2 |
|
|
034 |
170-6510
|
Side broom drive pulley (OBSOLETE) |
1 |
|
|
035 |
170-0652
|
Retaining ring (OBSOLETE) |
1 |
|
|
036 |
170-6585
|
Spacer (OBSOLETE) |
1 |
|
|
037 |
170-6586
|
Side brush drive pulley (OBSOLETE) |
1 |
|
|
038 |
170-6587
|
Clutch (OBSOLETE) |
1 |
|
|
039 |
170-6588
|
Side brush hub (OBSOLETE) |
1 |
|
|
040 |
170-6589
|
Roll pin |
1 |
|
|
041 |
170-6590
|
Side brush holder (OBSOLETE) |
1 |
|
|
042 |
170-6591
|
Shaft (OBSOLETE) |
1 |
|
|
043 |
170-6274
|
Side broom (OBSOLETE) |
2 |
|
|
044 |
170-6592
|
Brush retaining plate (OBSOLETE) |
1 |
|
|
045 |
999-0060
|
Washer 1/4 split lock plain finish |
5 |
|
|
046 |
999-0432
|
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
4 |
|
|
047 |
170-6593
|
Side broom belt guard (OBSOLETE) |
1 |
|
|
048 |
170-6594
|
Spacer (OBSOLETE) |
1 |
|
|
049 |
170-6595
|
Side brush round belt (OBSOLETE) |
1 |
|
|
050 |
170-6597
|
Side guard brush (OBSOLETE) |
1 |
|
|
051 |
170-6598
|
Knob (OBSOLETE) |
1 |
|
|
052 |
170-6599
|
Screw 1/4 - 20 x 1 1/2 (OBSOLETE) |
2 |
|
|
053 |
170-6600
|
Side brush arm assembly (OBSOLETE) |
1 |
This part is no longer available alone. You must purchase this kit. |
|
055 |
170-6600
|
Side brush arm assembly (OBSOLETE) |
1 |
|
|
056 |
170-6601
|
Pin 1/4 x 3/4 (OBSOLETE) |
1 |
|
|
057 |
170-6602
|
Top clamp (OBSOLETE) |
1 |
|
|
058 |
170-6612
|
Bottom clamp (OBSOLETE) |
1 |
|
|
059 |
170-9997
|
Screw 1/4 -20 x 1 standard head |
2 |
|
|
060 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
061 |
170-6602
|
Top clamp (OBSOLETE) |
1 |
|
|
062 |
170-6603
|
Wrench 3/16 (OBSOLETE) |
1 |
|
|
064 |
999-0126
|
Washer 1/2 split lock |
2 |
|
|
065 |
170-1422
|
Washer |
2 |
Carpet only |
|
066 |
N/A
|
Not available |
2 |
Caster guard |
|
