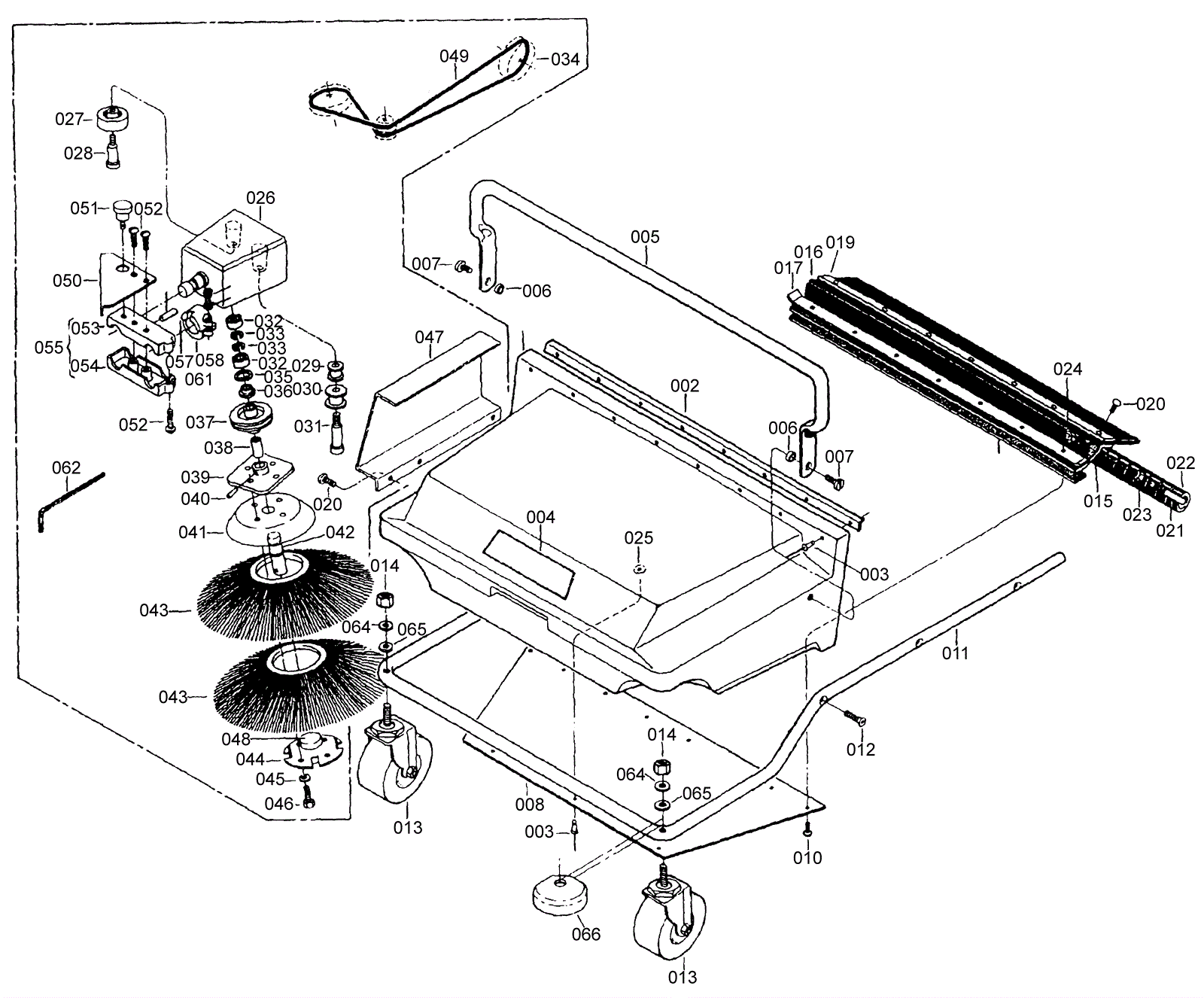

SPS 28B Hopper and Optional Sidebroom Assembly 4-99

#PartDescriptionPriceReqNotesAvailability
001 170-6568 Hopper (OBSOLETE) $321.95 1 usually ships 1-5 days
002 170-6606 Hopper top support (OBSOLETE) $40.70 1 usually ships 1-5 days
003 170-1901 Rivet 5/32 x 9/16 $10.56 8 usually ships 1-5 days
004 170-0497 Clarke decal $16.50 1 usually ships 16-41 days
005 170-6570 Hopper handle (OBSOLETE) $101.70 1 usually ships 1-5 days
006 170-6571 Carrying handle spacer (OBSOLETE) $13.78 2 usually ships 1-5 days
007 170-6572 Screw 5/16-18 x 1/2 flat head (OBSOLETE) $2.06 2 usually ships 1-5 days
008 170-6573 Hopper shield (OBSOLETE) $72.35 1 usually ships 1-5 days
009 999-0071 Screw 10-24 x 1/2 flat head slotted zinc plated $0.99 3 ships same day
010 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 8 ships same day
011a 170-6574 Front bumper (OBSOLETE) $210.28 1 usually ships 1-5 days
011b 170-6604 Bumper (OBSOLETE) $288.72 1 Carpet only usually ships 1-5 days
012 999-9074 Screw 5/16-18 x 1 1/2 flat head stainless steel $0.99 1 ships same day
013 170-3295 Caster assembly $47.85 2 usually ships 1-5 days
014 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
015 170-6575 Skirt to hopper bracket (OBSOLETE) $71.87 1 usually ships 1-5 days
016 170-6576 Hopper skirt (OBSOLETE) $14.85 1 usually ships 1-5 days
017 170-6577 Lower skirt retainer (OBSOLETE) $46.93 1 usually ships 1-5 days
018 170-6281 Hopper gasket (OBSOLETE) $7.01 1 usually ships 1-5 days
019 170-6578 Hopper skirt retainer (OBSOLETE) $16.57 1 usually ships 1-5 days
020 170-6579 Screw 10 x 1/2 round head type Z (OBSOLETE) $5.50 11 usually ships 1-5 days
021 170-6580 Roller rod (OBSOLETE) $73.06 1 usually ships 1-5 days
022 170-6581 Roller (OBSOLETE) $11.76 26 usually ships 1-5 days
023 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
024 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
025 999-0062 Nut 10-24 hex $0.99 ships same day
026 170-6608 Side brush housing (OBSOLETE) $273.24 1 usually ships 1-5 days
027 170-0165 Wheel (OBSOLETE) $16.50 1 usually ships 16-41 days
028 170-4586 Bolt 3/8 x 1 shoulder $9.27 1 usually ships 1-5 days
029 170-6583 Pulley (OBSOLETE) $12.60 1 usually ships 1-5 days
030 170-6584 Pulley (OBSOLETE) $8.91 1 usually ships 1-5 days
031 170-3415 Shoulder bolt $13.22 1 usually ships 1-5 days
032 170-3292 Ball bearing (OBSOLETE) $24.95 1 usually ships 1-5 days
033 170-5614 Retaining Ring $8.61 2 usually ships 4-15 days
034 170-6510 Side broom drive pulley (OBSOLETE) $55.84 1 usually ships 1-5 days
035 170-0652 Retaining ring (OBSOLETE) $7.70 1 usually ships 1-5 days
036 170-6585 Spacer (OBSOLETE) $13.66 1 usually ships 1-5 days
037 170-6586 Side brush drive pulley (OBSOLETE) $12.35 1 usually ships 1-5 days
038 170-6587 Clutch (OBSOLETE) $36.23 1 usually ships 1-5 days
039 170-6588 Side brush hub (OBSOLETE) $68.66 1 usually ships 1-5 days
040 170-6589 Roll pin $10.52 1 usually ships 1-5 days
041 170-6590 Side brush holder (OBSOLETE) $14.61 1 usually ships 1-5 days
042 170-6591 Shaft (OBSOLETE) $107.99 1 usually ships 1-5 days
043 170-6274 Side broom (OBSOLETE) $55.24 2 usually ships 1-5 days
044 170-6592 Brush retaining plate (OBSOLETE) $24.35 1 usually ships 1-5 days
045 999-0060 Washer 1/4 split lock plain finish $0.99 5 ships same day
046 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated $0.99 4 ships same day
047 170-6593 Side broom belt guard (OBSOLETE) $53.46 1 usually ships 1-5 days
048 170-6594 Spacer (OBSOLETE) $8.44 1 usually ships 1-5 days
049 170-6595 Side brush round belt (OBSOLETE) $57.62 1 usually ships 16-41 days
050 170-6597 Side guard brush (OBSOLETE) $38.14 1 usually ships 1-5 days
051 170-6598 Knob (OBSOLETE) $33.37 1 usually ships 1-5 days
052 170-6599 Screw 1/4 - 20 x 1 1/2 (OBSOLETE) $2.78 2 usually ships 1-5 days
053 170-6600 Side brush arm assembly (OBSOLETE) $109.30 1 usually ships 1-5 days
054 170-6600 Side brush arm assembly (OBSOLETE) $109.30 1 usually ships 1-5 days
055 170-6600 Side brush arm assembly (OBSOLETE) $109.30 1 usually ships 1-5 days
056 170-6601 Pin 1/4 x 3/4 (OBSOLETE) Call for price 1 usually ships 1-5 days
057 170-6602 Top clamp (OBSOLETE) $119.39 1 usually ships 1-5 days
058 170-6602 Top clamp (OBSOLETE) $119.39 1 usually ships 1-5 days
059 170-9997 Screw 1/4 -20 x 1 standard head $2.57 2 usually ships 1-5 days
060 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
061 170-6602 Top clamp (OBSOLETE) $119.39 1 usually ships 1-5 days
062 170-6603 Wrench 3/16 (OBSOLETE) $2.93 1 usually ships 1-5 days
064 999-0126 Washer 1/2 split lock $1.28 2 ships same day
065 170-1422 Washer $1.21 2 Carpet only usually ships 1-5 days
066 N/A Not available Call for price 2 Caster guard usually ships 3-26 days
