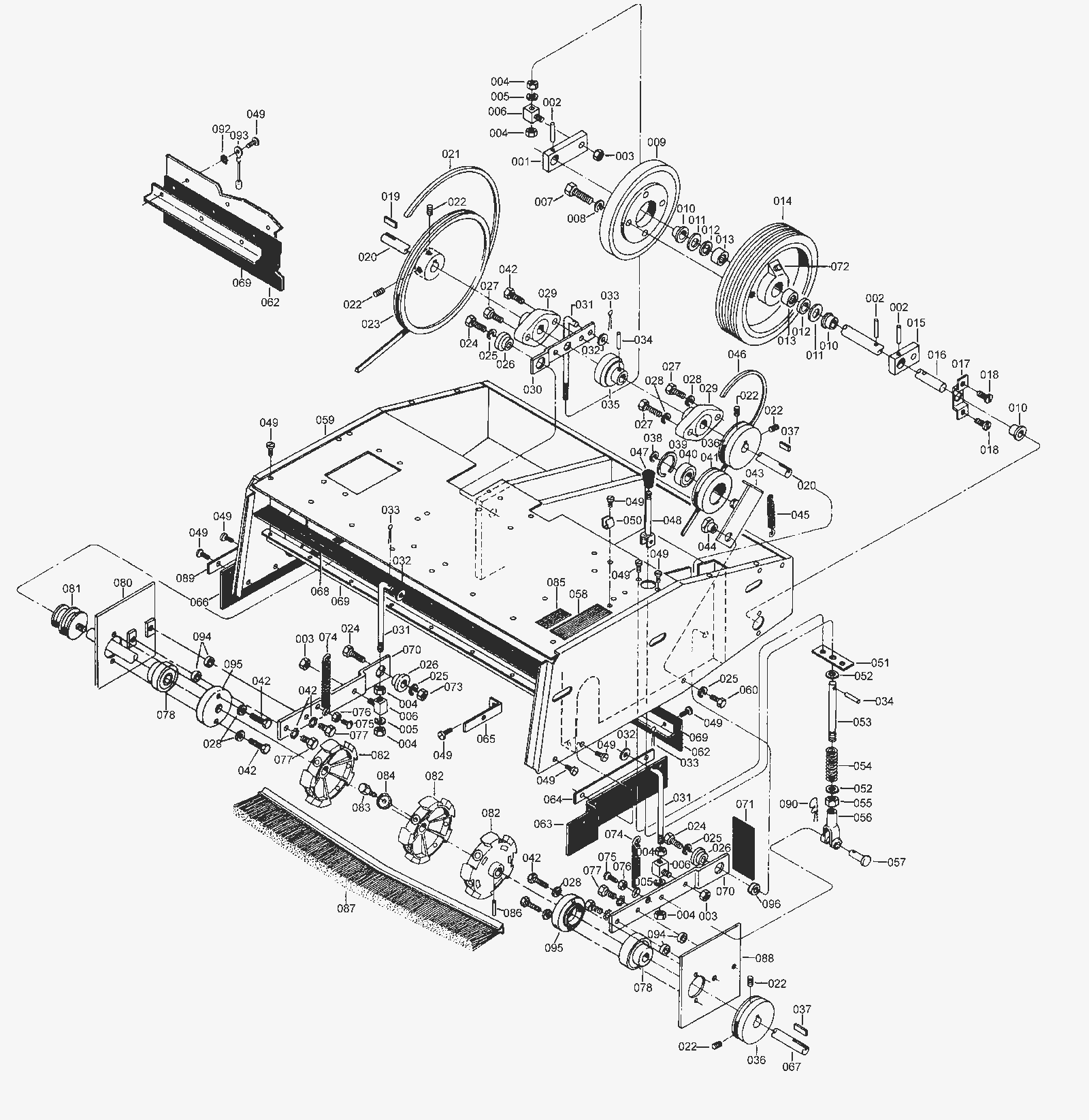

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-6467
|
Right hand lower clutch arm (OBSOLETE) |
1 |
|
|
002 |
170-6468
|
Roll pin 1/8 x 1 1/4 |
3 |
|
|
003 |
170-0465
|
Nut 1/4-20 ESNA heavy jam |
3 |
|
|
004 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
6 |
|
|
005 |
170-0028
|
Solution control cable assembly |
3 |
|
|
006 |
170-6469
|
Pedal pivot block (OBSOLETE) |
3 |
|
|
007 |
170-0031
|
Brush holder spring |
4 |
|
|
008 |
999-0028
|
Washer 5/16 split lock plain finish |
8 |
|
|
009 |
170-6470
|
Friction driven wheel (OBSOLETE) |
1 |
|
|
010 |
170-6471
|
Wheel shaft bearing (OBSOLETE) |
3 |
|
|
011 |
170-6472
|
Thrust washer (OBSOLETE) |
2 |
|
|
012 |
170-6473
|
Oil seal (OBSOLETE) |
2 |
|
|
013 |
170-6474
|
Wheel bearing |
2 |
|
|
014 |
170-6273
|
Drive wheel assembly (OBSOLETE) |
1 |
|
|
015 |
170-6475
|
Left hand lower clutch arm (OBSOLETE) |
1 |
|
|
016 |
170-6476
|
Wheel shaft (OBSOLETE) |
1 |
|
|
017 |
170-6477
|
Wheel bearing support (OBSOLETE) |
1 |
|
|
018 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
2 |
|
|
019 |
170-1679
|
Square keyway |
1 |
|
|
020 |
170-6478
|
Brush drive shaft (OBSOLETE) |
1 |
|
|
021 |
170-3293
|
Belt (OBSOLETE) |
1 |
|
|
022 |
170-1588
|
Screw 5/16-18 x 3/8 set |
6 |
|
|
023 |
170-6479
|
Driven pulley (OBSOLETE) |
1 |
|
|
024 |
170-0350
|
Gearbox cage (OBSOLETE) |
2 |
|
|
025 |
170-0659
|
Machine support (OBSOLETE) |
4 |
|
|
026 |
170-6480
|
Parallel arn rear spacer (OBSOLETE) |
3 |
|
|
027 |
999-0300
|
Bolt 1/4-20 x 7/8 hex head grade 5 zinc plated |
2 |
|
|
028 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
029 |
170-1304
|
Bearing assembly |
2 |
|
|
030 |
170-6481
|
Clutch arm (OBSOLETE) |
1 |
|
|
031 |
170-6482
|
Brush lift rod (OBSOLETE) |
3 |
|
|
032 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
033 |
997-2500
|
Cotter pin |
3 |
|
|
034 |
170-5981
|
Roll pin 1/8 x 1 |
1 |
|
|
035 |
170-6483
|
Friction drive wheel (OBSOLETE) |
1 |
|
|
036 |
170-6484
|
Brush drive pulley (OBSOLETE) |
2 |
|
|
037 |
170-6485
|
Long square key 3/16 x 3/16 x 9/16 |
2 |
|
|
038 |
170-5614
|
Retaining Ring |
1 |
|
|
039 |
170-0652
|
Retaining ring (OBSOLETE) |
1 |
|
|
040 |
170-3292
|
Ball bearing (OBSOLETE) |
1 |
|
|
041 |
170-6486
|
Brush drive idler pulley (OBSOLETE) |
1 |
|
|
042 |
999-0561
|
Bolt 1/2-13 x 1 hex head stainless steel |
6 |
|
|
043 |
170-6487
|
Idler pulley arm assembly (OBSOLETE) |
1 |
|
|
044 |
170-6488
|
Clutch arm spacer (OBSOLETE) |
1 |
|
|
045 |
170-6489
|
Bracket adjusting screw spring |
1 |
|
|
046 |
170-6490
|
Brush drive belt |
1 |
|
|
047 |
170-3291
|
Knob (OBSOLETE) |
1 |
|
|
048 |
170-6491
|
Brush lift handle assembly (OBSOLETE) |
1 |
|
|
049 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
26 |
|
|
050 |
170-6069
|
Steel clip |
1 |
|
|
051 |
170-6492
|
Brush lift plate (OBSOLETE) |
1 |
|
|
052 |
170-3294
|
Bushing (OBSOLETE) |
2 |
|
|
053 |
170-6493
|
Brush lift rod (OBSOLETE) |
1 |
|
|
054 |
170-6494
|
Spring (OBSOLETE) |
1 |
|
|
055 |
999-0341
|
Nut 5/16-24 hex left hand plain finish |
1 |
|
|
056 |
170-6495
|
Yoke |
1 |
|
|
057 |
170-6496
|
Pin |
1 |
|
|
058 |
170-6497
|
Instruction label (OBSOLETE) |
1 |
|
|
059 |
170-6436
|
Main frame assembly (OBSOLETE) |
1 |
|
|
060 |
170-0631
|
Clamp hose (OBSOLETE) |
1 |
|
|
062 |
170-6498
|
Brush rear skirt (OBSOLETE) |
1 |
|
|
063 |
170-6499
|
Left hand skirt (OBSOLETE) |
1 |
|
|
064 |
170-6500
|
Left hand skirt retainer (OBSOLETE) |
1 |
|
|
065 |
170-6501
|
Left hand skirt retainer (OBSOLETE) |
1 |
|
|
066 |
170-6502
|
Right hand brush skirt (OBSOLETE) |
1 |
|
|
067 |
170-6503
|
Brush shaft (OBSOLETE) |
1 |
|
|
068 |
170-6504
|
Hopper top skirt (OBSOLETE) |
1 |
|
|
069 |
170-6505
|
Top skirt retainer (OBSOLETE) |
2 |
|
|
070 |
170-6506
|
Brush arm (OBSOLETE) |
2 |
|
|
071 |
170-6507
|
Brush arm seal (OBSOLETE) |
2 |
|
|
072 |
170-0016
|
Grease fitting |
1 |
|
|
073 |
999-0170
|
Nut 3/8-16 hex plain finish |
2 |
|
|
074 |
170-0068
|
Control handle spring (OBSOLETE) |
2 |
|
|
075 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
076 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
077 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
4 |
|
|
078 |
170-6508
|
Brush shaft bearing |
2 |
|
|
080 |
170-6509
|
Broom dust shield assembly (OBSOLETE) |
1 |
|
|
081 |
170-6510
|
Side broom drive pulley (OBSOLETE) |
1 |
|
|
082 |
170-6511
|
Brush drive (OBSOLETE) |
3 |
|
|
083 |
999-0300
|
Bolt 1/4-20 x 7/8 hex head grade 5 zinc plated |
15 |
|
|
084 |
170-6512
|
Retainer |
15 |
|
|
085 |
170-6513
|
Nut 1/4-20 speed (OBSOLETE) |
15 |
|
|
086 |
170-6514
|
Roll pin 1/4 x 1 1/2 |
3 |
|
|
087a |
170-6275
|
Center brush segment (10 required) (OBSOLETE) |
10 |
Carpet only |
|
087b |
170-6515
|
Polypropylene brush segment |
5 |
|
|
088 |
170-6516
|
Left hand broom dust shield assembly (OBSOLETE) |
1 |
|
|
089 |
170-6517
|
Right hand skirt retainer (OBSOLETE) |
1 |
|
|
090 |
170-0109
|
Cotter hairpin |
1 |
|
|
091 |
170-6518
|
Brush strip retainer (OBSOLETE) |
15 |
Standard machine only. Not illustrated |
|
092 |
154-3992
|
Washer 3/16 star |
1 |
|
|
093 |
170-3837
|
Static strap (OBSOLETE) |
1 |
|
|
094 |
170-6519
|
Spacer (OBSOLETE) |
2 |
|
|
095 |
170-6520
|
Retainer (OBSOLETE) |
2 |
|
|
096 |
170-6521
|
Spacer (OBSOLETE) |
2 |
|
|
