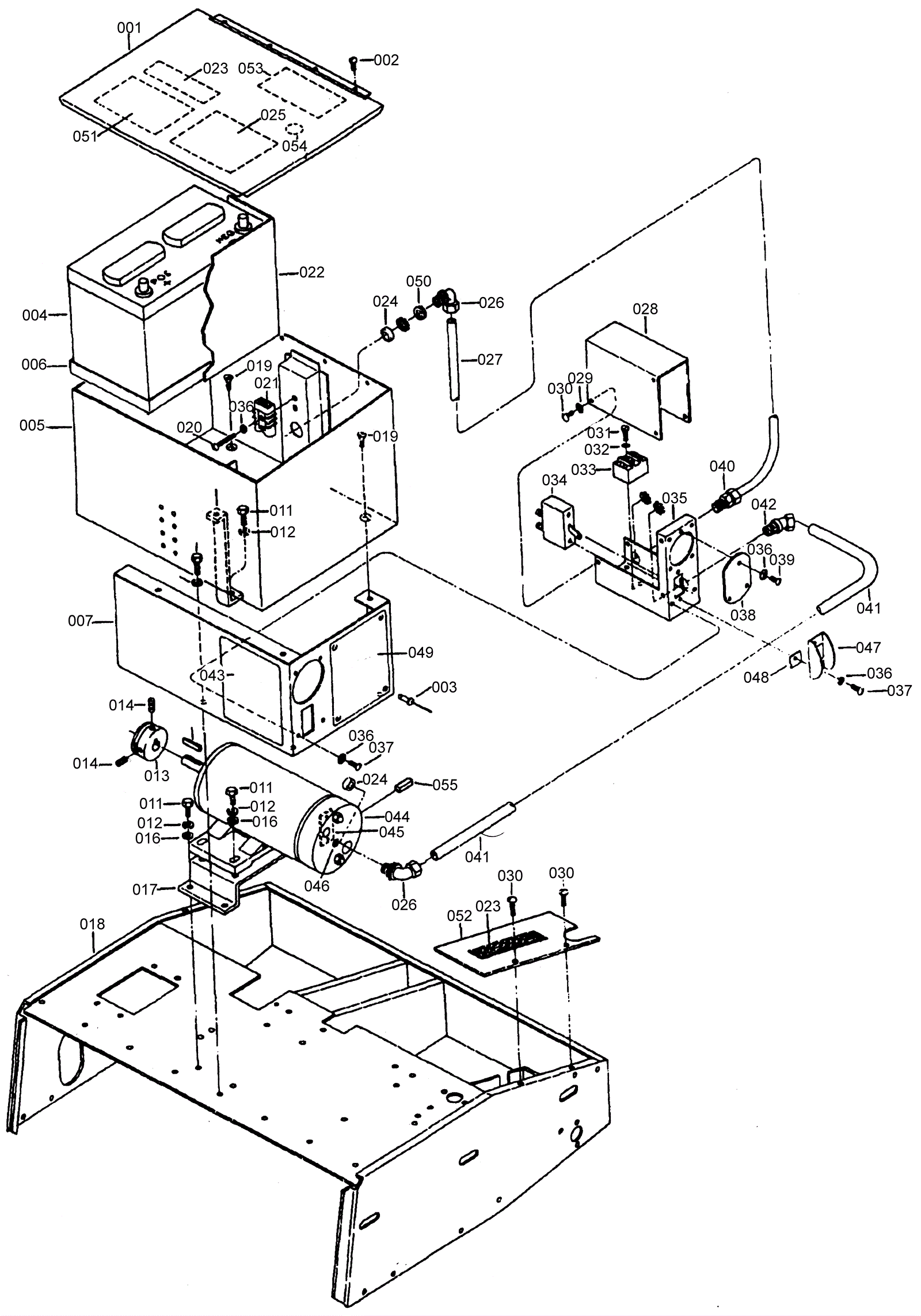

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-2006
|
Battery access cover assembly (OBSOLETE) |
1 |
|
|
002 |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
4 |
|
|
003 |
375-7487
|
Rivet 1/8 x 5/16 inch (OBSOLETE) |
4 |
|
|
004b |
162-0011
|
12V 105Ah wet battery (SNSR) |
2 |
Dry |
|
005 |
170-6463
|
Battery housing assembly (OBSOLETE) |
1 |
|
|
006 |
170-6431
|
Battery tray (OBSOLETE) |
2 |
|
|
007 |
170-6464
|
Motor housing assembly (OBSOLETE) |
1 |
|
|
008 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
3 |
|
|
009 |
999-0060
|
Washer 1/4 split lock plain finish |
6 |
|
|
010 |
170-6433
|
Battery support bracket (OBSOLETE) |
1 |
|
|
011 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
8 |
|
|
012 |
999-0028
|
Washer 5/16 split lock plain finish |
12 |
|
|
013 |
170-6434
|
Motor pulley (OBSOLETE) |
1 |
|
|
014 |
170-1588
|
Screw 5/16-18 x 3/8 set |
2 |
|
|
015 |
170-1679
|
Square keyway |
1 |
|
|
016 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
017 |
170-6435
|
Motor mounting bracket assembly (OBSOLETE) |
1 |
|
|
018 |
170-6465
|
Main frame assembly (OBSOLETE) |
1 |
|
|
019 |
999-0694
|
Screw 1/4-20 x 1/2 flat head phillips zinc plated |
4 |
|
|
020 |
999-0656
|
Screw #6-32 x 7/8 pan head phillips zinc plated |
2 |
|
|
021 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
022 |
170-6437
|
Battery shield (OBSOLETE) |
2 |
|
|
023 |
170-6438
|
Warning label (OBSOLETE) |
2 |
|
|
024 |
170-6439
|
Conduit insulating bushing (OBSOLETE) |
2 |
|
|
025 |
170-6440
|
Warning label (OBSOLETE) |
1 |
|
|
026 |
170-6441
|
90 degree conduit connector (OBSOLETE) |
2 |
|
|
027 |
170-6442
|
Battery enclosure tubing (OBSOLETE) |
1 |
|
|
028 |
170-6443
|
Enclosure cover assembly (OBSOLETE) |
1 |
|
|
029 |
999-0311
|
Washer #10 external star lock zinc plated |
6 |
|
|
030 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
10 |
|
|
031 |
170-1502
|
Screw (OBSOLETE) |
2 |
|
|
032 |
999-0150
|
Washer #8 medium split lock |
1 |
|
|
033 |
170-6444
|
Terminal block (OBSOLETE) |
1 |
|
|
034 |
170-6445
|
Toggle switch |
1 |
|
|
035 |
170-6446
|
Circuit breaker enclosure (OBSOLETE) |
1 |
|
|
036 |
999-0148
|
Washer #6 external star lock zinc plated |
5 |
|
|
038 |
170-6448
|
Enclosure cover (OBSOLETE) |
1 |
|
|
039 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
3 |
|
|
040 |
170-6449
|
Straight conduit connector (OBSOLETE) |
1 |
|
|
041 |
170-6450
|
Circuit breaker tubing (OBSOLETE) |
1 |
|
|
042 |
170-6451
|
45 Degree conduit connector (OBSOLETE) |
1 |
|
|
043 |
170-6452
|
Wiring diagram label (OBSOLETE) |
1 |
|
|
044 |
170-6453
|
24 Volt D.C. motor drive (OBSOLETE) |
1 |
|
|
045 |
170-6454
|
Paper insulation (OBSOLETE) |
1 |
Motor |
|
046 |
999-0017
|
Washer 1/4 external star lock |
2 |
|
|
047 |
170-6455
|
Switch guard (OBSOLETE) |
1 |
|
|
048 |
170-6456
|
Switch guard cover (OBSOLETE) |
1 |
|
|
049 |
170-6457
|
Safety label plate (OBSOLETE) |
1 |
|
|
050 |
170-6458
|
Washer (OBSOLETE) |
1 |
|
|
051 |
170-0542
|
Battery care label (OBSOLETE) |
1 |
|
|
052 |
170-6466
|
Frame cover (OBSOLETE) |
2 |
|
|
053 |
170-6460
|
Battery size label (OBSOLETE) |
1 |
|
|
054 |
170-6461
|
UL decal label (OBSOLETE) |
1 |
|
|
055 |
170-6462
|
Motor brush (OBSOLETE) |
1 |
|
|
004a |
162-0011
|
12V 105Ah wet battery (SNSR) |
2 |
Wet |
|
004a |
162-0042
|
12V 115Ah AGM battery (Group 31) (SNSR) |
2 |
Wet |
|
