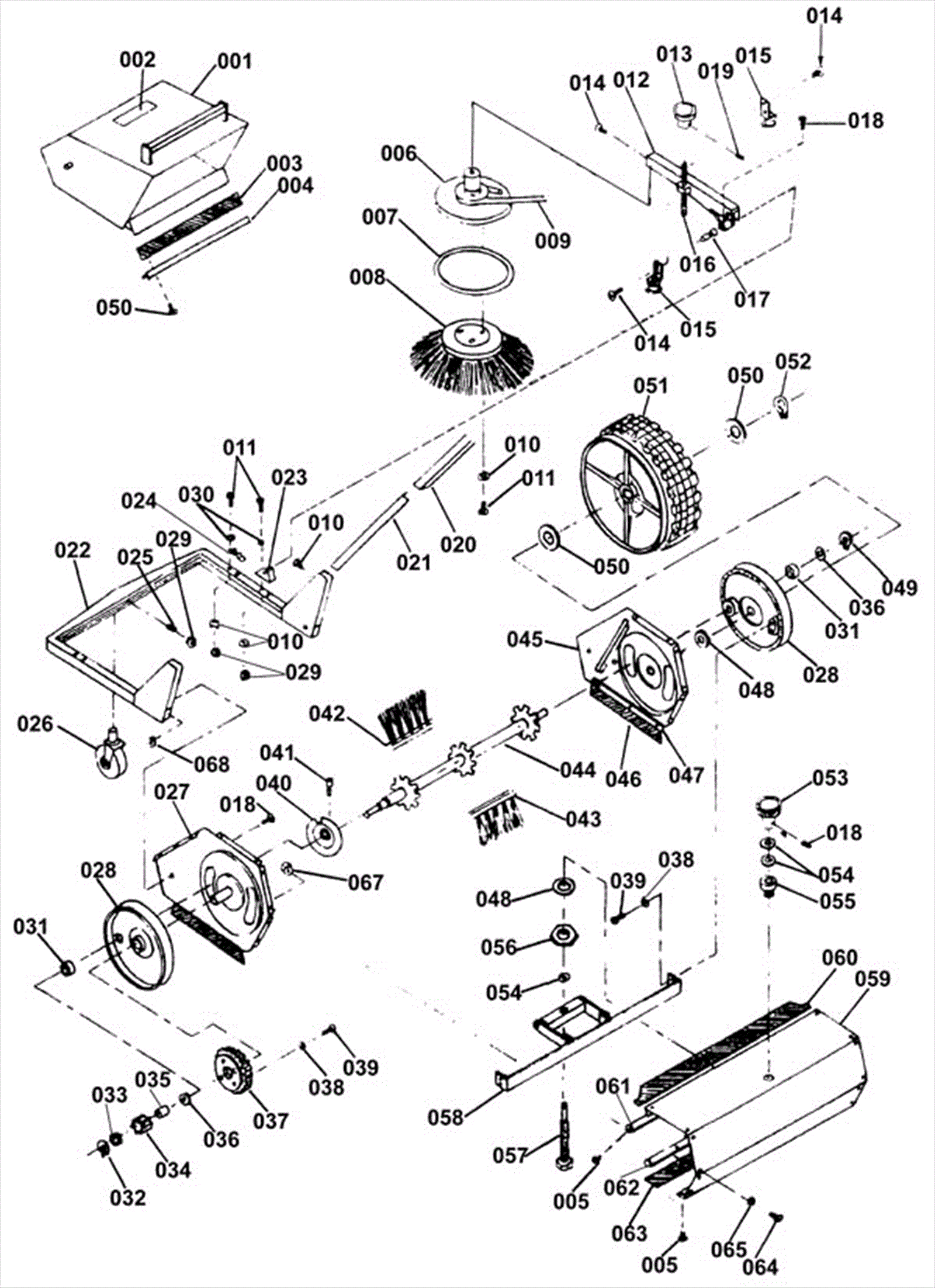

PS27 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-4492 Hopper assembly (OBSOLETE) $262.98 1 usually ships 1-5 days
002 170-0484 Alto label (OBSOLETE) $14.36 1 usually ships 1-5 days
003 170-4493 Hopper skirt (OBSOLETE) $21.71 1 usually ships 1-5 days
004 170-4494 Skirt retainer (OBSOLETE) $5.86 1 usually ships 1-5 days
005 170-4495 Screw M4 x 45/64 x 10 (OBSOLETE) $1.87 30 usually ships 1-5 days
006 170-4496 Pulley assembly (OBSOLETE) $150.99 1 usually ships 1-5 days
007 170-4497 Side broom bumper (OBSOLETE) $6.37 1 usually ships 1-5 days
008 170-4498 Side broom (OBSOLETE) $36.42 1 usually ships 1-5 days
009 170-4499 V belt (OBSOLETE) $25.60 1 usually ships 1-5 days
010 999-0060 Washer 1/4 split lock plain finish $0.99 13 ships same day
011 999-0807 Screw M6-1 x 10mm flat head phillips $2.49 15 ships same day
012 170-4501 Weldment arm (OBSOLETE) Call for price 1 usually ships 1-5 days
013 170-4502 Side broom knob (OBSOLETE) $30.78 1 usually ships 1-5 days
014 170-4503 Screw M6 x 12 (OBSOLETE) Call for price 16 usually ships 1-5 days
015 170-4504 Idler assembly (OBSOLETE) $15.06 1 usually ships 1-5 days
016 170-4505 Stud adjustment (OBSOLETE) $7.42 1 usually ships 1-5 days
017 170-4506 Arm pin (OBSOLETE) $6.37 1 usually ships 1-5 days
018 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 5 ships same day
019 999-0322 Screw 10-24 x 1/2 socket head alloy plain finish $0.99 2 ships same day
020 170-4507 Handle (OBSOLETE) Call for price 1 usually ships 1-5 days
021 170-4508 Angle handle (OBSOLETE) $22.68 2 usually ships 1-5 days
022 170-4509 Frame weldment (OBSOLETE) $192.46 1 usually ships 1-5 days
023 170-4510 Side broom bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
024 170-4511 Hopper guide (OBSOLETE) Call for price 2 usually ships 1-5 days
025 170-4512 Socket set 1/4 x 20 x 1/2 $5.71 1 usually ships 4-15 days
026 170-4513 3 Inch caster assembly (OBSOLETE) $11.51 1 usually ships 16-41 days
027 170-4514 Left panel (OBSOLETE) $131.54 1 usually ships 1-5 days
028 170-4515 Shroud (OBSOLETE) $21.06 2 usually ships 1-5 days
029 170-4516 Nut M6 x 1 (OBSOLETE) Call for price 7 usually ships 1-5 days
030 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
031 170-0321 Front end bearing $19.58 3 usually ships 4-15 days
032 170-4517 Ring S-2 (OBSOLETE) Call for price 1 usually ships 1-5 days
033 170-5602 Washer $7.34 1 ships same day
034 170-4518 Pinion (OBSOLETE) $15.44 1 usually ships 1-5 days
035 170-4519 Clutch (OBSOLETE) $74.41 1 usually ships 1-5 days
036 999-0630 Washer 3/4 SAE flat $0.99 3 ships same day
037 170-4520 Nylon gear (OBSOLETE) Call for price 1 usually ships 1-5 days
038 170-3737 Washer wave $9.56 1 usually ships 1-5 days
039 999-1182 Screw M5-.8 x 16mm pan head slotted stainless steel $0.99 4 ships same day
040 170-4521 Brush support (OBSOLETE) $96.66 1 usually ships 1-5 days
041 170-4522 Screw M6 socket cap (OBSOLETE) Call for price 1 usually ships 1-5 days
042 170-4524 Brush rail 25 mm (OBSOLETE) $17.94 5 usually ships 1-5 days
043 170-4524 Brush rail 25 mm (OBSOLETE) $17.94 5 usually ships 1-5 days
044 170-4525 Shaft (OBSOLETE) $95.69 1 usually ships 1-5 days
045 170-4526 Right panel (OBSOLETE) $109.16 1 usually ships 1-5 days
046 170-4527 Side skirt (OBSOLETE) $18.36 2 usually ships 1-5 days
047 170-4528 Skirt retainer (OBSOLETE) $1.87 2 usually ships 1-5 days
048 170-2159 Washer $9.56 3 usually ships 1-5 days
049 170-4529 Ring S-17 (OBSOLETE) $3.85 1 usually ships 1-5 days
050 170-4530 Washer 2 x 16 13/32 x 32 $1.10 4 usually ships 1-5 days
051 170-4531 12 Inch tire (OBSOLETE) $59.29 2 usually ships 1-5 days
052 170-4532 Ring S-16 (OBSOLETE) Call for price 2 usually ships 1-5 days
053 170-4533 Main broom knob (OBSOLETE) $37.04 1 usually ships 1-5 days
054 170-2414 Washer flat $2.61 3 usually ships 1-5 days
055 170-4534 Pivot assembly (OBSOLETE) $20.37 1 usually ships 1-5 days
056 170-4535 Nut 1/2 plated (OBSOLETE) $5.00 1 usually ships 1-5 days
057 170-4536 Stud adjustment (OBSOLETE) $11.66 1 usually ships 1-5 days
058 170-4537 Bracket (OBSOLETE) $59.72 1 usually ships 1-5 days
059 170-4538 Cover panel (OBSOLETE) Call for price 1 usually ships 1-5 days
060 170-4539 Hopper upper skirt (OBSOLETE) $15.34 1 usually ships 1-5 days
061 N/A Not available Call for price 1 (Upper retainer skirt) usually ships 3-26 days
062 170-4541 Lower retainer skirt (OBSOLETE) $19.55 1 usually ships 1-5 days
063 170-4541 Lower retainer skirt (OBSOLETE) $19.55 1 usually ships 1-5 days
064 999-1184 Screw M4-.7 x 12mm oval head stainless steel $0.99 12 usually ships 1-5 days
065 999-0006 Washer 3/16 flat zinc plated $0.99 12 ships same day
067 170-8012 Nut M4 x .7 hex (OBSOLETE) $1.82 usually ships 1-5 days
068 170-8076 Nut M5 x .8 hex jam $9.60 2 usually ships 1-5 days
