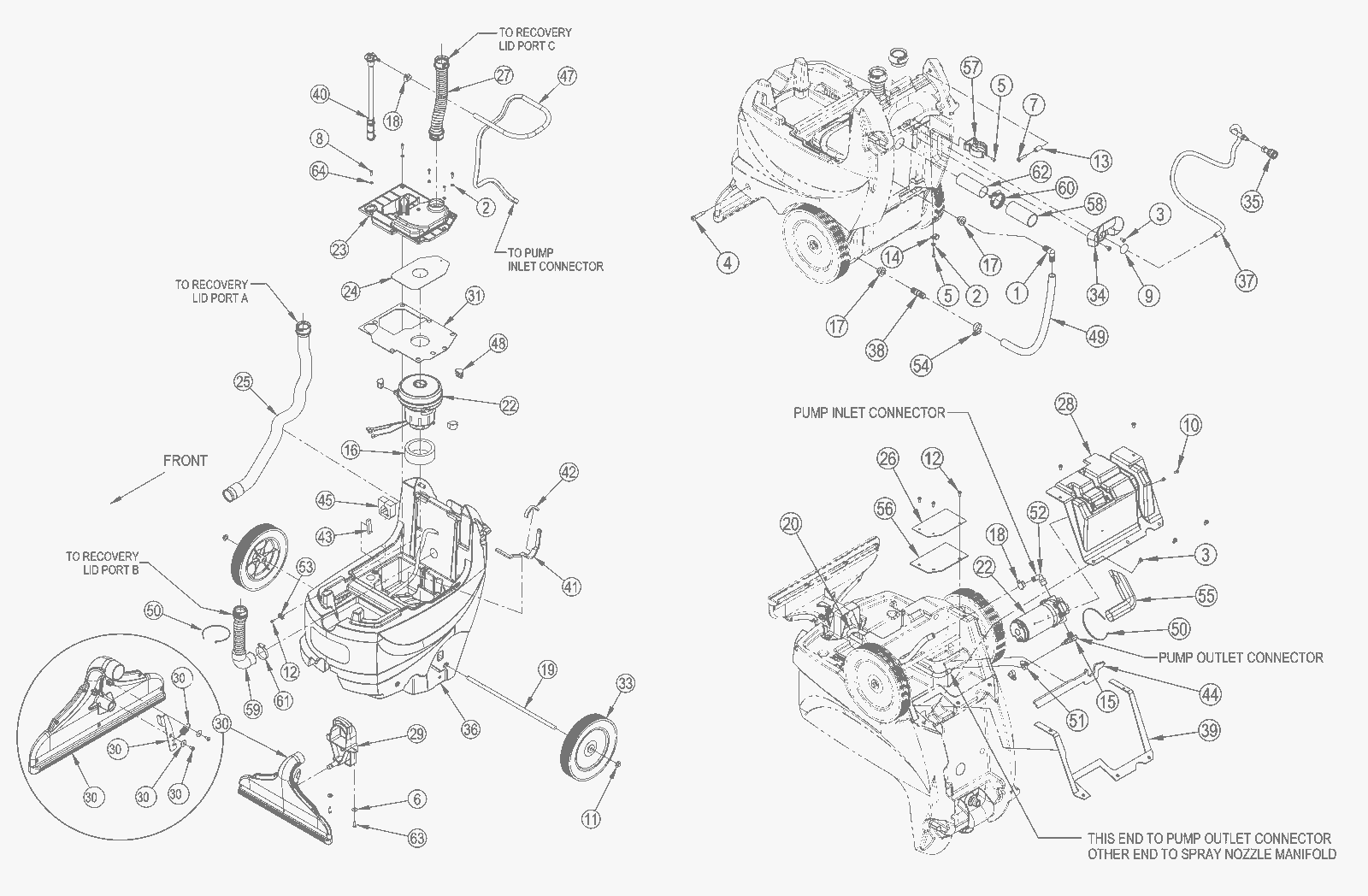

Solution Assembly 16ST

#PartDescription ReqNotesAvailability
1 572-3946 5/8 inch elbow 1
2 999-1862 Washer #10 flat SAE stainless steel 7
3 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 7
4 172-5131 Screw .38 x 1 1/4 x 5/16-18 socket shoulder 1
5 272-6384 Screw 10-24 x .38 pan head phillips loc SS 2
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
7 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 2
8 272-9542 Screw 10-14 x 3/4 pan head plastite 7
9 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat 1
10 999-1104 Screw 10-24 x 3/4 pan head phillips thread rolling zinc 2
11 172-4017 1/2 inch push cap 2
12 272-9978 Screw 10-14 x 1/2 pan head phillips plastite 4
13 172-7628 Spacer 1/4 x 1/2 x 7/8 2
14 181-0774 Loop clamp 1
15 272-2775 Fitting barb kit 1
16 472-4970 Inlet seal 1
17 170-1387 Bushing fitting 2
18 172-8494 #6 hose clamp SAE 2
19 272-0533 Axle 1
20 272-2767 Hose 1/4 x 21 inch 1
21a 472-5540 120V vacuum motor 1
21b 472-5587 Carbon brush kit (pkg of 2) 1
22 472-5542 115V 120PSI pump 1
23 472-5549 Vacuum motor cover 1
24 472-5550 Vaccum motor plate 1
25 472-5551 Vaccum hose assembly 1
26 472-5556 Vacuum inlet cover 1
27 472-5561 Vacuum hose assembly 1
28 472-5565 Back cover 1
29 472-5569 Shoe bracket 1
30a 472-5571 Shoe latch assembly 1
30b 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel 2
30c 472-5533 Shoe assembly 1
30d 572-3947 Shoe latch 1
30e 572-3948 Washer 10 x 11/1 flat stainless steel 2
30f 272-8226 Extension spring 1
31 472-5577 Vacuum motor cover gasket 1
33 472-5596 Wheel 2
34 472-5602 Hose storage hook 1
35 472-5603 Quick disconnect socket 1
36 472-5604 Solution tank (blue) 1
37 472-5606 Solution hose assembly 1
38 472-5609 Barb 1
39 472-5616 Backpanel gasket set 1
40 472-5617 Solution filter assembly 1
41 472-5621 Vacuum chamber gasket 1
42 472-5622 Vacuum exhaust port gasket 1
43 472-5623 Vaccum chamber side gasket 1
44 472-5624 Backpanel gasket 1
45 472-5627 Vaccum hose gasket 1
47 472-5639 Hose 1
48 272-2108 Vibration mount 3
49 472-5629 Hose 1
50 272-7413 Cable tie 2
51 170-5169 Hose clamp SAE #4 2
52 172-4056 90 degree barbed elbow 1
53 172-4710 Wire tie holder 1
55 572-3949 Pump boot 1
56 572-3950 Vac inlet cover gasket 1
57 164-0101 Hose holder 1 (To replace, order Clamp Kit 9096380000)
58 181-0738 Hose cuff 1
59 472-5562 Vacuum hose assembly with elbow 1
60 472-5646 Clamp 1
61 172-8493 #24 hose clamp SAE 1
62 472-7577 Tube 1
63 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
64 172-2311 Washer 9/16 1
N/S 272-1214 15 foot hose with waterline 1 (For accessory tools)
