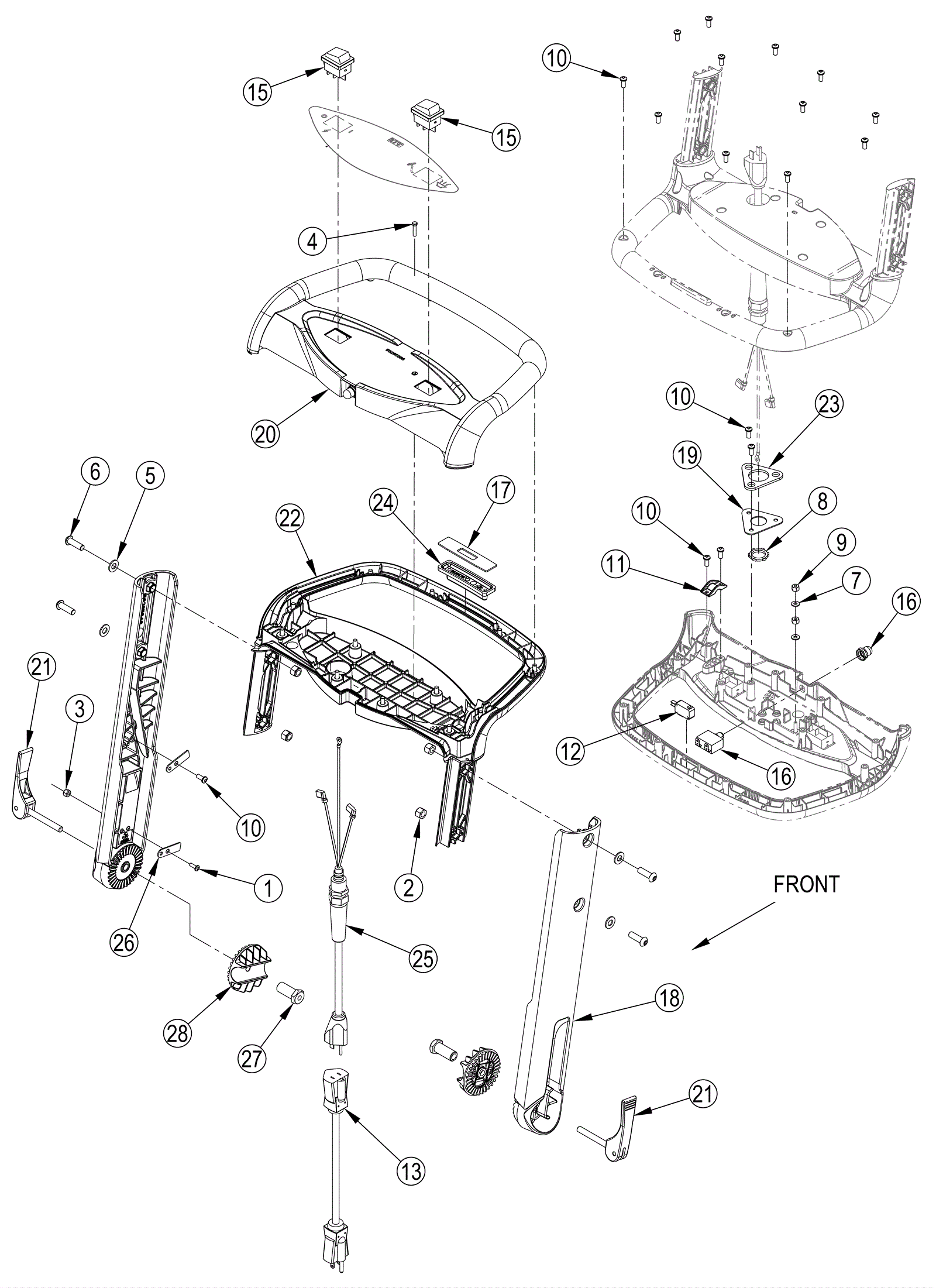

EX40 16ST Handle Assembly 16ST

#PartDescriptionPriceReqNotesAvailability
1 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
3 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
4 172-0587 Bolt 8-32 x 3/4 hex head stainless steel $10.85 1 usually ships 16-41 days
5 999-9004 Washer 5/16 SAE flat stainless steel $1.69 4 ships same day
6 999-1507 Screw 5/16-18 x 1 button head socket stainless steel $1.88 4 ships same day
7 999-0092 Washer #8 internal star lock zinc plated $0.99 2 ships same day
8 172-4536 Nut 1/2-14 conduit lock $12.31 1 usually ships 16-41 days
9 999-1819 Nut 8-32 hex stainless steel $0.99 2 usually ships 1-5 days
10 272-9978 Screw 10-14 x 1/2 pan head phillips plastite $10.85 17 usually ships 16-41 days
11 172-1293 Power cord clamp $13.76 1 usually ships 1-5 days
12 272-0503 Snap action switch $13.17 1 usually ships 16-41 days
13 272-1097 14/3 extension cord 50 foot $127.61 1 ships same day
15 472-5537 Rocker switch $12.31 2 ships same day
16 472-5538 5A circuit breaker with boot $12.31 1 usually ships 16-41 days
17 472-5545 Switch plate retainer $9.26 1 usually ships 16-41 days
18 472-5570 Handle tube ratchet $24.60 2 usually ships 16-41 days
19 472-5575 Cord mounting plate $9.26 1 usually ships 16-41 days
20 472-5578 Top handle cover $40.08 1 ships same day
21 472-5586 Lever locking assembly $32.69 2 usually ships 16-41 days
22 472-5593 Bottom handle cover $40.08 1 ships same day
23 472-5597 Cord mount gasket $9.26 1 usually ships 16-41 days
24 472-5611 Handle button $9.26 1 usually ships 16-41 days
25 472-5614 Pigtail cord $14.91 1 ships same day
26 472-5632 Harness retainer $9.26 2 usually ships 16-41 days
27 472-5634 Cam adjustment busing $19.98 2 usually ships 16-41 days
28 572-3934 Handle adjuster ratchet $9.26 2 usually ships 16-41 days
N/S 475-5536 Chassis Member - Front Upper Side, Chass (Tennant Industrial $43.42 1 usually ships 5-16 days
