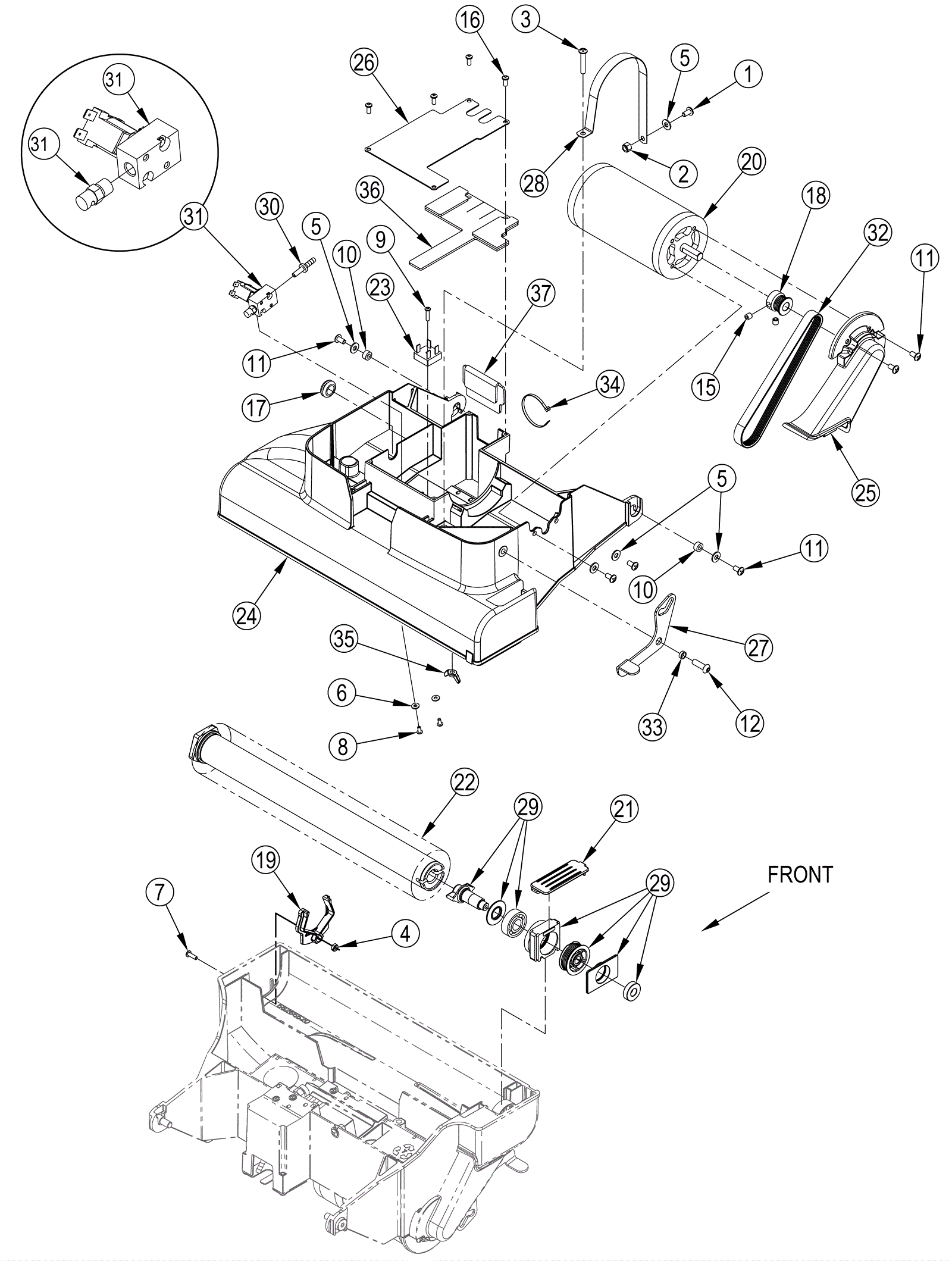

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
1 |
|
|
2 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
3 |
999-0523
|
Screw 1/4-20 x 1 1/2 pan head phillips stainless steel |
1 |
|
|
4 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
|
6 |
999-0266
|
Washer #8 SAE flat stainless steel |
2 |
|
|
7 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
1 |
|
|
8 |
999-1131
|
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
2 |
|
|
9 |
272-2188
|
Screw 8-10 x 3/4 pan head phillips plastite |
1 |
|
|
10 |
572-3921
|
Bushing .26x .50 x .25 inch |
2 |
|
|
11 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
6 |
|
|
12 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
1 |
|
|
15 |
999-1840
|
Screw 5/16-18 x 5/16 knurled point socket set alloy steel |
2 |
|
|
16 |
181-1165
|
Screw 8-15 x 1/2 pan head phillips |
4 |
|
|
17 |
172-0343
|
Grommet |
1 |
|
|
18 |
172-4048
|
Pulley |
1 |
|
|
19 |
272-0519
|
Brush retainer clip |
1 |
|
|
20 |
272-0521
|
115V brush motor |
1 |
|
|
21 |
272-0522
|
Pulley cover |
1 |
|
|
22a |
272-0523
|
16 inch brush assembly - includes bearing blocks |
1 |
|
|
22b |
372-4043
|
16 inch brush - DOES NOT include bearing blocks |
1 |
|
|
22c |
172-4042
|
Plug bearing |
1 |
|
|
22d |
172-5808
|
Washer |
1 |
|
|
22e |
272-0525
|
18 inch brush assembly - includes bearing blocks |
1 |
|
|
22f |
272-0526
|
18 inch brush - DOES NOT include bearing blocks |
1 |
|
|
23 |
172-4139
|
35amp rectifier |
1 |
|
|
24a |
572-3925
|
Base 16 assembly |
1 |
16ST |
|
24b |
572-3926
|
Base 18 assembly |
1 |
18LX |
|
25 |
472-5563
|
Belt cover |
1 |
|
|
26 |
472-5574
|
Electrical cover |
1 |
|
|
27 |
572-3927
|
Brush storage lever |
1 |
|
|
28 |
472-5584
|
Motor strap |
1 |
|
|
29a |
472-5591
|
Bearing spindle assembly |
1 |
(includes 29b-29h) |
|
29b |
172-4043
|
Ball bearing |
1 |
|
|
29c |
172-0619
|
Washer |
1 |
|
|
29d |
172-4045
|
Left bearing block |
1 |
|
|
29e |
472-5489
|
Drive spindle |
1 |
|
|
29f |
472-5547
|
Drive bearing block |
1 |
|
|
29g |
172-4158
|
Poly-V sheave |
1 |
|
|
29h |
172-0249
|
Bottom bearing |
1 |
|
|
30 |
472-5592
|
Adapter barb |
1 |
|
|
31a |
472-5630
|
120V valve/nozzle assembly |
1 |
|
|
31b |
272-0578
|
Spray nozzle |
1 |
|
|
31c |
472-5543
|
120V solenoid valve |
1 |
|
|
31d |
472-5544
|
230V solenoid valve |
1 |
|
|
32 |
272-2150
|
Tension belt |
1 |
|
|
33 |
172-9202
|
Bushing |
1 |
|
|
35 |
999-0603
|
Nut 1/4-20 wing stainless steel |
1 |
|
|
36 |
572-3928
|
Electric base compartment gasket |
1 |
|
|
37 |
572-3929
|
Rear base gasket |
1 |
|
|
N/S |
572-3923
|
Rivet-nut 5/16-18 steel zinc plated (OBSOLETE) |
1 |
|
|
N/S |
999-0450
|
Washer 7/16 internal star lock zinc plated |
1 |
|
|
