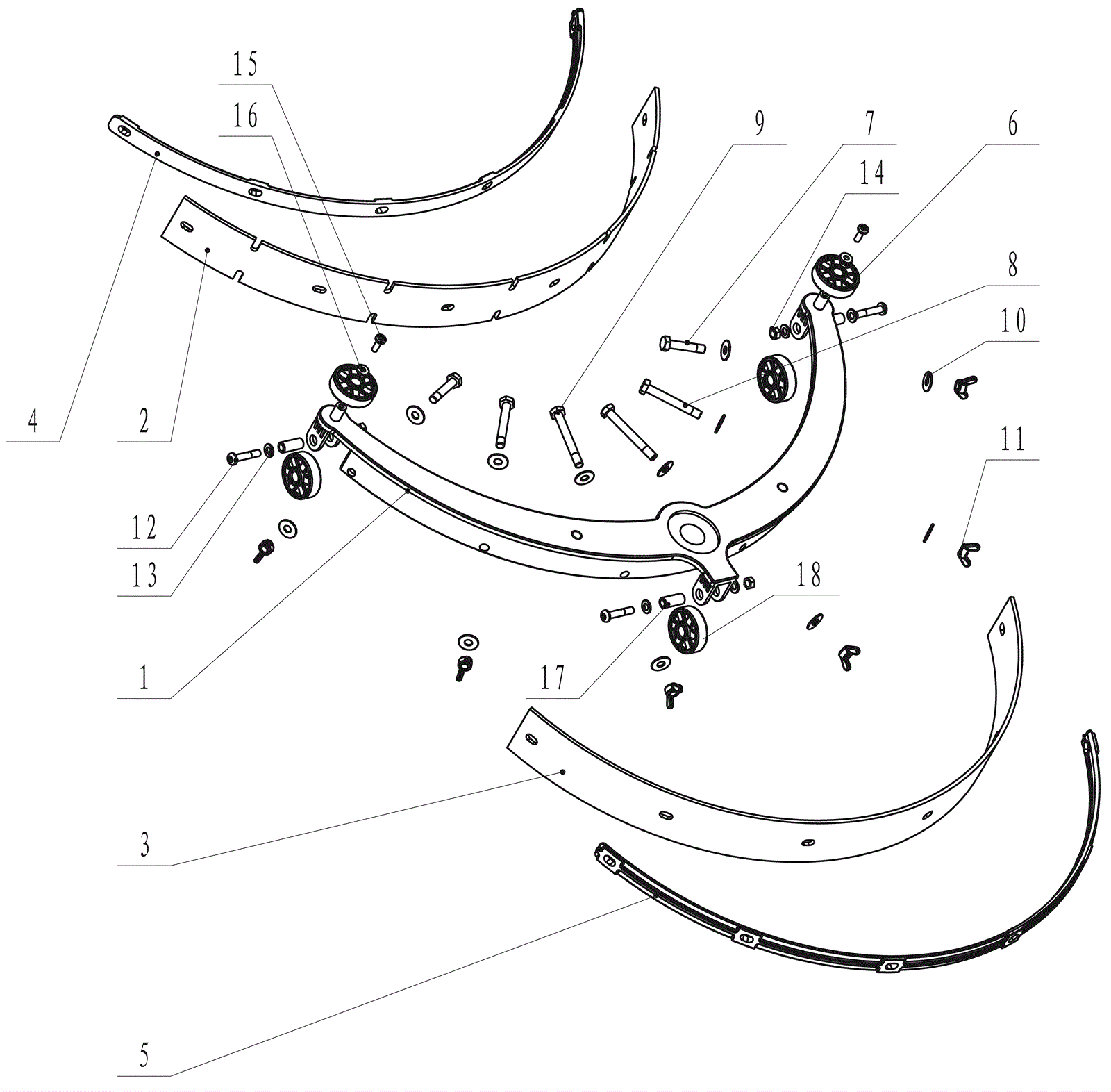

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-2259
|
Squeegee bracket |
1 |
|
|
2a |
240-2103
|
Squeegee blade front gum rubber |
1 |
|
|
2b |
270-8570
|
Squeegee blade front urethane |
1 |
(optional) |
|
3a |
240-6022
|
Squeegee blade rear gum rubber |
1 |
|
|
3b |
270-8572
|
Squeegee blade rear urethane |
1 |
(optional) |
|
4 |
240-2260
|
Front squeegee strap |
1 |
|
|
5 |
240-2261
|
Rear squeegee strap |
1 |
|
|
6 |
240-2262
|
Squeegee wheel |
2 |
|
|
7 |
240-2263
|
Bolt M6 x 30 hex |
2 |
|
|
8 |
240-2264
|
Bolt M6 x 45 hex |
2 |
|
|
9 |
240-2265
|
Bolt M6 x 50 hex |
2 |
|
|
10 |
240-2150
|
Washer |
12 |
|
|
11 |
240-2266
|
Wing nut |
6 |
|
|
12 |
272-7569
|
Screw M5 x 35 |
3 |
|
|
13 |
240-0643
|
Washer M5 plain |
6 |
|
|
14 |
240-2170
|
Nut M5 lock |
3 |
|
|
15 |
240-0393
|
Screw M4 x 12mm |
2 |
|
|
16 |
240-0463
|
Washer M4 plain finish |
2 |
|
|
17 |
240-2267
|
Bushing |
3 |
|
|
18 |
240-2262
|
Squeegee wheel |
3 |
|
|
