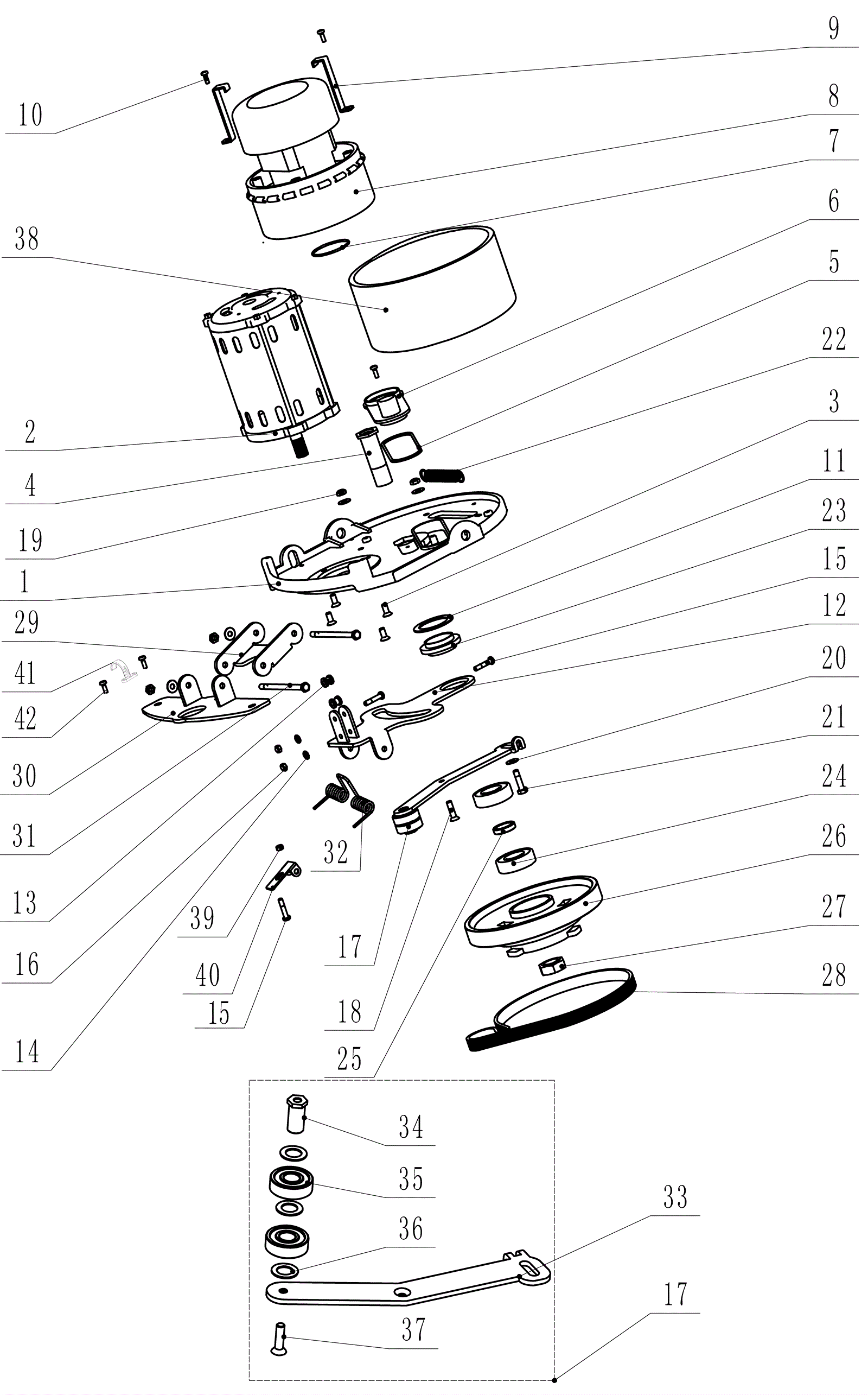

Brush Deck Assembly

#PartDescription ReqNotesAvailability
1 240-2199 Motor mount plate 1
2 240-2200 Brush motor assembly 1
3 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
4 240-2201 Drive belt bolt 1
5 240-2202 Large o-ring 1
6 240-2203 Vacuum sealing cover 1
7 240-2204 Small o-ring 1
8a 240-2131 Vacuum motor assembly 1 (Motor has been changed to a gray plug see Tech Bulletin Connector Issue will require 8b)
8b 170-9415 Motor cable harness 1
9 240-7001 Vacuum motor bracket 2
10 240-0393 Screw M4 x 12mm 3
11 270-8550 Washer 1
12 270-8551 Squeegee rotate plate 1
13 270-8552 Squeegee guide wheel 2
14 240-0643 Washer M5 plain 2
15 999-1425 Screw M5-.8 x 25mm pan head stainless steel 3
16 240-2170 Nut M5 lock 2
17 240-2206 Belt adjustment kit 1 (includes 33-37)
18 272-8065 Screw M6 x 25 phillips stainless steel 1
19 272-7558 Lower housing assembly 4
20 240-2150 Washer 3
21 999-1087 Bolt M6-1 x 25mm hex head stainless steel 1
22 270-8553 Spring 1
23 270-8554 Squeegee rotate bushing 1
24 240-2207 Bearing 2
25 270-8555 Bushing 1
26 240-2208 Drive hub 1
27 240-2209 Nut 1
28 240-2210 Drive belt 1
29 240-2211 Squeegee lift plate 1
30 270-8556 Squeegee bracket plate 1
31 240-2212 Squeegee lift rotate bolt 2
32 240-2213 Torsion spring 1
33 270-8557 Belt adjustment plate 1
34 270-8558 Bearing bolt 1
35 270-8559 6201 bearing (OBSOLETE) 2
36 270-8560 Washer (OBSOLETE) 3
37 270-8561 Screw M6 x 20mm (OBSOLETE) 1
38 240-2214 Silencer sponge 1
39 240-2057 Nut M5 1
