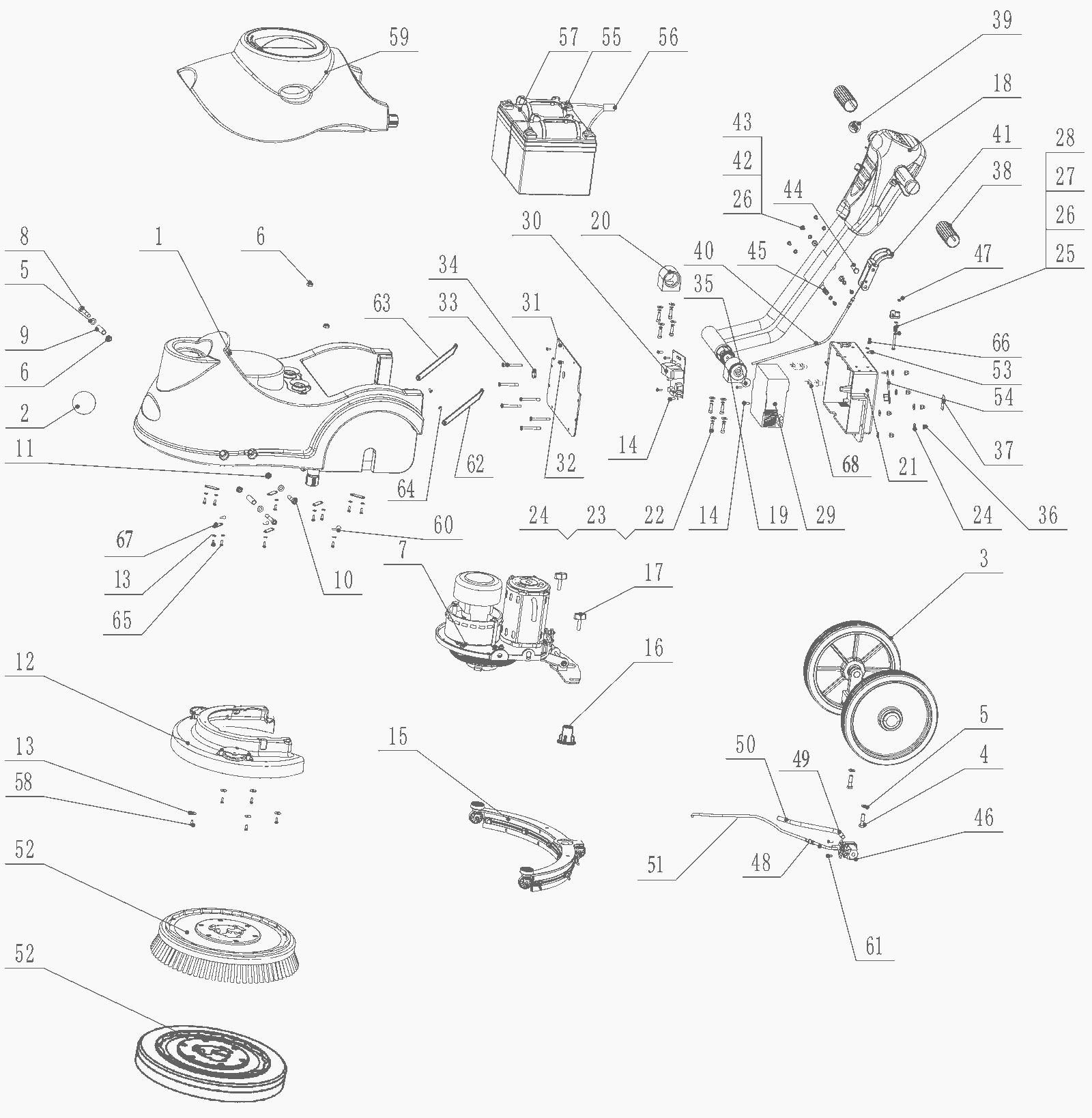

Entire Assembly

#PartDescription ReqNotesAvailability
1 240-5974 BLUE SOLUTION TANK KIT 1
2 240-5944 CLARKE LABEL SOLUTION TANK 1
3 240-2134 Wheel and axle kit 1
4 240-2135 Bolt M8 x 30 2
5 999-9097 Washer M8 flat stainless steel 5
6 240-2120 Nut M8 lock 4
7 270-8547 Motor mounting plate kit 1
8 999-1828 Screw M8-1.25 x 55mm socket head stainless steel 2
9 240-2138 Bushing 2
10 240-2139 Screw M8 x 40mm hex socket 1
11 240-2118 Nut M8 1
12 240-2140 Skirt assembly 1
13 240-0463 Washer M4 plain finish 15
14 240-0393 Screw M4 x 12mm 16
15 240-2141 Squeegee assembly 1
16 240-5952 Squeegee hose connector 1
17 240-2143 Thumb screw 2
18 240-6005 Handle assembly kit 1
19 240-2145 Left hand handle block 1
20 240-2146 Right hand handle block 1
21 240-5933 CIRCUIT BOX 1
22 240-2148 Screw M6 x 15 hex socket 8
23 240-2149 Washer lock 8
24 240-2150 Washer 14
25 240-2151 Screw M5 x 45mm phillips 1
26 240-0643 Washer M5 plain 6
27 240-2152 Recovery tank latch 1
28 240-2153 Pressure spring 1
29 240-2154 Charger kit 1
30 240-2155 Main control plate 1
31 240-2156 Circuit cover 1
32 240-2157 Screw M4 x 12mm 2
33b 999-9093 Screw M6-1 x 55mm hex head stainless steel 2
34 240-2159 Waterproof cover 1
35 240-2160 Rubber plug 1
36 240-2161 Cover nut 6
37 240-2162 Charge display decal 1
38 240-2163 Rubber handle grip 2
39 240-5941 LABEL REAR HOUSING 1
40 240-5937 Squeegee lift cable 1
41 240-2165 Squeegee lift handle 1
42 240-0050 Screw M5 x 10 3
43 240-2166 Axle 2
44 240-2167 Squeegee lift cable axle 1
45 240-5940 Squeegee lift cable rotate axle 2
46 240-2169 24V solenoid valve 1
47 240-2170 Nut M5 lock 1
48 240-2171 Adapter sleeve 1
49 240-6027 Hose 1
50 240-2172 Pipe 1
51 240-6027 Hose 1
52a 240-2128 15 inch brush 1
52b 270-8505 15 inch pad driver 2
53 240-2175 Small clamp 1
54 240-2176 Rubber charger insert plug 1
55 162-0001 12V 35Ah AGM battery 2
56a 240-2178 Battery cable assembly US w/ red connectors 2
56b 240-5955 POWER WIRE CANADAIN VERSION 2
57 240-2179 Battery jumper cable 1
58 240-0889 Screw M4 x 16mm 1
59 240-2245 Recovery tank kit 1
60 240-2181 Large clamp 2
61 240-0152 Screw M4 x 8 2
62 270-8549 Left hand support 1
63 270-8548 Right hand support 1
64 240-2065 Screw M5-.8 x 12mm 2
65 240-6391 SCREW M4X10 11
66 240-0861 Screw M5 x 8mm 1
67 240-2174 Plate 6
68 240-0115 Circuit breaker 2
N/S 164-6477 Onboard charger extension cord 1
