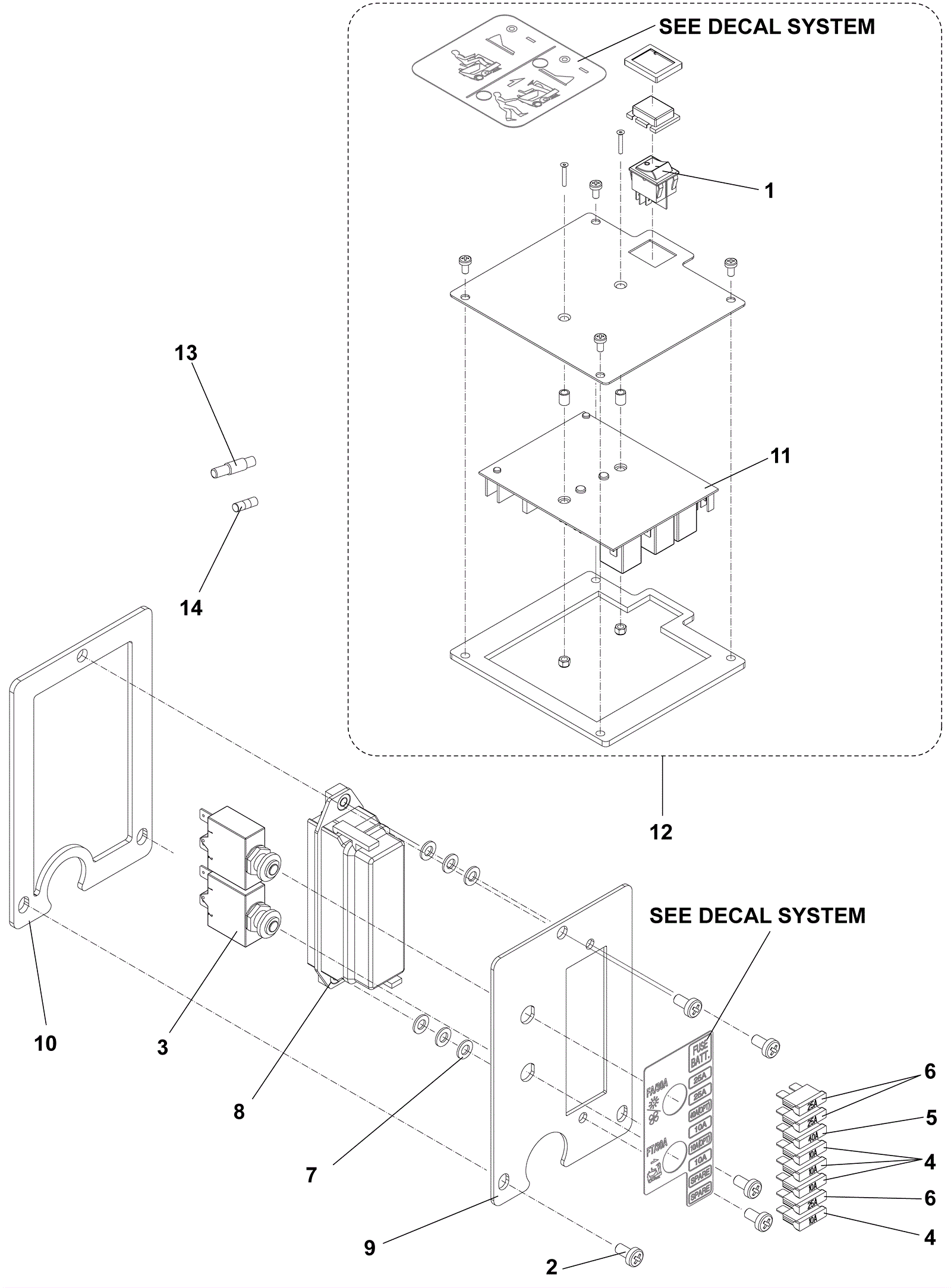

RSW 37 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-5306 Switch assembly $12.31 1 usually ships 16-41 days
2 170-9105 Screw M5 x 10mm $8.80 4 usually ships 1-5 days
3 272-2572 30amp circuit breaker $81.60 2 usually ships 16-41 days
4 272-8363 10amp fuse $31.10 4 usually ships 1-5 days
5 181-0963 40amp fuse $12.31 1 usually ships 16-41 days
6 272-8365 25amp fuse $12.31 3 usually ships 16-41 days
7 999-0803 Washer M5 flat plain finish $0.99 6 ships same day
8 272-8366 Fuse box $61.49 1 usually ships 1-5 days
9 270-8234 Electric components panel (OBSOLETE) $18.26 1 usually ships 1-5 days
10 270-8235 Gasket (OBSOLETE) $7.59 1 usually ships 1-5 days
11 270-8237 Electronic drive card assembly $903.83 1 usually ships 16-41 days
12 270-8237 Electronic drive card assembly $903.83 1 usually ships 16-41 days
13 270-8238 Fuse holder (OBSOLETE) $7.59 1 usually ships 1-5 days
14 N/A Not available Call for price 1 (3amp fuse) usually ships 3-26 days
