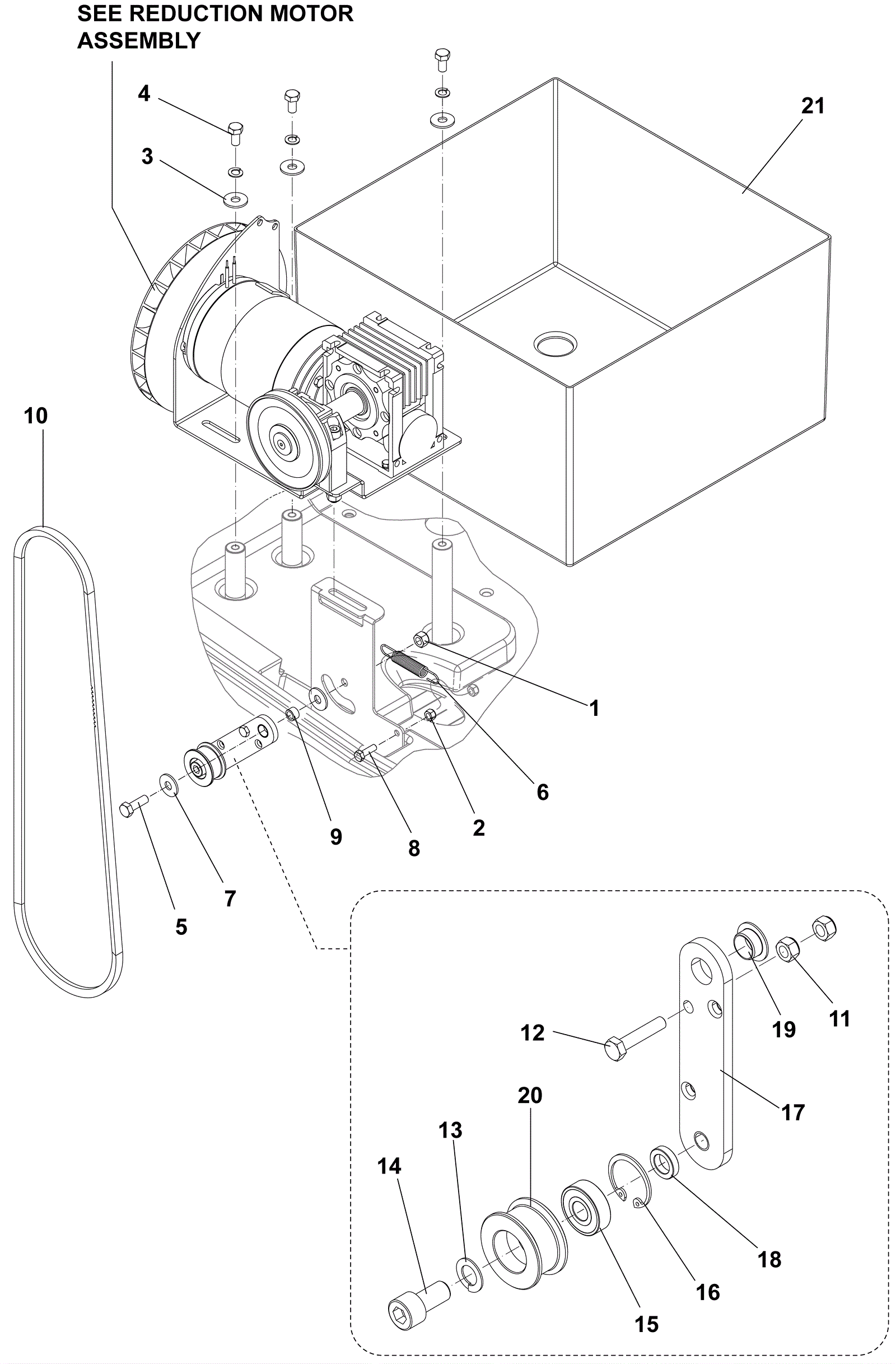

RSW 37 Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8213 Transmission hardware assembly $74.86 1 (nut M8) usually ships 1-5 days
2 270-8213 Transmission hardware assembly $74.86 2 (nut M6) usually ships 1-5 days
3 270-8213 Transmission hardware assembly $74.86 3 (washer 8) usually ships 1-5 days
4 270-8213 Transmission hardware assembly $74.86 3 (screw M8 x 16) usually ships 1-5 days
5 270-8213 Transmission hardware assembly $74.86 1 (screw M8 x 25) usually ships 1-5 days
6 N/A Not available Call for price 1 (Belt tensioner spring) usually ships 3-26 days
7 270-8213 Transmission hardware assembly $74.86 5 (flat washer 8 x 24) usually ships 1-5 days
8 270-8213 Transmission hardware assembly $74.86 1 (screw M6 x 20) usually ships 1-5 days
9 270-8213 Transmission hardware assembly $74.86 1 (spacer) usually ships 1-5 days
10 270-8215 Belt $56.44 1 usually ships 16-41 days
11 270-8213 Transmission hardware assembly $74.86 2 (nut M6) usually ships 1-5 days
12 270-8213 Transmission hardware assembly $74.86 1 (screw M6 x 30) usually ships 1-5 days
13 270-8213 Transmission hardware assembly $74.86 1 (washer 10) usually ships 1-5 days
14 270-8213 Transmission hardware assembly $74.86 1 (screw M10 x 20) usually ships 1-5 days
15 270-8213 Transmission hardware assembly $74.86 1 (ball bearing) usually ships 1-5 days
16 270-8213 Transmission hardware assembly $74.86 1 (retaining ring) usually ships 1-5 days
17 270-8213 Transmission hardware assembly $74.86 1 (belt tensioner arm) usually ships 1-5 days
18 270-8213 Transmission hardware assembly $74.86 1 (spacer) usually ships 1-5 days
19 270-8213 Transmission hardware assembly $74.86 1 (bearing with flange) usually ships 1-5 days
20 270-8213 Transmission hardware assembly $74.86 1 (belt tensioner roller) usually ships 1-5 days
21 270-8214 Battery container (OBSOLETE) $160.38 1 usually ships 1-5 days
N/S 270-8213 Transmission hardware assembly $74.86 1 (includes 1-5, 7-9, and 11-20) usually ships 1-5 days
