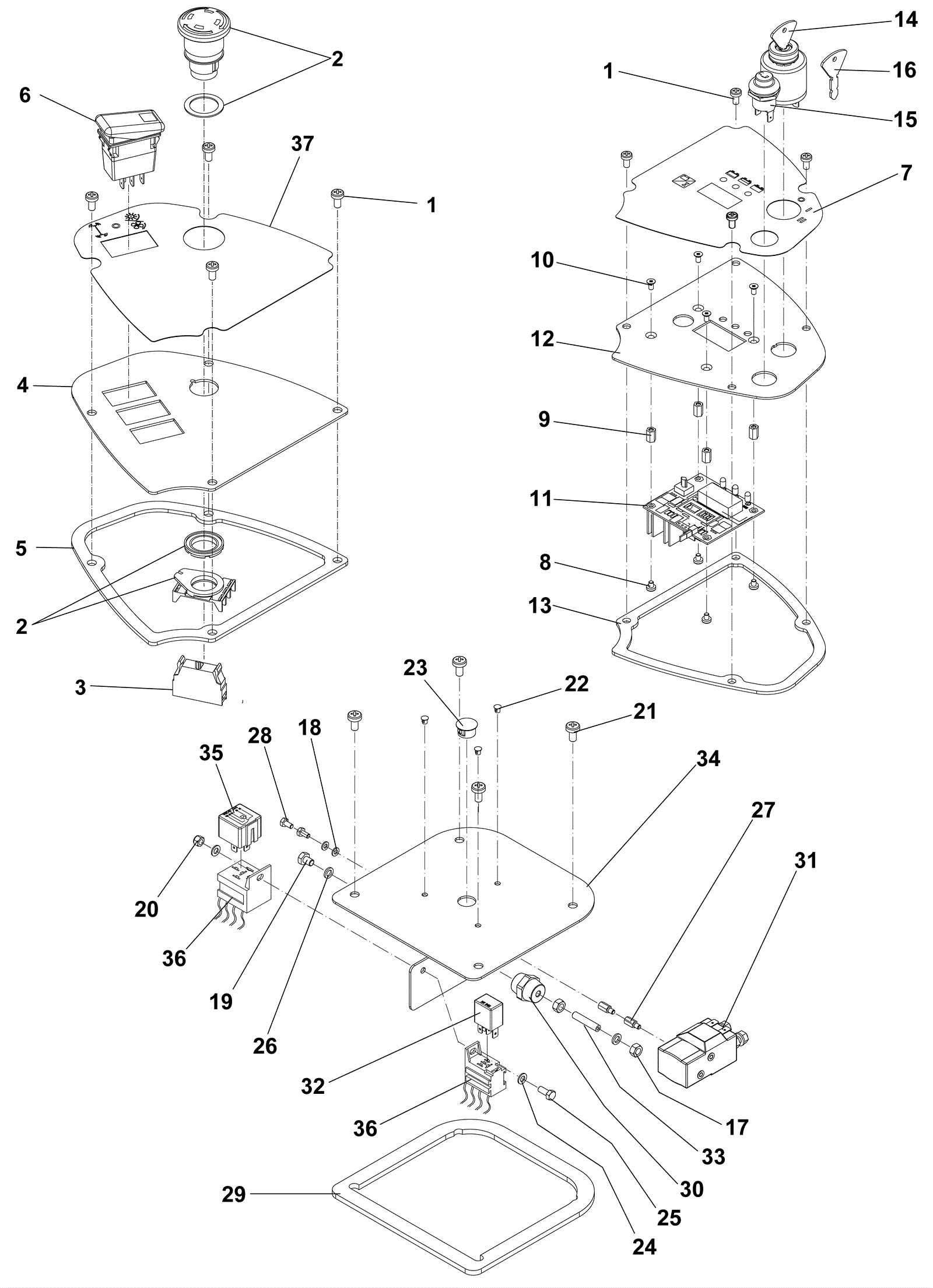

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
8 |
(screw) |
usually ships 1-5 days |
2 |
272-8340
|
Emergency switch |
$101.56
|
1 |
|
usually ships 16-41 days |
3 |
272-8341
|
Contact |
$15.48
|
1 |
|
usually ships 1-5 days |
4 |
270-8205
|
Left side control panel (OBSOLETE) |
$38.72
|
1 |
|
usually ships 1-5 days |
5 |
270-8206
|
Left side control panel gasket (OBSOLETE) |
$7.59
|
1 |
|
usually ships 16-41 days |
6 |
270-8207
|
Switch (OBSOLETE) |
$89.35
|
1 |
|
usually ships 16-41 days |
7 |
N/A
|
Not available |
Call for price
|
1 |
(Right side control panel decal) |
usually ships 3-26 days |
8 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
4 |
(screw) |
usually ships 1-5 days |
9 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
4 |
(spacer) |
usually ships 1-5 days |
10 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
4 |
(screw) |
usually ships 1-5 days |
11 |
272-8345
|
Electronic board |
$490.19
|
1 |
|
usually ships 16-41 days |
12 |
270-8208
|
Right side control panel (OBSOLETE) |
$47.52
|
1 |
|
usually ships 1-5 days |
13 |
270-8209
|
Right side control panel gasket (OBSOLETE) |
$7.59
|
1 |
|
usually ships 1-5 days |
14 |
472-3152
|
KEY START ASSY WITH SPARE KEY |
$252.90
|
1 |
|
usually ships 16-41 days |
15 |
272-8346
|
Horn |
$35.60
|
1 |
|
usually ships 1-5 days |
16 |
472-1359
|
KEY F STARTER SWITCH 2 PCS SET |
$57.16
|
1 |
|
usually ships 16-41 days |
17 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
2 |
(nut) |
usually ships 1-5 days |
18 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
2 |
(washer) |
usually ships 1-5 days |
19 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
1 |
(screw) |
usually ships 1-5 days |
20 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
1 |
(nut) |
usually ships 1-5 days |
21 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
4 |
(screw) |
usually ships 1-5 days |
22 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
3 |
(cap) |
usually ships 1-5 days |
23 |
272-8408
|
Cap |
$12.31
|
1 |
|
usually ships 1-5 days |
24 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
2 |
(washer) |
usually ships 1-5 days |
25 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
1 |
(screw) |
usually ships 1-5 days |
26 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
2 |
(washer) |
usually ships 1-5 days |
27 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
2 |
(spacer) |
usually ships 1-5 days |
28 |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
2 |
(screw) |
usually ships 1-5 days |
29 |
272-9580
|
Gasket (OBSOLETE) |
$7.70
|
1 |
|
usually ships 1-5 days |
30 |
272-9579
|
Insulator |
$19.98
|
1 |
|
usually ships 16-41 days |
31 |
272-7141
|
24V switch |
$183.90
|
1 |
|
usually ships 16-41 days |
32 |
272-8305
|
24V micro relay |
$40.08
|
1 |
|
usually ships 1-5 days |
33 |
272-9578
|
Dowel |
$7.70
|
1 |
|
usually ships 1-5 days |
34 |
N/A
|
Not available |
Call for price
|
1 |
(Control panel) |
usually ships 3-26 days |
35 |
272-8367
|
24V relay |
$63.07
|
1 |
|
usually ships 16-41 days |
36 |
270-8211
|
Rear panel harness |
$163.46
|
1 |
|
usually ships 1-5 days |
37 |
N/A
|
Not available |
Call for price
|
1 |
(Left side control panel decal) |
usually ships 3-26 days |
N/S |
270-8212
|
Control panel harness |
$80.86
|
1 |
|
usually ships 1-5 days |
N/S |
270-8204
|
Control panel hardware assembly (OBSOLETE) |
$356.62
|
1 |
(includes 1, 8-10, 17-22, and 24-28) |
usually ships 1-5 days |
