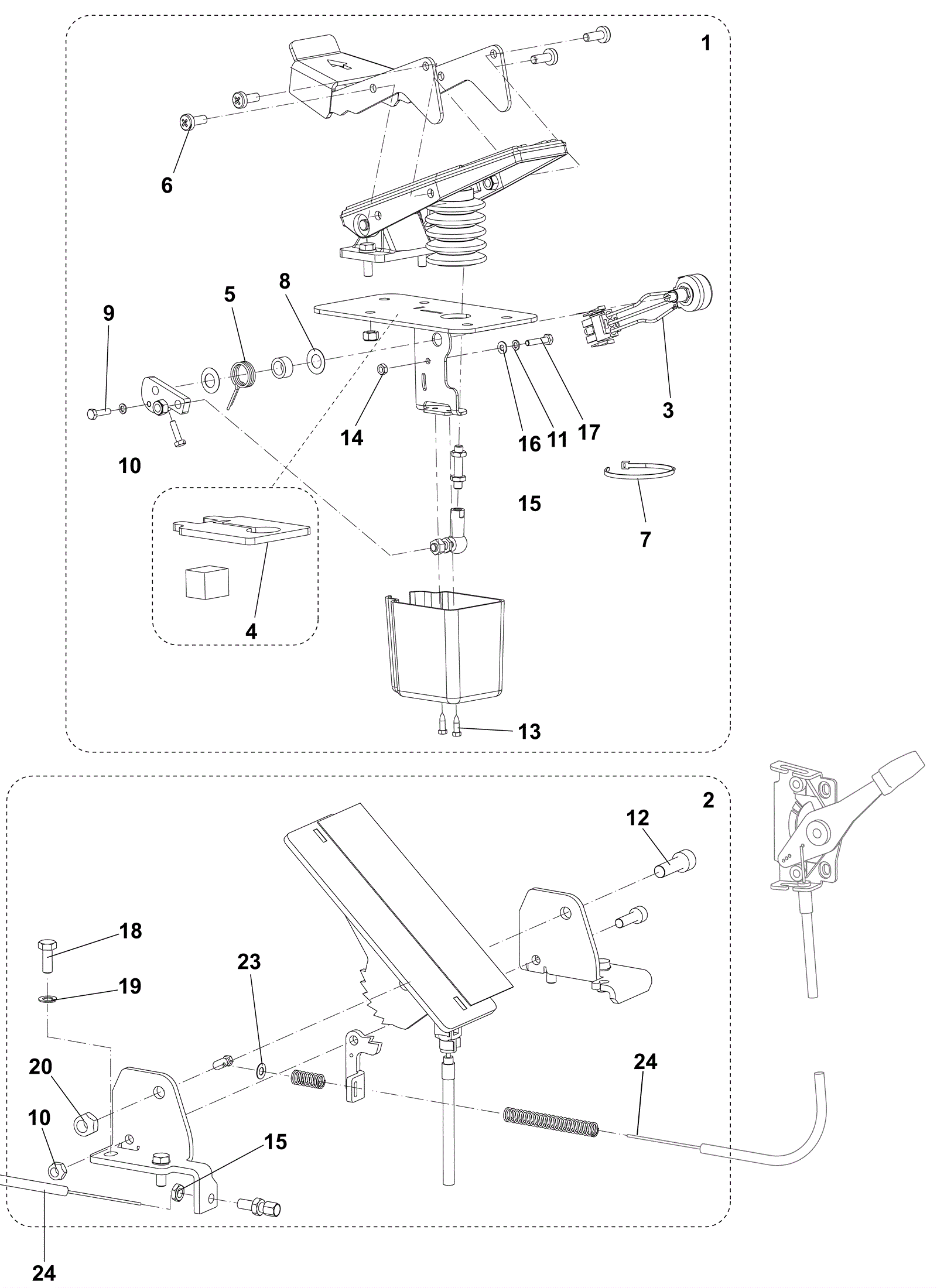

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
270-8199
|
Speed control pedal assembly |
$796.33
|
1 |
(includes 3-11, and 13-17) |
usually ships 1-5 days |
2 |
270-8200
|
Brake pedal assembly (OBSOLETE) |
$378.84
|
1 |
(includes 10, 12, 15, 18-20, and 23-25) |
usually ships 16-41 days |
3 |
272-8953
|
Pedal wiring |
$222.53
|
1 |
|
usually ships 16-41 days |
4 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(pedal gasket) |
usually ships 1-5 days |
5 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(pedal spring) |
usually ships 1-5 days |
6 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
4 |
(screw M6 x 16) |
usually ships 1-5 days |
7 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(cable tie) |
usually ships 1-5 days |
8 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
2 |
(washer) |
usually ships 1-5 days |
9 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
2 |
(screw M4 x 16) |
usually ships 1-5 days |
10 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
8 |
(nut M6) |
usually ships 1-5 days |
11 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
2 |
(spring lock washer) |
usually ships 1-5 days |
12 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(screw M8 x 25) |
usually ships 1-5 days |
13 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
2 |
(screw) |
usually ships 1-5 days |
14 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(nut M4) |
usually ships 1-5 days |
15 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
3 |
(nut M6) |
usually ships 1-5 days |
16 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(flat washer 4.3 x 9) |
usually ships 1-5 days |
17 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(screw M4 x 20) |
usually ships 1-5 days |
18 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
4 |
(screw M6 x 16) |
usually ships 1-5 days |
19 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
4 |
(spring lock washer) |
usually ships 1-5 days |
20 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(nut M8) |
usually ships 1-5 days |
23 |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(washer) |
usually ships 1-5 days |
24 |
270-8203
|
Brake cable |
$86.09
|
1 |
|
usually ships 1-5 days |
KIT |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(includes 4-23 and not shown items below) |
usually ships 1-5 days |
N/S |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(flat washer 5 x 10) |
usually ships 1-5 days |
N/S |
270-8202
|
Pedal hardware assembly (OBSOLETE) |
$371.36
|
1 |
(parking break spring) |
usually ships 1-5 days |
