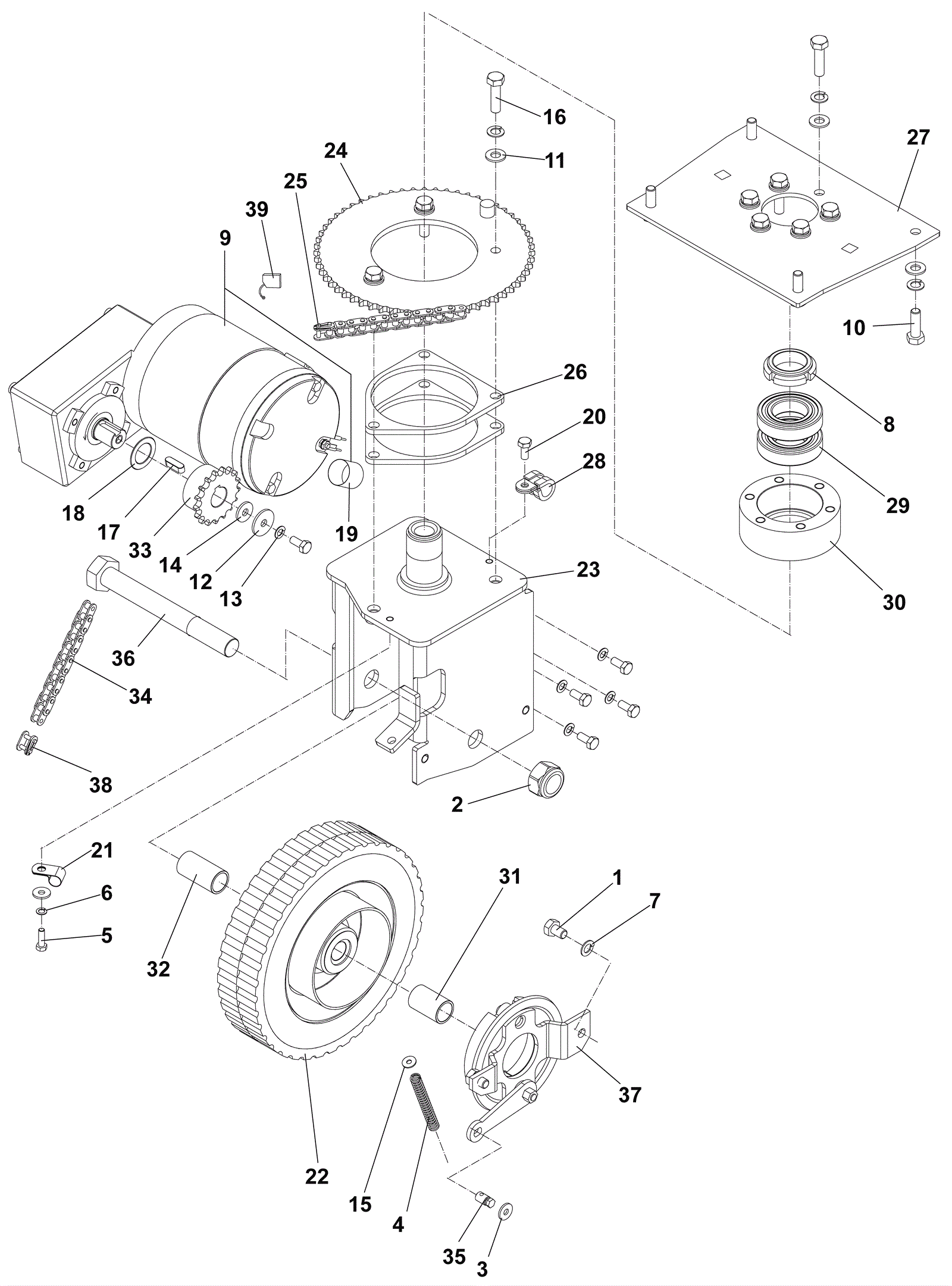

RSW 37 Drive System Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8184 Drive assembly hardware $343.86 2 (screw M8 x 12) usually ships 1-5 days
2 270-8184 Drive assembly hardware $343.86 1 (nut M18) usually ships 1-5 days
3 270-8184 Drive assembly hardware $343.86 2 (washer) usually ships 1-5 days
4 172-3757 Spring $10.01 1 usually ships 1-5 days
5 270-8184 Drive assembly hardware $343.86 1 (screw M5 x 16) usually ships 1-5 days
6 270-8184 Drive assembly hardware $343.86 1 (washer) usually ships 1-5 days
7 270-8184 Drive assembly hardware $343.86 15 (washer 8) usually ships 1-5 days
8 270-8184 Drive assembly hardware $343.86 1 (nut) usually ships 1-5 days
9 270-8185 24V motor and gearbox assembly $3,368.63 1 usually ships 1-5 days
10 270-8184 Drive assembly hardware $343.86 4 (screw M8 x 25) usually ships 1-5 days
11 270-8184 Drive assembly hardware $343.86 13 (flat washer 8 x 17) usually ships 1-5 days
12 270-8184 Drive assembly hardware $343.86 1 (flat washer 6 x 24) usually ships 1-5 days
13 270-8184 Drive assembly hardware $343.86 5 (washer 6) usually ships 1-5 days
14 270-8184 Drive assembly hardware $343.86 1 (flat washer 6 x 18) usually ships 1-5 days
15 270-8184 Drive assembly hardware $343.86 1 (flat washer 4 x 12) usually ships 1-5 days
16 270-8184 Drive assembly hardware $343.86 9 (screw M8 x 30) usually ships 1-5 days
17 270-8184 Drive assembly hardware $343.86 1 (key) usually ships 1-5 days
18 270-8184 Drive assembly hardware $343.86 1 (spacer) usually ships 1-5 days
19 270-8186 Sheath (OBSOLETE) $63.47 1 usually ships 1-5 days
20 270-8184 Drive assembly hardware $343.86 6 (screw 6 x 14) usually ships 1-5 days
21 N/A Not available Call for price 1 (Clamp) usually ships 3-26 days
22 272-7387 Wheel $559.04 1 (Wheel contains the sprocket. Must purchase this wheel to get the sprocket.) usually ships 16-41 days
23 270-8187 Front wheel support (OBSOLETE) $187.99 1 usually ships 1-5 days
24 270-8188 Steering gear (OBSOLETE) $104.72 1 usually ships 1-5 days
25 270-0852 Chain (69 links) $68.75 1 usually ships 1-5 days
26 N/A Not available Call for price 2 (Steering gear spacer) usually ships 3-26 days
27 N/A Not available Call for price 1 (Wheel support plate) usually ships 3-26 days
28 270-8189 Hose clamp $12.31 1 usually ships 1-5 days
29 270-8190 Ball bearing $109.81 2 usually ships 1-5 days
30 270-8191 Flange (OBSOLETE) $256.85 1 usually ships 1-5 days
31 270-8192 Spacer (OBSOLETE) $9.90 1 usually ships 16-41 days
32 270-8193 Spacer (OBSOLETE) $8.80 1 usually ships 16-41 days
33 270-8194 Pinion $172.76 1 usually ships 16-41 days
34 270-0853 Chain (35 links) $87.54 1 usually ships 16-41 days
35 270-8195 Cable clamp $10.01 1 usually ships 1-5 days
36 270-8196 Pin $37.40 1 usually ships 1-5 days
37 270-8197 Brake $206.91 1 usually ships 1-5 days
38 270-8198 Master link (OBSOLETE) $11.69 1 (included with chain and not sold separately) usually ships 16-41 days
39 N/A Not available Call for price 4 (Carbon brush) usually ships 3-26 days
N/S 270-8184 Drive assembly hardware $343.86 1 (includes 1-3, 5-8, 10-18, and 20) usually ships 1-5 days
