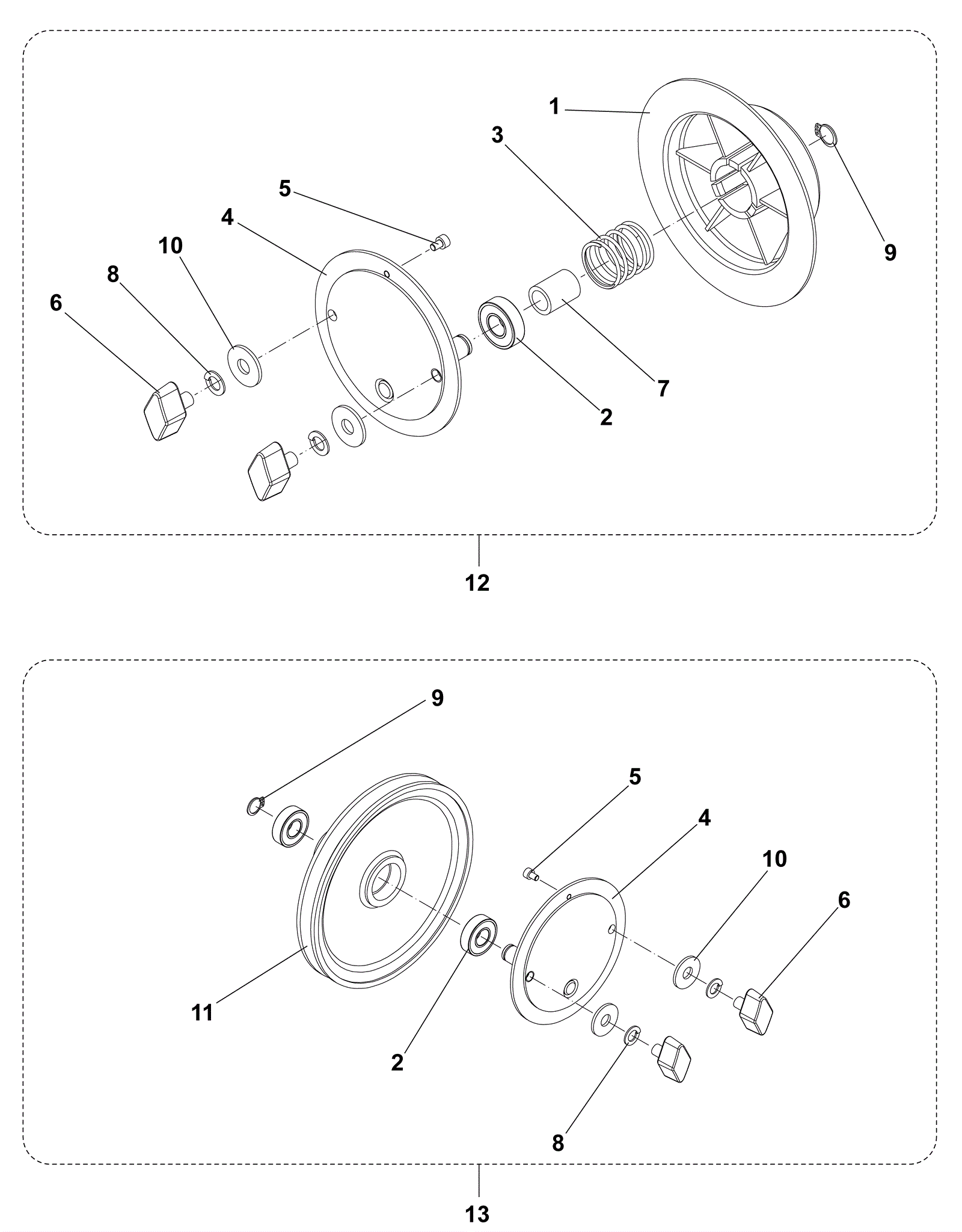

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
270-8164
|
Left side hub assembly |
$436.79
|
1 |
(left hub) |
usually ships 16-41 days |
2a |
270-8164
|
Left side hub assembly |
$436.79
|
3 |
(ball bearing) |
usually ships 16-41 days |
2b |
270-8165
|
Right side hub assembly |
$452.27
|
3 |
(ball bearing) |
usually ships 16-41 days |
3 |
270-8164
|
Left side hub assembly |
$436.79
|
1 |
(spring) |
usually ships 16-41 days |
4a |
270-8164
|
Left side hub assembly |
$436.79
|
2 |
(pin) |
usually ships 16-41 days |
4b |
270-8165
|
Right side hub assembly |
$452.27
|
2 |
(pin) |
usually ships 16-41 days |
5a |
270-8164
|
Left side hub assembly |
$436.79
|
2 |
(screw M4 x 6) |
usually ships 16-41 days |
5b |
270-8165
|
Right side hub assembly |
$452.27
|
2 |
(screw M4 x 6) |
usually ships 16-41 days |
6a |
270-8164
|
Left side hub assembly |
$436.79
|
4 |
(knob) |
usually ships 16-41 days |
6b |
270-8165
|
Right side hub assembly |
$452.27
|
4 |
(knob) |
usually ships 16-41 days |
7 |
270-8164
|
Left side hub assembly |
$436.79
|
1 |
(spacer) |
usually ships 16-41 days |
8a |
270-8164
|
Left side hub assembly |
$436.79
|
4 |
(washer) |
usually ships 16-41 days |
8b |
270-8165
|
Right side hub assembly |
$452.27
|
4 |
(washer) |
usually ships 16-41 days |
9a |
270-8164
|
Left side hub assembly |
$436.79
|
2 |
(retaining ring) |
usually ships 16-41 days |
9b |
270-8165
|
Right side hub assembly |
$452.27
|
2 |
(retaining ring) |
usually ships 16-41 days |
10a |
270-8164
|
Left side hub assembly |
$436.79
|
4 |
(flat washer) |
usually ships 16-41 days |
10b |
270-8165
|
Right side hub assembly |
$452.27
|
4 |
(flat washer) |
usually ships 16-41 days |
11 |
270-8165
|
Right side hub assembly |
$452.27
|
1 |
(pulley) |
usually ships 16-41 days |
12 |
270-8164
|
Left side hub assembly |
$436.79
|
1 |
(includes 1-10) |
usually ships 16-41 days |
13 |
270-8165
|
Right side hub assembly |
$452.27
|
1 |
(includes 2, 4, 5, 6, and 8-11) |
usually ships 16-41 days |
