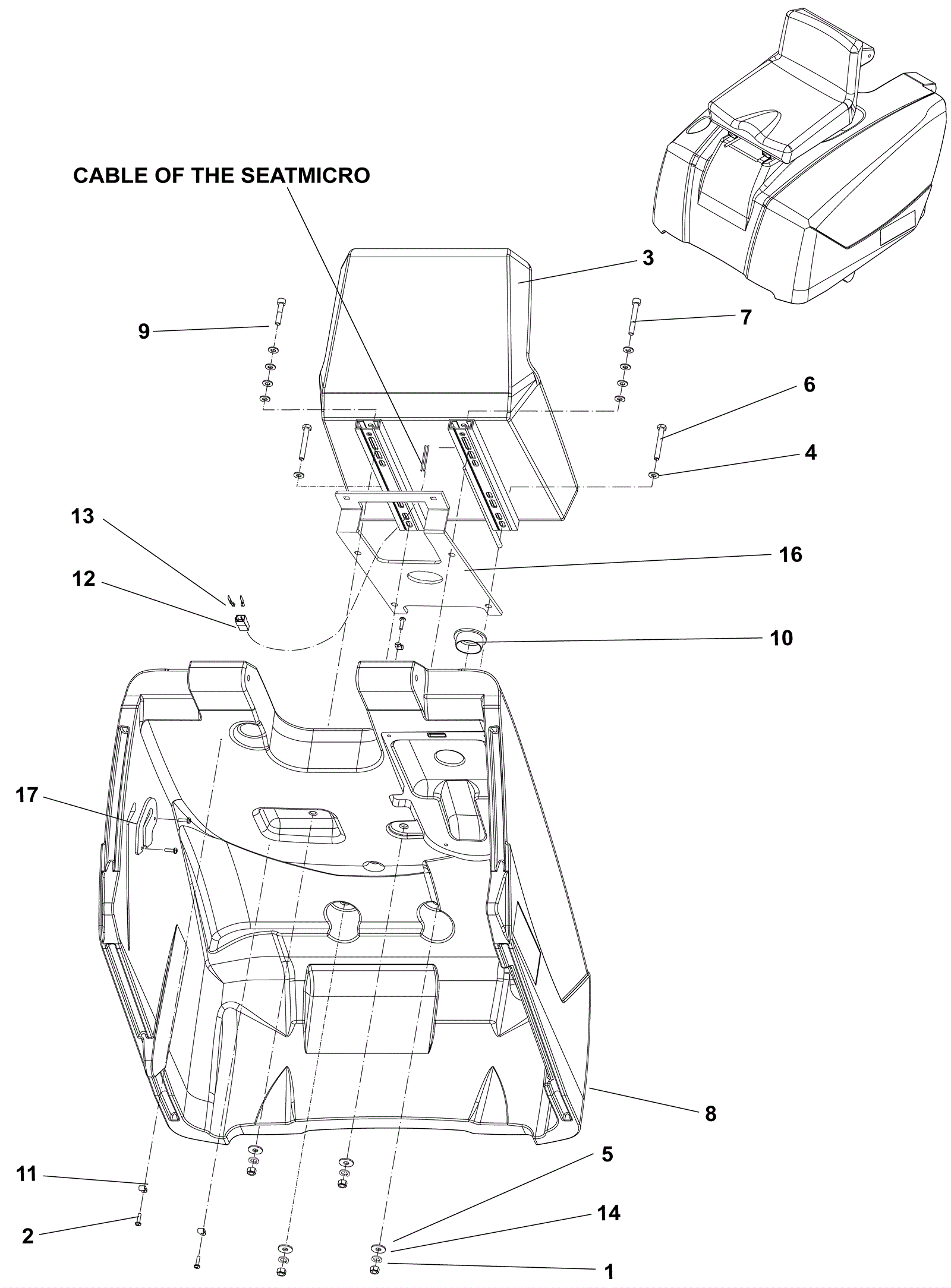

RSW 37 Bonnet Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8156 Bonnet system hardware assembly $374.00 4 (nut M8) usually ships 1-5 days
2 270-8156 Bonnet system hardware assembly $374.00 3 (screw 4.6 x 19.2) usually ships 1-5 days
3a 272-8275 Seat with microswitch $842.34 1 usually ships 16-41 days
3b 272-8418 Microswitch $87.54 1 usually ships 16-41 days
4 270-8156 Bonnet system hardware assembly $374.00 10 (washer M8 x 17) usually ships 1-5 days
5 270-8156 Bonnet system hardware assembly $374.00 4 (washer M8 x 24) usually ships 1-5 days
6 270-8156 Bonnet system hardware assembly $374.00 2 (screw M8 x 60) usually ships 1-5 days
7 270-8156 Bonnet system hardware assembly $374.00 1 (screw M8 x 60) usually ships 1-5 days
8 N/A Not available Call for price 1 (Battery hood) usually ships 3-26 days
9 270-8156 Bonnet system hardware assembly $374.00 1 (screw M8 x 40) usually ships 1-5 days
10 270-8157 Cap (OBSOLETE) $8.25 1 usually ships 1-5 days
11 270-8156 Bonnet system hardware assembly $374.00 3 (cable clamp) usually ships 1-5 days
12 270-8159 Terminal (OBSOLETE) $8.47 2 usually ships 1-5 days
13 270-8158 Connector (OBSOLETE) $8.47 1 usually ships 1-5 days
14 270-8156 Bonnet system hardware assembly $374.00 4 (washer M8) usually ships 1-5 days
16 N/A Not available Call for price 1 (Seat support) usually ships 3-26 days
17 N/A Not available Call for price 1 (Reinforced plate) usually ships 3-26 days
N/S 270-8156 Bonnet system hardware assembly $374.00 1 (includes 1, 2, 4-7, 9, 11, and 14) usually ships 1-5 days
