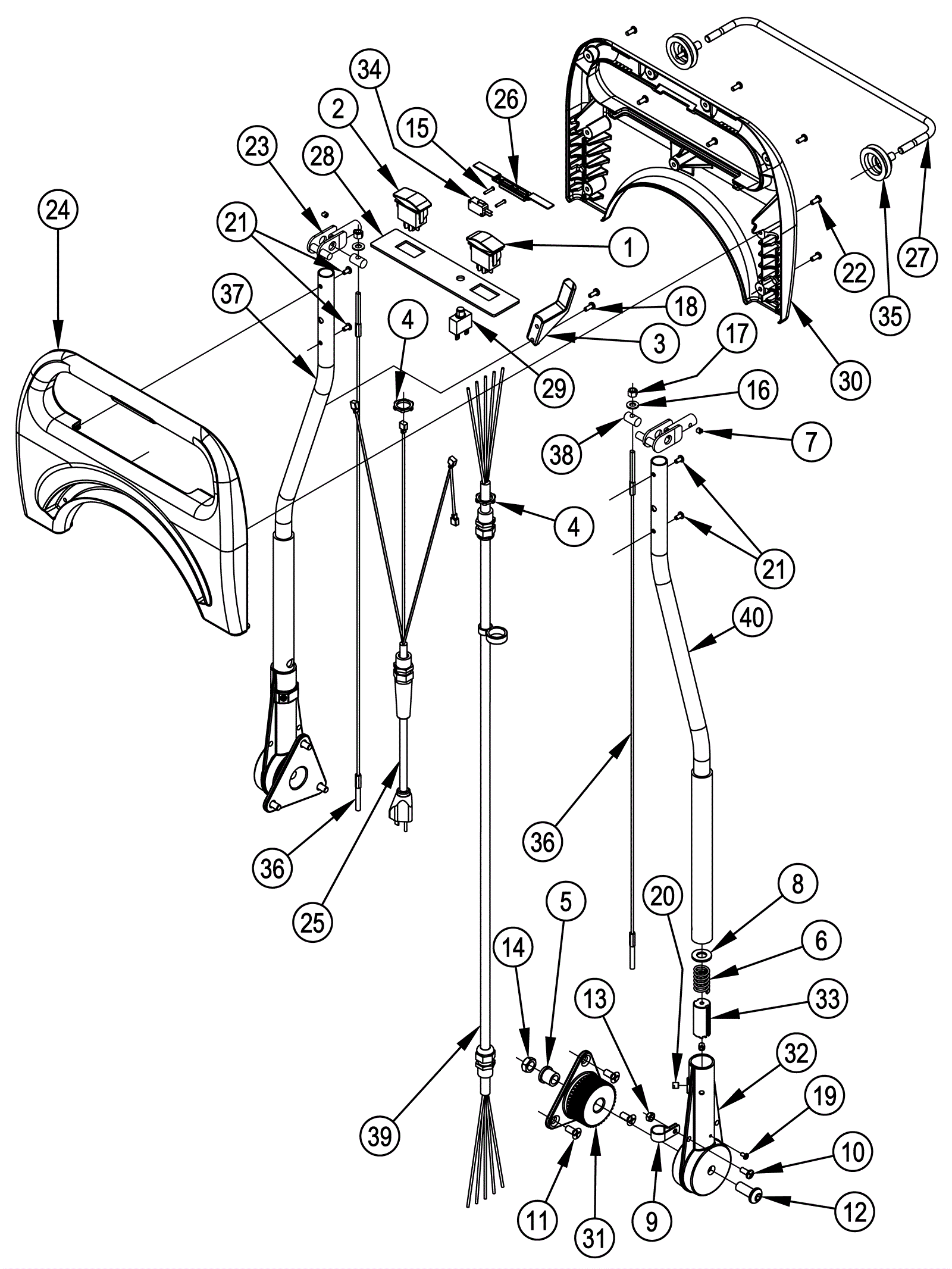

Handle Assembly

#PartDescription ReqNotesAvailability
1 272-0486 3 position rocker switch 1 (vacuum)
2 272-0487 2 position rocker switch 1 (solution)
3 172-4104 Cord hook 1
4 172-4536 Nut 1/2-14 conduit lock 2
5 172-4090 Flanged bearing 2
6 172-2141 Compression spring (OBSOLETE) 2
7 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
8 172-4548 Washer 33/64 x 15/16 x 1/16 flat 2
9 172-2122 P clamp 1
10 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
11 999-1258 Screw 5/16-18 x 3/4 flat head phillips stainless steel 6
12 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 2
13 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
14 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 2
15 172-1285 Screw 1/4-20 x 5/8 pan head phillips plastite 2
16 999-0123 Washer 1/4 SAE flat zinc plated 2
17 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel 2
18 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
19 999-0794 Screw 8-32 x 5/16 pan head phillips stainless steel 2
20 999-1840 Screw 5/16-18 x 5/16 knurled point socket set alloy steel 4
21 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 4
22 182-0034 Screw 10-14 x 1/2 pan head plastite 9
23 272-0492 Handle pivot kit 2
24 272-0493 Front handle cover (OBSOLETE) 1
25 272-0494 14/3 power cord 50 foot 1
26 272-0495 Spray button 1
27 272-0496 Handle release bail 1
28 272-0497 Control panel plate 1
29 170-5173 Circuit breaker 1
30 272-0499 Rear handle cover (OBSOLETE) 1
31 272-0500 Handle gear (OBSOLETE) 2
32 272-9546 Handle socket 2
33 272-0502 Handle lock (OBSOLETE) 2
34 272-0503 Snap action switch 1
35 272-0504 Handle bellows 2
36 272-0505 Wire rope assembly 2
37 272-1124 Right side handle tube 1
38 272-0492 Handle pivot kit 1
