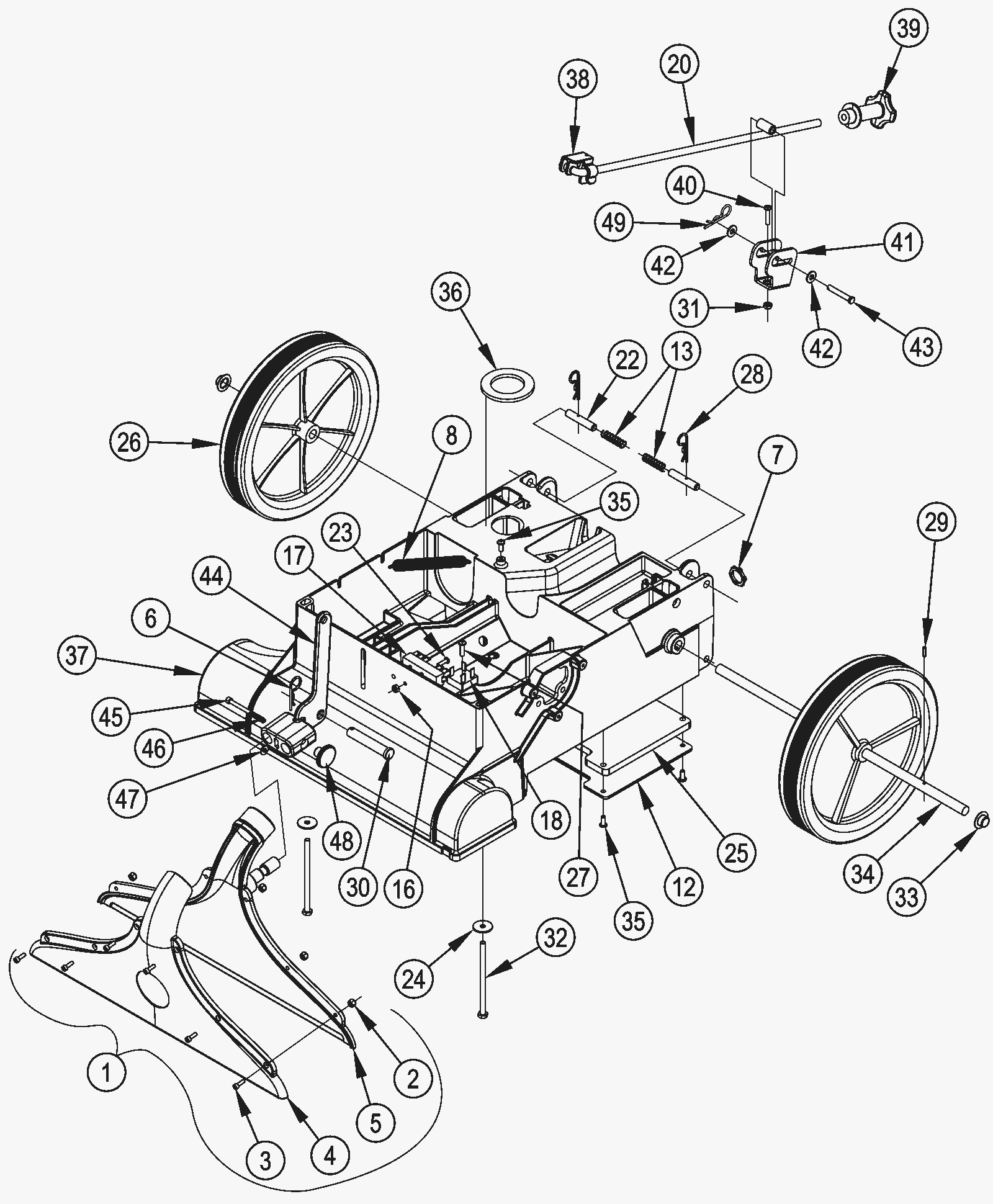

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
272-0510
|
16 inch shoe assembly (OBSOLETE) |
1 |
(Clean Track S16) (includes 2-5) |
|
1b |
272-0511
|
18 inch shoe assembly (OBSOLETE) |
1 |
(Clean Track L18) (includes 2-5) |
|
2 |
999-1036
|
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
6 |
|
|
3 |
999-1206
|
Screw 8-32 x 1/2 socket head stainless steel |
6 |
|
|
4a |
N/A
|
Not available |
1 |
(16 inch front shoe, only available in 272-0510) |
|
4b |
N/A
|
Not available |
1 |
(18 inch rear shoe, only available in 272-0511) |
|
5a |
N/A
|
Not available |
1 |
(16 inch front shoe, only available in 272-0510) |
|
5b |
N/A
|
Not available |
1 |
(18 inch rear shoe, only available in 272-0511) |
|
6 |
172-2001
|
Hair cotter pin |
1 |
|
|
7 |
172-4536
|
Nut 1/2-14 conduit lock |
1 |
|
|
8 |
172-4025
|
Extension spring 1/2 x 6 1/4 (OBSOLETE) |
1 |
|
|
12 |
272-0513
|
Exhaust panel (OBSOLETE) |
1 |
|
|
13 |
172-3201
|
Spring |
2 |
|
|
16 |
999-1036
|
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
1 |
|
|
17 |
172-4012
|
Terminal block |
1 |
|
|
18 |
172-4139
|
35amp rectifier |
1 |
|
|
20 |
272-0528
|
Brush adjustment rod |
1 |
|
|
22 |
272-0529
|
Pivot pin (OBSOLETE) |
2 |
|
|
23 |
999-0358
|
Screw 8-32 x 5/8 pan head phillips stainless steel |
1 |
|
|
24 |
172-0548
|
Washer 17/64 x 47/64 flat stainless steel |
2 |
|
|
25 |
272-0530
|
Exhaust gasket (OBSOLETE) |
1 |
|
|
26 |
172-4016
|
10 inch wheel |
2 |
|
|
27 |
272-9542
|
Screw 10-14 x 3/4 pan head plastite |
1 |
|
|
28 |
997-2511
|
Cotter pin |
2 |
|
|
29 |
272-9543
|
Pin |
1 |
|
|
30 |
272-0531
|
Clevis pin |
1 |
|
|
31 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
32 |
272-0532
|
Screw 1/4-20 x 4 1/2 hex lock stainless steel |
2 |
|
|
33 |
172-4017
|
1/2 inch push cap |
2 |
|
|
34 |
272-0533
|
Axle |
1 |
|
|
35 |
272-9978
|
Screw 10-14 x 1/2 pan head phillips plastite |
5 |
|
|
36 |
272-0534
|
Gasket ring |
1 |
|
|
37a |
272-0535
|
16 inch base |
1 |
(Clean Track S16) |
|
37b |
272-0536
|
18 inch base OBSOLETE |
1 |
(Clean Track L18) |
|
38 |
272-0537
|
Rod clip (OBSOLETE) |
1 |
|
|
39 |
272-0538
|
Brush adjustment knob |
1 |
|
|
40 |
999-0400
|
Screw 10-24 x 1 pan head phillips zinc plated |
1 |
|
|
41 |
272-0539
|
Adjustment latch |
1 |
|
|
42 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
43 |
172-4397
|
Pin 1/4 x 1-5/8 |
1 |
|
|
44 |
272-5337
|
Brush adjustment lever (OBSOLETE) |
1 |
|
|
45 |
272-5338
|
Screw 10-32 x 1 1/2 socket head stainless steel |
1 |
|
|
46 |
172-4632
|
Spring |
1 |
|
|
47 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
|
|
48 |
272-5339
|
Knob |
1 |
|
|
49 |
170-7782
|
Cotter hair pin (OBSOLETE) |
1 |
|
|
