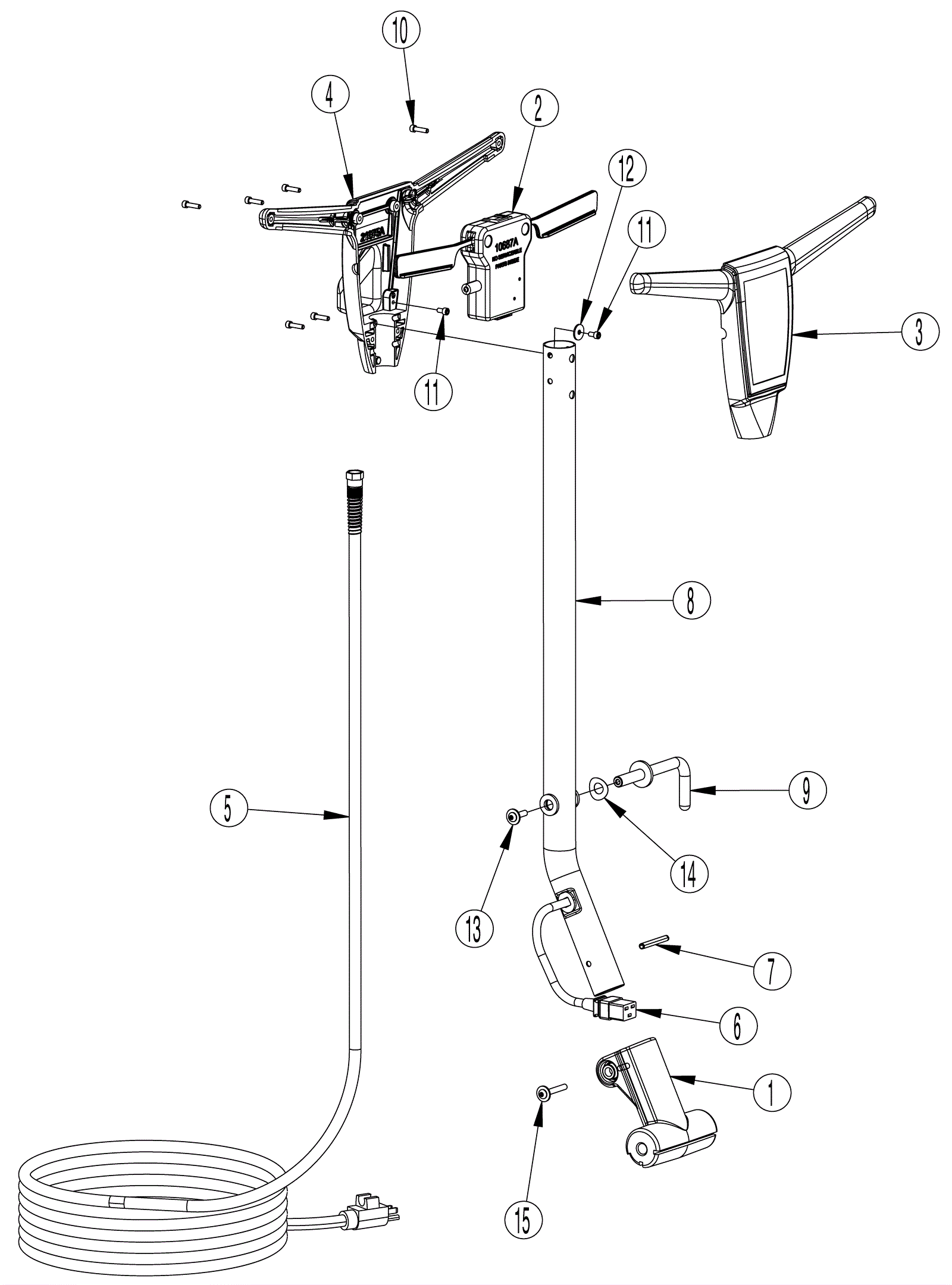

US1500DC Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-8963 Handle mount $69.17 1 usually ships 1-5 days
2 270-0077 Switch assembly $138.15 1 ships same day
3 270-0143 Front handle $105.70 1 ships same day
4 270-0145 Rear handle $174.31 1 ships same day
5 170-8964 Power cord $292.94 1 (US1500DC and US2000DC) usually ships 13-18 days
6 170-8966 Interconnect cord $32.15 1 (US1500DC and US2000DC) usually ships 13-18 days
7 272-8750 Coiled pin $25.75 1 usually ships 1-5 days
8 272-8752 Handle tube weldment (OBSOLETE) $42.19 1 usually ships 13-18 days
9 272-8749 Cord wrap $16.09 1 usually ships 1-5 days
10 999-1275 Screw 10-32 x 3/4 hex head stainless steel $1.23 6 ships same day
11 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 2 ships same day
12 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
13 272-8200 Button head screw $2.63 1 ships same day
14 272-8202 Bowed washer $1.94 1 usually ships 12-15 days
15 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish $0.99 1 ships same day
