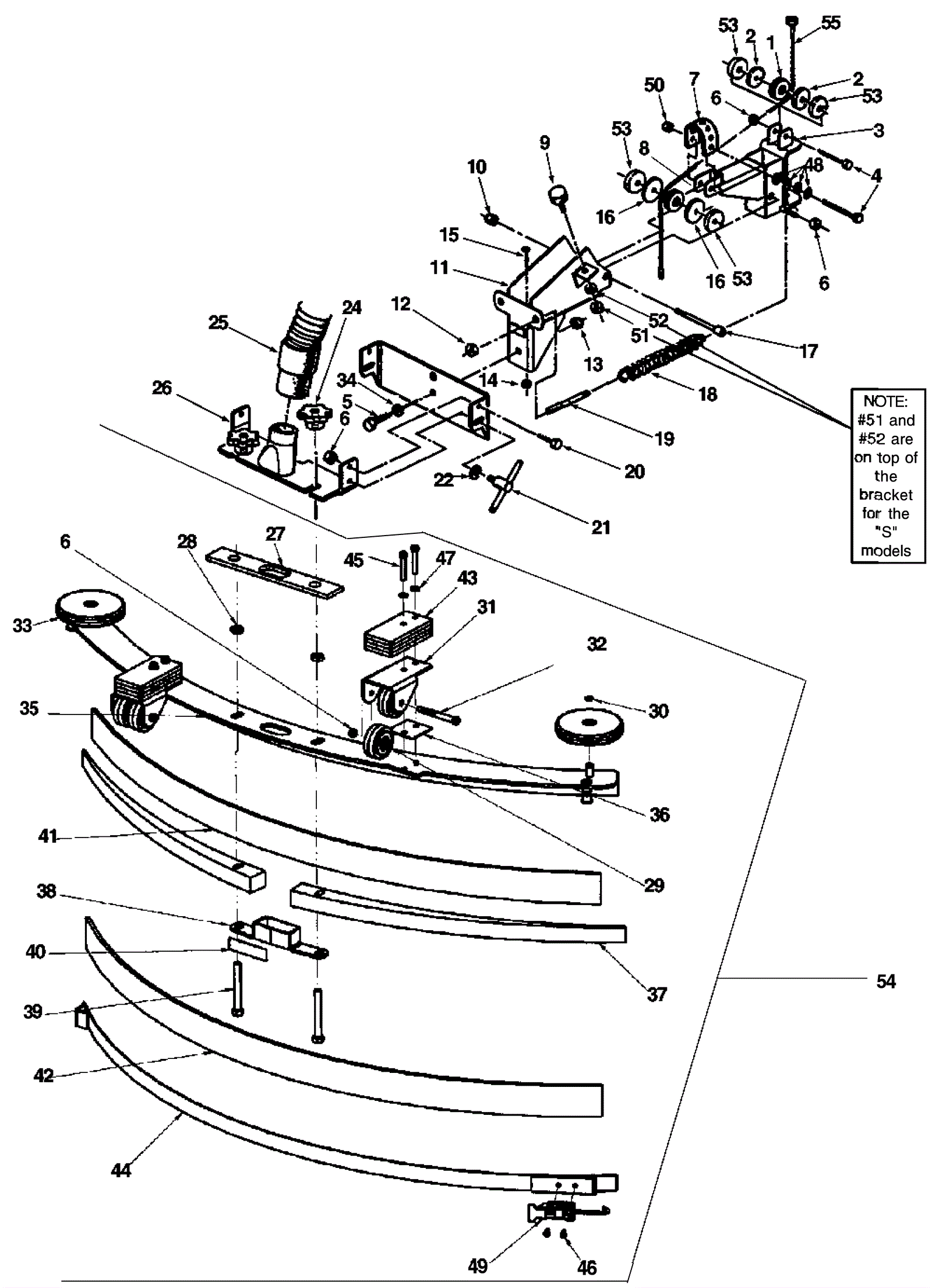

BOOST 32 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 372-2615 Squeegee pulley cable Call for price 2 usually ships 13-16 days
2 170-7109 Washer 1 1/4 nylon Call for price 2 usually ships 13-16 days
3 170-7110 Front swing arm Call for price 1 usually ships 13-16 days
4 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel Call for price 2 usually ships 11-14 days
5 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel Call for price 1 usually ships 14-19 days
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel Call for price 6 usually ships 11-14 days
7 170-7111 Strap Call for price 1 usually ships 13-16 days
8 170-7112 Lower cable Call for price 1 usually ships 13-16 days
9 170-7113 Bumper Call for price 1 usually ships 13-16 days
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated Call for price 1 usually ships 11-14 days
11 170-7114 Rear swing arm Call for price 1 usually ships 13-16 days
12 999-0069 Nut 5/16-18 hex Call for price 2 usually ships 11-14 days
13 999-0188 Nut 3/8-16 nylon insert lock zinc plated Call for price 1 usually ships 11-14 days
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated Call for price 1 usually ships 11-14 days
15 999-0267 Screw 10-24 x 1/2 pan head phillips zinc Call for price 1 usually ships 11-14 days
16 170-7115 Washer 1 1/2 x 1/8 flat nylon Call for price 2 usually ships 13-16 days
17 170-2069 Screw 3/8-16 x 2 shoulder Call for price 1 usually ships 1-5 days
18 170-7116 Squeegee pressure spring Call for price 2 usually ships 13-16 days
19 170-7117 Stud (OBSOLETE) Call for price 2 usually ships 13-16 days
20 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel Call for price 2 usually ships 16-20 days
21 170-0714 T-handle Call for price 3 usually ships 13-16 days
22 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel Call for price 1 usually ships 11-14 days
23 170-7118 Squeegee mounting bracket Call for price 1 usually ships 13-16 days
24 170-0171 Knob Call for price 2 usually ships 13-16 days
25 170-7084 Squeegee vacuum hose with 1 cuff Call for price 1 usually ships 13-16 days
26 170-7119 Squeegee hose bracket Call for price 1 usually ships 13-16 days
27 170-9420 Gasket Call for price 1 usually ships 13-16 days
28 999-0628 Nut 3/8-16 hex jam stainless steel Call for price 2 usually ships 11-14 days
29 170-7169 Squeegee wheel Call for price 2 usually ships 13-16 days
30 170-7333 Snap ring Call for price 2 usually ships 13-16 days
31 170-7168 Squeegee wheel bracket Call for price 2 usually ships 13-16 days
32 170-7170 Bolt 5/16 x 2 1/4 shoulder Call for price 2 usually ships 13-16 days
33 170-7172 4 inch guide wheel Call for price 2 usually ships 13-16 days
34 999-0617 Washer 3/8 x 1 flat stainless steel Call for price 1 usually ships 11-14 days
35 270-0132 41 inch squeegee weldment Call for price 1 usually ships 1-5 days
36 170-7177 Shim Call for price 2 usually ships 13-16 days
37 270-0135 41 inch squeegee spacer Call for price 2 usually ships 13-16 days
38 170-7126 Air duct (OBSOLETE) Call for price 1 usually ships 13-16 days
39 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized Call for price 2 usually ships 11-14 days
40 170-0166 Squeegee gripping pad Call for price 1 usually ships 13-16 days
41 270-0083 Squeegee blade 41 inch gum rubber front BOOST Call for price 1 usually ships 13-16 days
42 270-0084 Squeegee blade 41 inch linatex rear BOOST Call for price 1 usually ships 13-16 days
43 170-7338 Squeegee weight Call for price 8 usually ships 13-16 days
44 270-0133 41 inch retainer clamp strap Call for price 1 usually ships 13-16 days
45 999-9073 Screw 12-24 x 1 hex head slotted zinc indent Call for price 4 usually ships 1-5 days
46 170-7163 Aluminum rivet Call for price 2 usually ships 14-19 days
47 999-0060 Washer 1/4 split lock plain finish Call for price 4 usually ships 11-14 days
48 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel Call for price 4 usually ships 11-14 days
49 170-7162 Clamp latch Call for price 1 usually ships 13-16 days
50 999-0609 Nut 1/4-20 hex stainless steel Call for price 1 usually ships 11-14 days
51 999-0190 Nut 1/4-20 hex plain finish Call for price 1 usually ships 11-14 days
52 999-0060 Washer 1/4 split lock plain finish Call for price 1 usually ships 11-14 days
53 170-7132 Washer 1 1/4 Call for price 4 usually ships 14-19 days
54 270-0649 41 inch squeegee assembly (OBSOLETE) Call for price 1 usually ships 13-16 days
55 999-1650 Nut 1/4-28 hex jam stainless steel Call for price 1 usually ships 11-14 days
