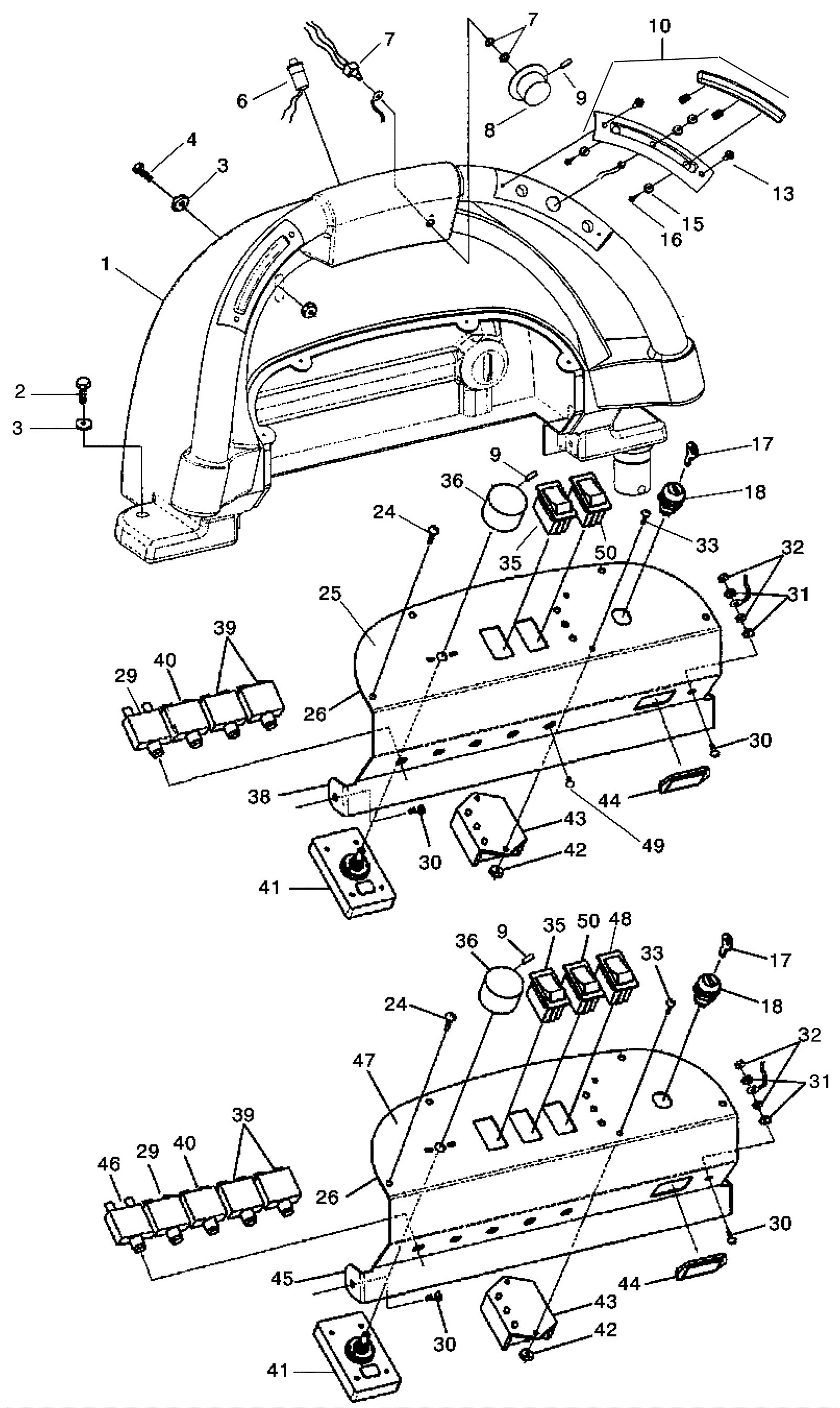

BOOST 32 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-7408 Control handle $275.00 1 usually ships 1-5 days
2 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
3 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 6 ships same day
4 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
5 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
6 170-7409 Push button reverse switch $90.43 1 usually ships 16-41 days
7 170-7411 Potentiometer harness assembly $75.67 1 usually ships 16-41 days
8 170-1876 Traverse control knob $49.63 1 (includes 9) usually ships 16-41 days
9 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 2 ships same day
10a 170-1885 Switch lever housing $54.11 2 (includes 10b) ships same day
10b 170-1887 Switch spring $11.69 2 usually ships 1-5 days
13 999-0851 Screw 10-32 x 1/2 round head slotted nylon $0.99 4 ships same day
15 999-0412 Washer #8 SAE flat $0.99 4 ships same day
16 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 4 ships same day
17 170-8937 Key $13.76 1 ships same day
18a 170-9026 Key switch $69.01 1 (includes 17) usually ships 16-41 days
18b 272-8524 Key switch spacer $12.31 1 usually ships 1-5 days
24 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 4 ships same day
25 270-0783 Control panel decal (OBSOLETE) $18.29 1 (manual) usually ships 1-5 days
26 170-0059 Gasket $3.28 1 usually ships 1-5 days
29 991-1627 5amp circuit breaker $20.87 1 usually ships 1-5 days
30 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 3 ships same day
31 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
32 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
33 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
35 170-0058 Rocker switch 2 position 6 prong $41.37 1 usually ships 4-15 days
36 170-8261 Knob solution flow module $34.66 1 (includes 9) usually ships 16-41 days
38 270-0784 Control panel (OBSOLETE) $50.49 1 (manual) usually ships 1-5 days
39a 170-9060 30amp circuit breaker $31.10 2 usually ships 1-5 days
39b 991-1625 30amp circuit breaker $12.61 2 (NON-OEM) ships same day
40 991-1632 25amp circuit breaker $7.91 1 ships same day
41 170-9059 Solution control (OBSOLETE) $464.93 1 usually ships 1-5 days
42 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
43 170-7422 Battery charge meter $276.82 1 usually ships 16-41 days
44 270-0785 Panel cover $11.44 1 usually ships 1-5 days
45 270-0786 Control panel (OBSOLETE) $89.10 1 (automatic) usually ships 1-5 days
46 170-0087 1.5amp circuit breaker $33.96 1 (automatic) usually ships 16-41 days
47 270-0787 Control panel decal (OBSOLETE) $18.29 1 (automatic) usually ships 1-5 days
48 170-0089 Rocker switch (OBSOLETE) $26.92 1 (automatic) usually ships 16-41 days
49 270-0788 Plug $12.31 1 (manual) usually ships 1-5 days
50 170-7419 Momentary rocker switch $39.30 1 usually ships 16-41 days
