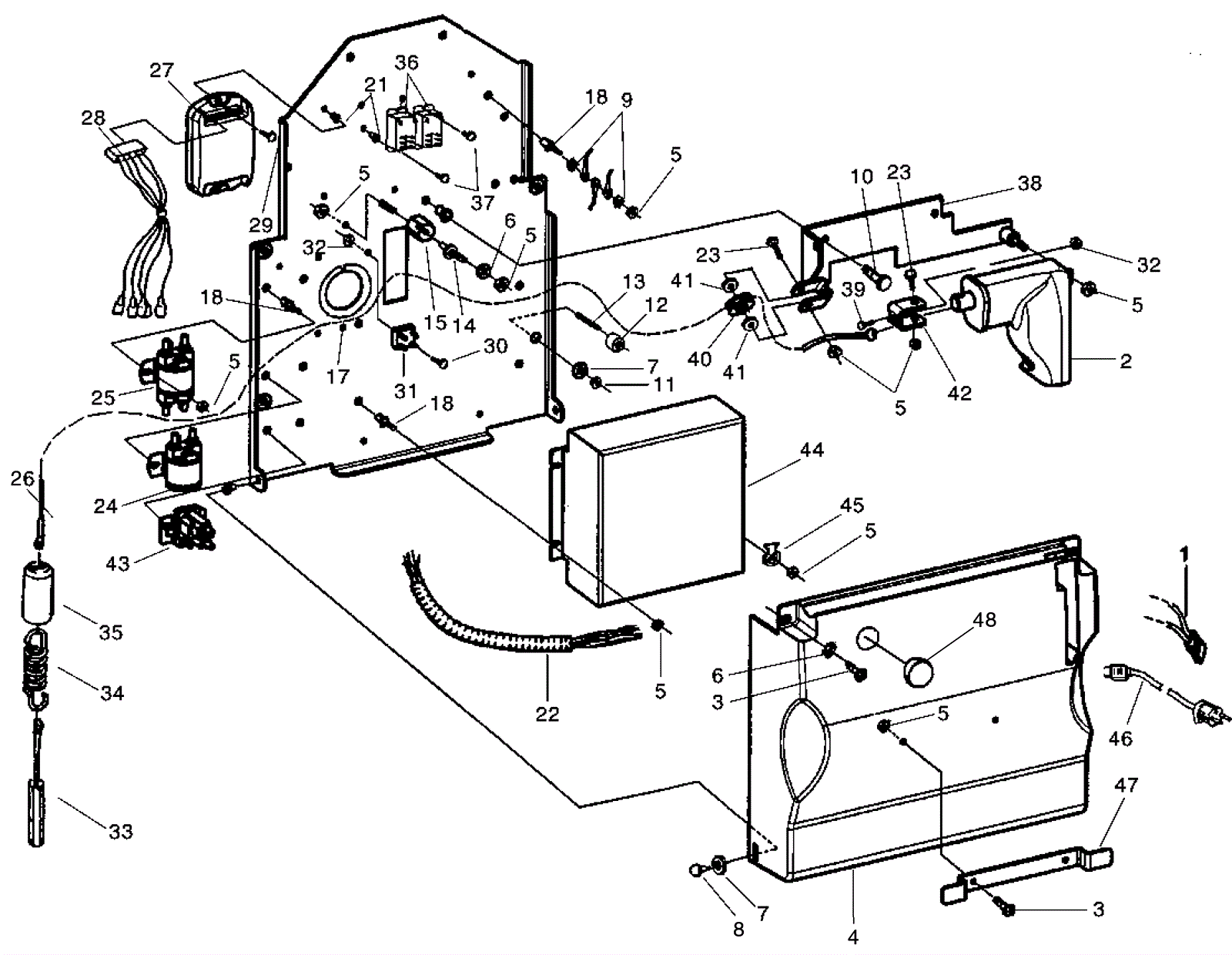

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
270-0019
|
Cable (OBSOLETE) |
1 |
|
|
2 |
170-7863
|
24V squeegee actuator |
1 |
|
|
3 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
2 |
(qty 4 for onboard charger) |
|
4 |
170-7345
|
Rear cover |
1 |
|
|
5 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
16 |
(qty 18 for onboard charger) |
|
6 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
7 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
8 |
170-7389
|
Bolt 5/46 x 1/2 shoulder |
2 |
|
|
9 |
999-0017
|
Washer 1/4 external star lock |
2 |
|
|
10 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
11 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
12 |
170-7391
|
Spacer |
4 |
|
|
13 |
999-9117
|
Screw 5/16-18 x 1 3/4 socket cup point set stainless steel |
4 |
|
|
14 |
170-0064
|
Stud 1/4-20 |
1 |
|
|
15 |
170-0063
|
Insulated stand off |
1 |
|
|
16 |
999-0715
|
Screw 1/4-20 x 3/4 cup point socket set alloy plain finish |
1 |
|
|
17 |
170-7070
|
Gasket |
1 |
|
|
18 |
170-7074
|
Stud 1/4-20 |
5 |
(qty 11 for onboard charger) |
|
19 |
270-0778
|
Electrical panel |
1 |
|
|
20 |
170-7076
|
Insert 1/4-20 |
4 |
|
|
21 |
170-7075
|
Insert 8-32 |
6 |
|
|
22 |
270-0780
|
Main wiring harness (OBSOLETE) |
1 |
|
|
23 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
2 |
|
|
24a |
172-2163
|
24V solenoid 4 post (2 large 2 small) |
1 |
|
|
24b |
991-1226
|
24V solenoid 4 post (2 large 2 small) |
1 |
(NON-OEM) |
|
25 |
170-1931
|
Main solenoid contactor |
1 |
|
|
26 |
170-1623
|
Upper cable assembly (OBSOLETE) |
1 |
|
|
27 |
472-7588
|
I-DRIVE CONTROLLER KIT (OBSOLETE) |
1 |
|
|
28 |
170-7396
|
Traverse harness (OBSOLETE) |
1 |
|
|
29 |
999-0827
|
Screw 8-32 x 1 pan head phillips zinc plated |
2 |
|
|
30 |
999-0314
|
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
|
31 |
163-0063
|
240V rectifier |
1 |
|
|
32 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
33 |
170-1626
|
Cable spring assembly (OBSOLETE) |
1 |
|
|
34 |
170-1625
|
Cable spring |
1 |
|
|
35 |
170-1624
|
Sleeve |
1 |
|
|
36 |
270-0781
|
Relay |
2 |
|
|
37 |
999-0697
|
Screw 8-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
38 |
170-7406
|
Actuator bracket |
1 |
|
|
39 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
|
40 |
372-2615
|
Squeegee pulley cable |
1 |
|
|
41 |
170-7115
|
Washer 1 1/2 x 1/8 flat nylon |
2 |
|
|
42 |
170-1622
|
Pulley bracket |
1 |
|
|
43 |
170-1933
|
Vacuum solenoid (OBSOLETE) |
1 |
|
|
44 |
272-2358
|
24V onboard battery charger |
1 |
(onboard charger only) |
|
45 |
170-7388
|
1/4 tab |
1 |
(onboard charger only) |
|
46 |
170-7385
|
Onboard charger cord |
1 |
(onboard charger only) |
|
47 |
170-7386
|
Cord wrapping bracket |
1 |
(onboard charger only) |
|
48 |
270-0020
|
Hole plug 1 3/8 inch |
1 |
|
|
