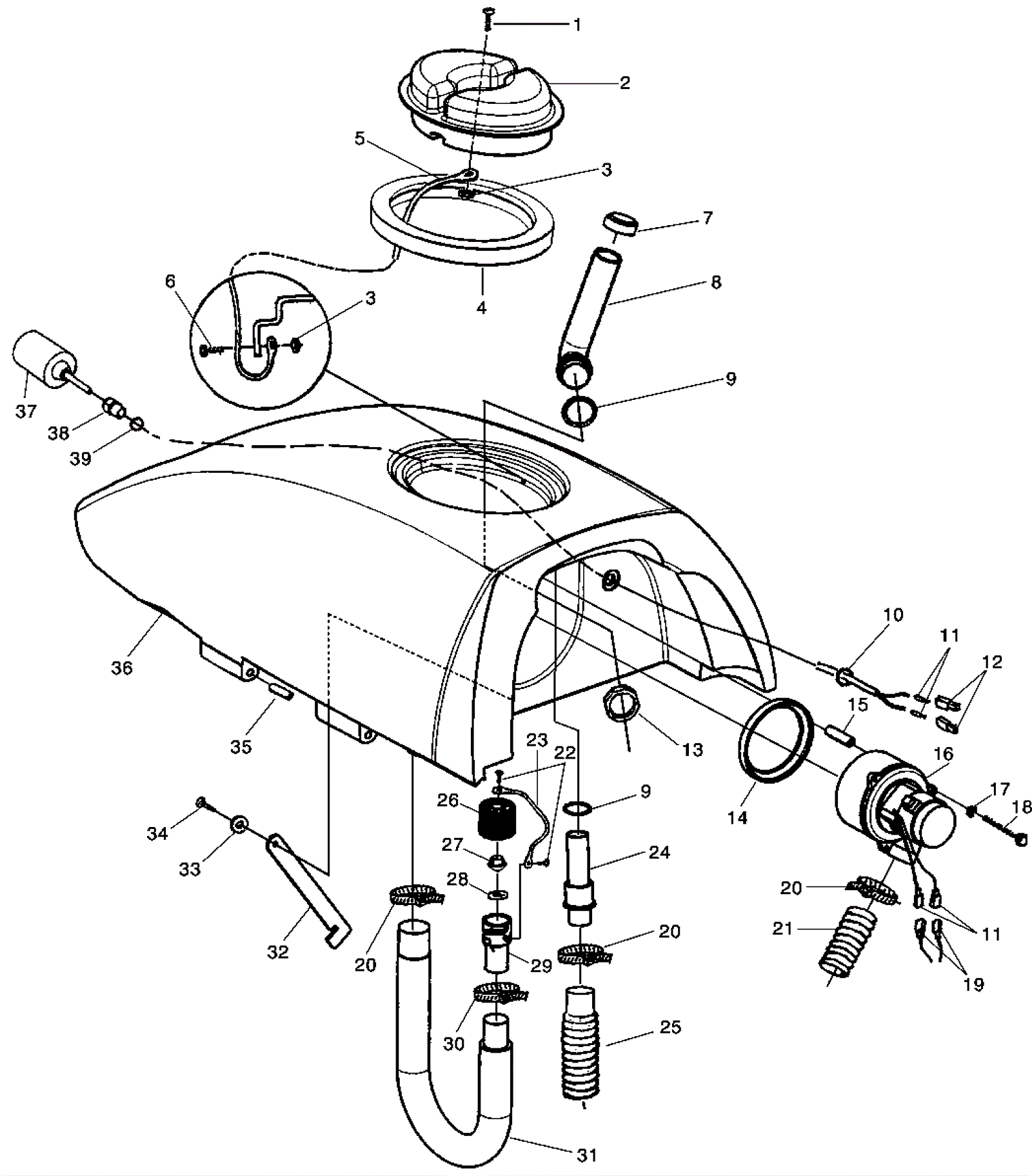

# | Part | Description | Price | Req | Notes | Availability |
1 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
$0.90
|
1 |
|
ships same day |
2 |
170-1936
|
Recovery tank lid |
$129.36
|
1 |
|
ships same day |
3 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
4 |
170-1937
|
Recovery tank lid gasket |
$17.68
|
1 |
|
usually ships 6-18 days |
5 |
170-7089
|
Strap (OBSOLETE) |
$9.60
|
1 |
|
usually ships 6-18 days |
6 |
999-0314
|
Screw 10-24 x 3/4 round head phillips zinc plated |
$0.90
|
1 |
|
ships same day |
7 |
170-7104
|
Vacuum filter screen |
$42.65
|
1 |
|
ships same day |
8 |
170-7080
|
Stand pipe (OBSOLETE) |
$47.90
|
1 |
|
usually ships 6-18 days |
9 |
170-0273
|
O-ring |
$6.79
|
2 |
|
ships same day |
10 |
170-0294
|
Nut 1/2 conduit lock |
$10.90
|
1 |
|
usually ships 6-18 days |
11 |
170-0279
|
Contact |
$1.40
|
4 |
|
usually ships 4-15 days |
12 |
170-0281
|
Connector housing (blue) |
$8.20
|
2 |
|
ships same day |
13 |
170-0647
|
Lock nut |
$10.56
|
1 |
|
ships same day |
14a |
164-0881
|
Vacuum motor gasket |
$13.42
|
1 |
|
usually ships 3-5 days |
14b |
991-3029
|
Vacuum motor gasket |
$2.60
|
1 |
(NON-OEM) |
ships same day |
15 |
170-0274
|
Vacuum motor spacer |
$25.87
|
3 |
|
usually ships 6-18 days |
16a |
172-9139
|
24V 3 stage vacuum motor |
$210.65
|
1 |
(you will also need to order two of 11 and two of 19) |
usually ships 1-5 days |
16b |
170-1960
|
Carbon brush set |
$21.77
|
2 |
|
usually ships 6-18 days |
16c |
991-1210-P
|
24V 3 stage vacuum motor tangential with Packard plug |
$105.05
|
1 |
(NON-OEM) |
ships same day |
16d |
991-1221
|
Carbon brush without plastic cover (pkg of 2) |
$13.20
|
1 |
(NON-OEM) |
usually ships 6-16 days |
17 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
3 |
|
ships same day |
18 |
999-0165
|
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
$1.39
|
3 |
|
ships same day |
19 |
170-0280
|
Connector housing (black) |
$5.00
|
2 |
|
usually ships 4-15 days |
20 |
997-2007
|
Hose clamp |
$1.88
|
3 |
|
ships same day |
21 |
170-6083
|
Exhaust hose |
$21.77
|
1 |
|
usually ships 6-18 days |
22 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
$0.90
|
2 |
|
ships same day |
23 |
170-0268
|
Drain chain assembly |
$10.90
|
1 |
|
usually ships 6-18 days |
24 |
170-7382
|
Squeegee hose adapter |
$20.20
|
1 |
|
usually ships 1-5 days |
25 |
170-7084
|
Squeegee vacuum hose with 1 cuff |
$53.16
|
1 |
|
usually ships 6-18 days |
26 |
170-7251
|
Drain hose housing |
$9.60
|
1 |
|
ships same day |
27 |
170-7272
|
Drain plug |
$9.60
|
1 |
|
usually ships 6-18 days |
28 |
170-7271
|
O-ring |
$9.60
|
1 |
|
usually ships 6-18 days |
29 |
170-7269
|
Drain valve (OBSOLETE) |
$12.18
|
1 |
|
usually ships 6-18 days |
30 |
164-0218
|
Nylon hose clamp |
$3.69
|
1 |
|
ships same day |
31 |
170-7086
|
Recovery tank drain hose |
$119.48
|
1 |
|
usually ships 6-18 days |
32 |
170-7383
|
Recovery tank support |
$62.80
|
1 |
|
usually ships 6-18 days |
33 |
999-0843
|
Washer 5/8 flat nylon |
$0.90
|
1 |
|
ships same day |
34 |
170-7036
|
Shoulder screw |
$20.22
|
1 |
|
usually ships 6-18 days |
35 |
170-3465
|
Impeller housing (OBSOLETE) |
$229.93
|
2 |
|
usually ships 1-5 days |
36 |
170-7384
|
Recovery tank (OBSOLETE) |
$896.40
|
1 |
(includes 35) |
usually ships 1-5 days |
37 |
170-7081
|
Float switch (includes strain relief) |
$203.49
|
1 |
(includes 38, two of 11 and two of 12) |
usually ships 6-18 days |
38 |
170-0292
|
Strain relief |
$14.86
|
1 |
(includes 37) |
usually ships 4-15 days |
39 |
170-0293
|
Seal |
$31.51
|
1 |
|
usually ships 6-18 days |
