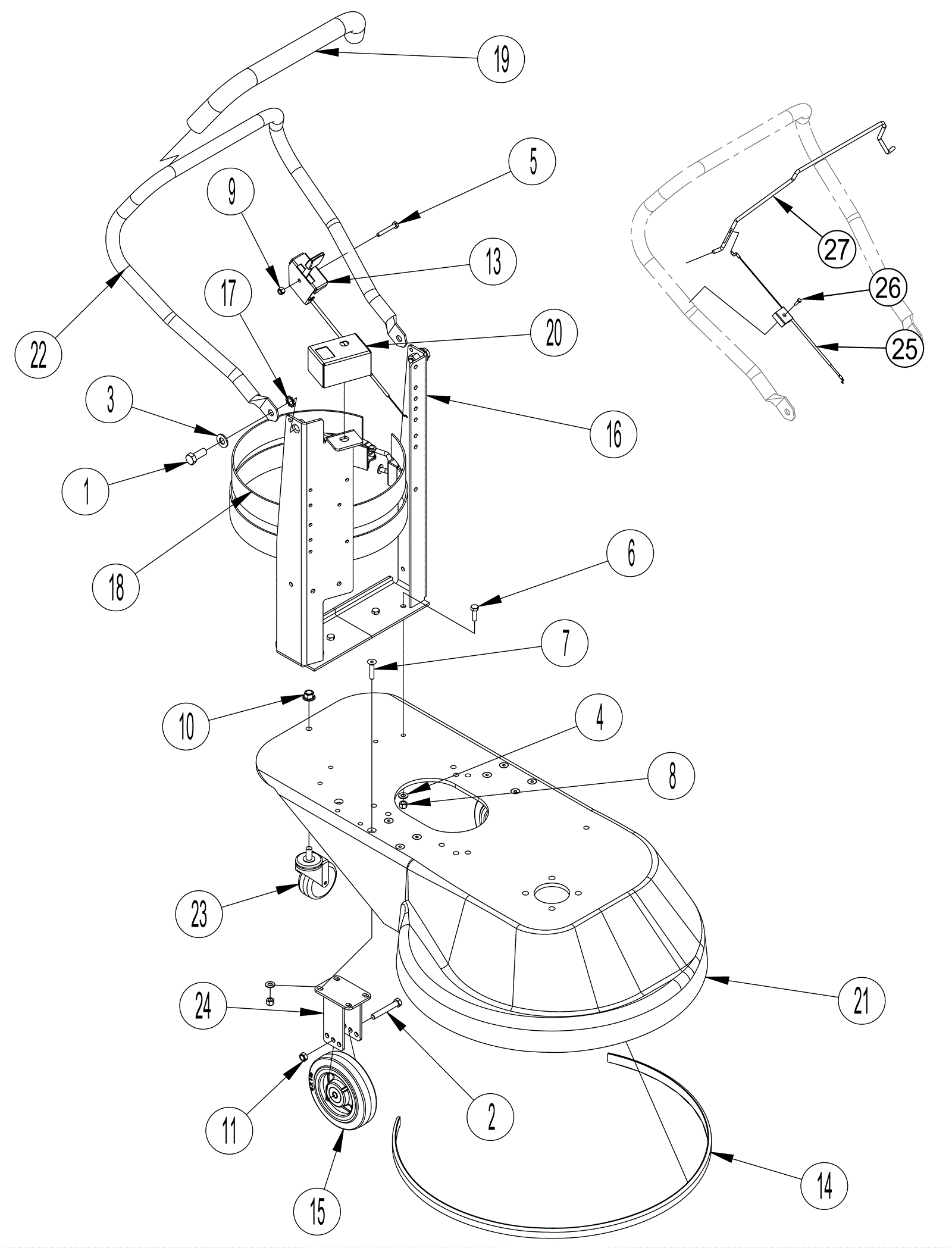

Frame Assembly - Standard

#PartDescription ReqNotesAvailability
1 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
2 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated 2
3 999-0114 Washer 1/2 SAE flat 2
4 999-0024 Washer 5/16 flat stainless steel 16
5 999-1436 Bolt 1/4-20 x 1 3/4 hex stainless steel 1 (only used on models 56381402, 56381401, 56381405 and 56381407)
6 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 4
7 999-1825 Screw 5/16-18 x 1 1/2 flat head socket SS 8
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1 (only used on models 56381402, 56381401, 56381405 and 56381407)
10 999-0388 Nut 7/16-14 flange lock serrated zinc plated 1
11 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2
13 272-9279 Throttle cable 1 (only used on models 56381402, 56381401, 56381405 and 56381407)
14a 472-7466 STRIP-21 BUMPER (OBSOLETE) 1
14b 472-7467 STRIP-27 BUMPER 1
15a 170-3171 6 inch standard wheel 2 (OEM)
15b 991-8583 6 inch wheel 2 (NON-OEM)
16 170-3156 Propane tank holder weldment 1
17 999-0391 Washer 1/2 internal/external star lock 2
18 992-0001 Velcro loop (sold by the inch) 3 in
19 170-3021 Handle grip tube 1
20 170-3157 Switch and meter guard (OBSOLETE) 1
21a 170-7872 21 inch frame (gray) 1
21b 170-3154 27 inch frame 1
22 170-3022 Upper handle (OBSOLETE) 1
23 170-3009 Rear caster wheel (OBSOLETE) 1
24 170-3166 3 hole wheel bracket (OBSOLETE) 2
25 170-7889 Throttle cable (OBSOLETE) 1 (only used on models 56381406 and 56381454)
26 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc 1 (only used on models 56381406 and 56381454)
27 170-3018 Lever bar 1 (only used on models 56381406 and 56381454)
