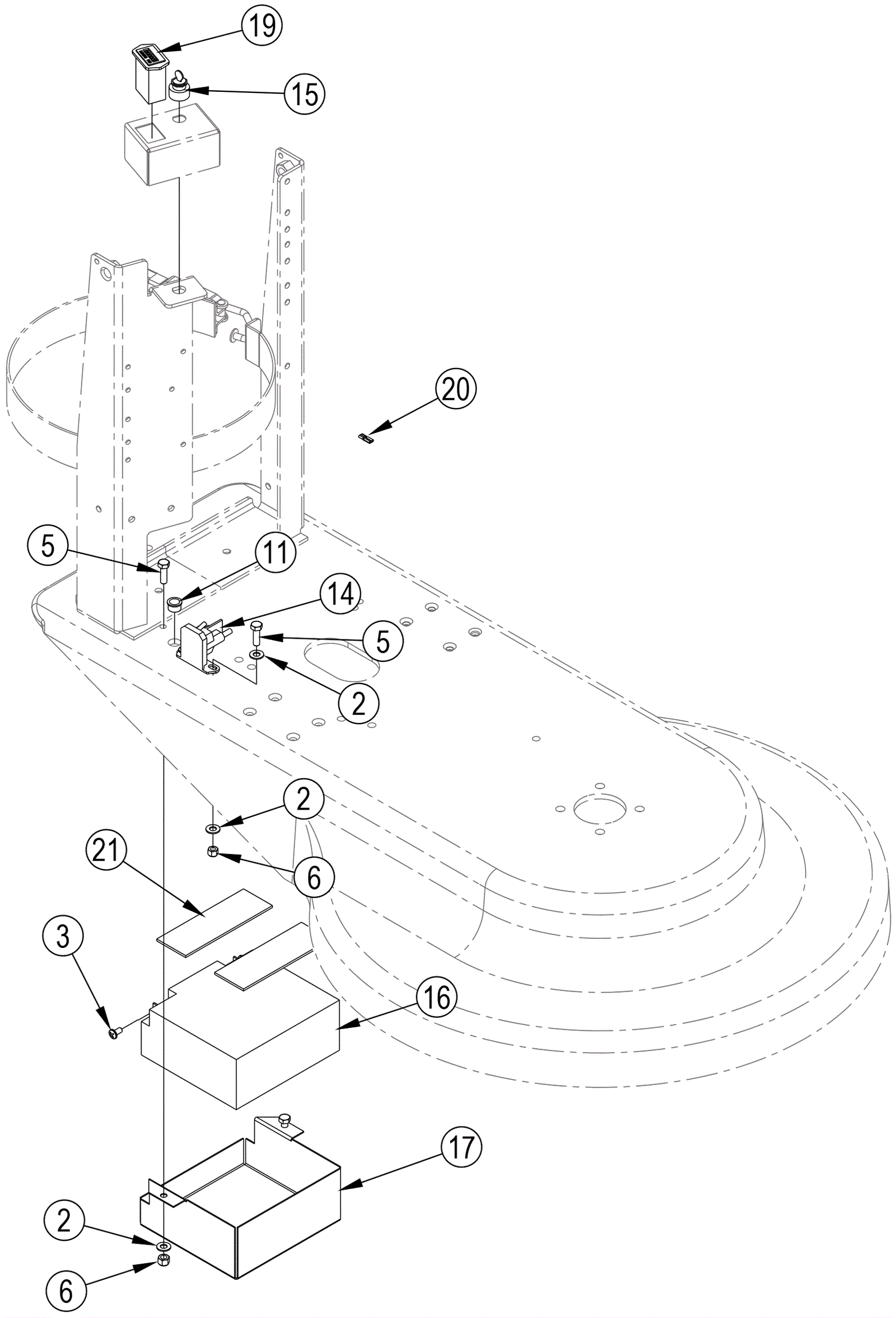

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
|
|
3 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
|
5 |
999-0830
|
Screw 1/4-20 x 1 hex head plain finish |
4 |
|
|
6 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
11 |
372-3697
|
Heyco snap bushing (OBSOLETE) |
1 |
|
|
14 |
170-3062
|
12V starter solenoid |
1 |
|
|
15 |
270-8072
|
Key switch assembly with key |
1 |
|
|
16 |
162-0006
|
12V 18Ah AGM battery (size 6) |
1 |
|
|
17 |
170-3060
|
Battery box |
1 |
|
|
19a |
170-0052
|
Hour meter |
1 |
(OEM) |
|
19b |
991-7137
|
Hour meter |
1 |
(NON-OEM) |
|
20 |
170-6013
|
1/4 terminal |
1 |
|
|
21 |
992-0001
|
Velcro loop (sold by the inch) |
12 in |
(needs cut into 2 6 inch pieces) |
|
N/S |
170-7882
|
PBU Wiring harness |
1 |
|
|
N/S |
170-3715
|
Clip terminal |
1 |
|
|
N/S |
170-7883
|
Insulation boot |
3 |
|
|
N/S |
170-7884
|
Dead stop CO detector |
1 |
|
|
N/S |
170-3108
|
Fuse holder |
1 |
|
|
N/S |
170-7885
|
15amp fuse |
1 |
|
|
