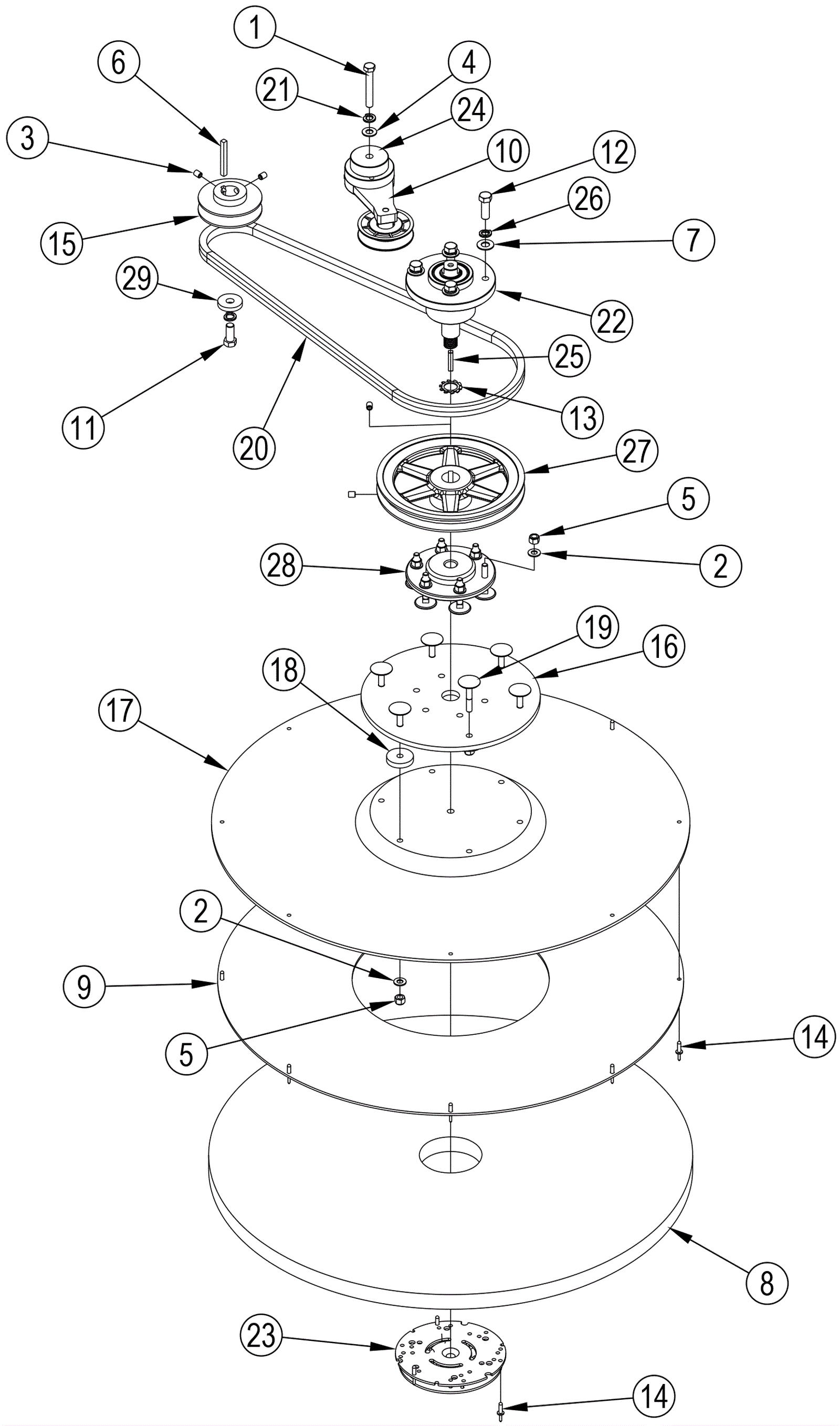

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0390
|
Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated |
1 |
|
|
2a |
999-0024
|
Washer 5/16 flat stainless steel |
12 |
(without clutch) |
|
2b |
999-0123
|
Washer 1/4 SAE flat zinc plated |
12 |
(with clutch) |
|
3 |
181-0079
|
Screw 5/16-18 x 5/8 socket set lock |
4 |
(qty 2 for models with clutch plate) |
|
4 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
5 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
12 |
|
|
6 |
172-2588
|
Key |
1 |
|
|
7 |
999-1416
|
Washer 7/16 flat stainless steel |
4 |
|
|
8 |
472-7986
|
PAD-BEIGE-27-2/CS |
1 |
|
|
9 |
170-6229
|
27 inch pad gripper (OBSOLETE) |
1 |
|
|
10 |
170-8944
|
01-09.5j21 |
1 |
|
|
11 |
370-4874
|
SCR-HEX 7/16-20 X 1.00 |
1 |
|
|
12 |
999-0043
|
Bolt 7/16-20 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
13 |
999-0854
|
Washer 3/4 external lock zinc plated |
1 |
|
|
14 |
170-3101
|
Aluminum pop rivet |
11 |
|
|
16 |
170-3094
|
Belting coupler |
1 |
|
|
17 |
170-3105
|
27 inch pad driver assembly |
1 |
|
|
18 |
170-3095
|
Coupling spacer (OBSOLETE) |
6 |
|
|
19 |
170-3093
|
Elevator bolt |
12 |
|
|
20a |
991-0009
|
BX51 belt |
1 |
(without clutch) |
|
20b |
991-0028
|
BX54 belt |
1 |
(with clutch) |
|
21 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
22 |
170-7878
|
Bearing assembly (OBSOLETE) |
1 |
|
|
23 |
991-2206
|
Center-Lok 3 pad holder |
1 |
|
|
24 |
270-0041
|
Spacer |
1 |
|
|
25 |
170-3075
|
Square keyway |
1 |
|
|
26 |
999-0044
|
Washer 7/16 medium split lock |
5 |
|
|
27a |
160-0135
|
Pulley 8.8 x 1 |
1 |
(without clutch) |
|
27b |
170-0024
|
10 inch pulley |
1 |
(with clutch) |
|
28 |
170-3092
|
Shaft plate steel (OBSOLETE) |
1 |
|
|
29 |
154-0016
|
Bottom clutch spacer |
1 |
|
|
N/S |
170-0026
|
Drive shaft (OBSOLETE) |
1 |
|
|
N/S |
170-3149
|
Bearing assembly with shaft, housing, bearing and snap ring |
1 |
|
|
N/S |
991-1506
|
Sealed ball bearing 6205 |
2 |
|
|
N/S |
997-2201
|
1 inch external snap ring |
2 |
|
|
