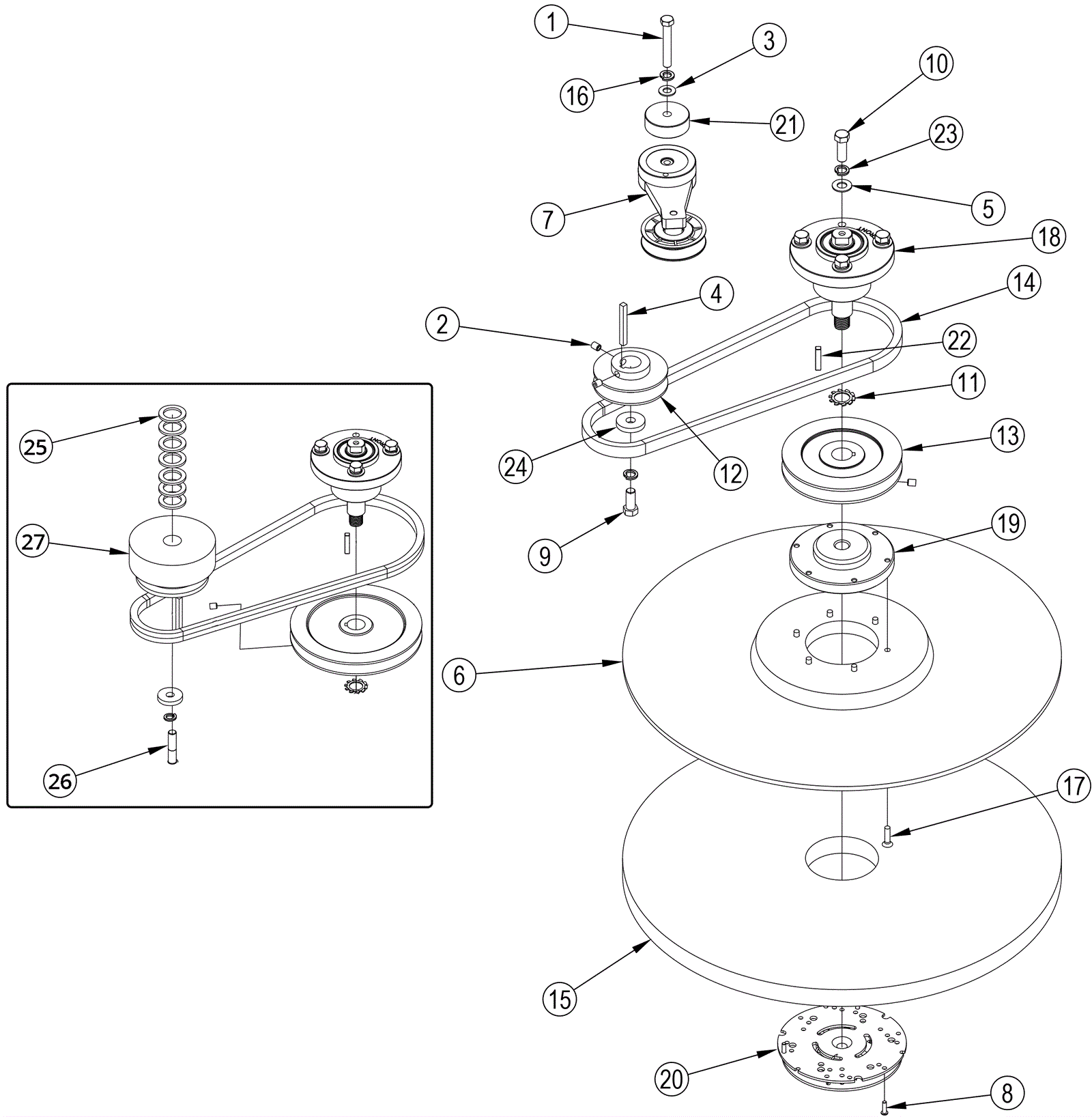

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0390
|
Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated |
1 |
|
|
2 |
181-0079
|
Screw 5/16-18 x 5/8 socket set lock |
4 |
(qty 2 for models with clutch plate) |
|
3 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
4 |
172-2588
|
Key |
1 |
|
|
5 |
999-1416
|
Washer 7/16 flat stainless steel |
4 |
|
|
6 |
270-0047
|
21 inch pad driver flex |
1 |
|
|
7 |
170-8944
|
01-09.5j21 |
1 |
|
|
8 |
999-0678
|
Screw 8-18 x 5/8 pan head self-drilling stainless steel |
3 |
|
|
9 |
370-4874
|
SCR-HEX 7/16-20 X 1.00 |
1 |
(without clutch) |
|
10 |
999-0043
|
Bolt 7/16-20 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
11 |
999-0854
|
Washer 3/4 external lock zinc plated |
1 |
|
|
12 |
170-3140
|
3.5 x 1 pulley |
1 |
(without clutch) |
|
13 |
170-3071
|
6 inch pulley (OBSOLETE) |
1 |
(without clutch) |
|
14a |
991-0023
|
B38 Belt |
1 |
(without clutch) |
|
14b |
991-0042
|
B-41 belt |
1 |
(with clutch) |
|
15 |
255-2152
|
21 inch premium tan polishing pad (pkg of 5) |
1 |
|
|
16 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
17 |
999-0538
|
Screw 1/4-20 x 1 flat head slotted stainless steel |
6 |
|
|
18 |
170-1996
|
Bearing assembly (OBSOLETE) |
1 |
|
|
19 |
270-0046
|
Shaft plate flex |
1 |
|
|
20 |
991-2206
|
Center-Lok 3 pad holder |
1 |
|
|
21 |
270-0041
|
Spacer |
1 |
|
|
22 |
170-3075
|
Square keyway |
1 |
|
|
23 |
999-0044
|
Washer 7/16 medium split lock |
5 |
|
|
24 |
154-0016
|
Bottom clutch spacer |
1 |
|
|
25 |
164-1015
|
Washer 1 x .13 thick flat |
7 |
(with clutch) |
|
26 |
999-0853
|
Screw 7/16-20 x 2 hex head grade 5 plain finish |
1 |
(with clutch) |
|
27 |
170-3142
|
Centrifugal clutch |
1 |
(with clutch) |
|
N/S |
170-0026
|
Drive shaft (OBSOLETE) |
1 |
|
|
N/S |
270-0045
|
Taper housing (OBSOLETE) |
1 |
|
|
N/S |
991-1506
|
Sealed ball bearing 6205 |
2 |
|
|
N/S |
997-2201
|
1 inch external snap ring |
2 |
|
|
