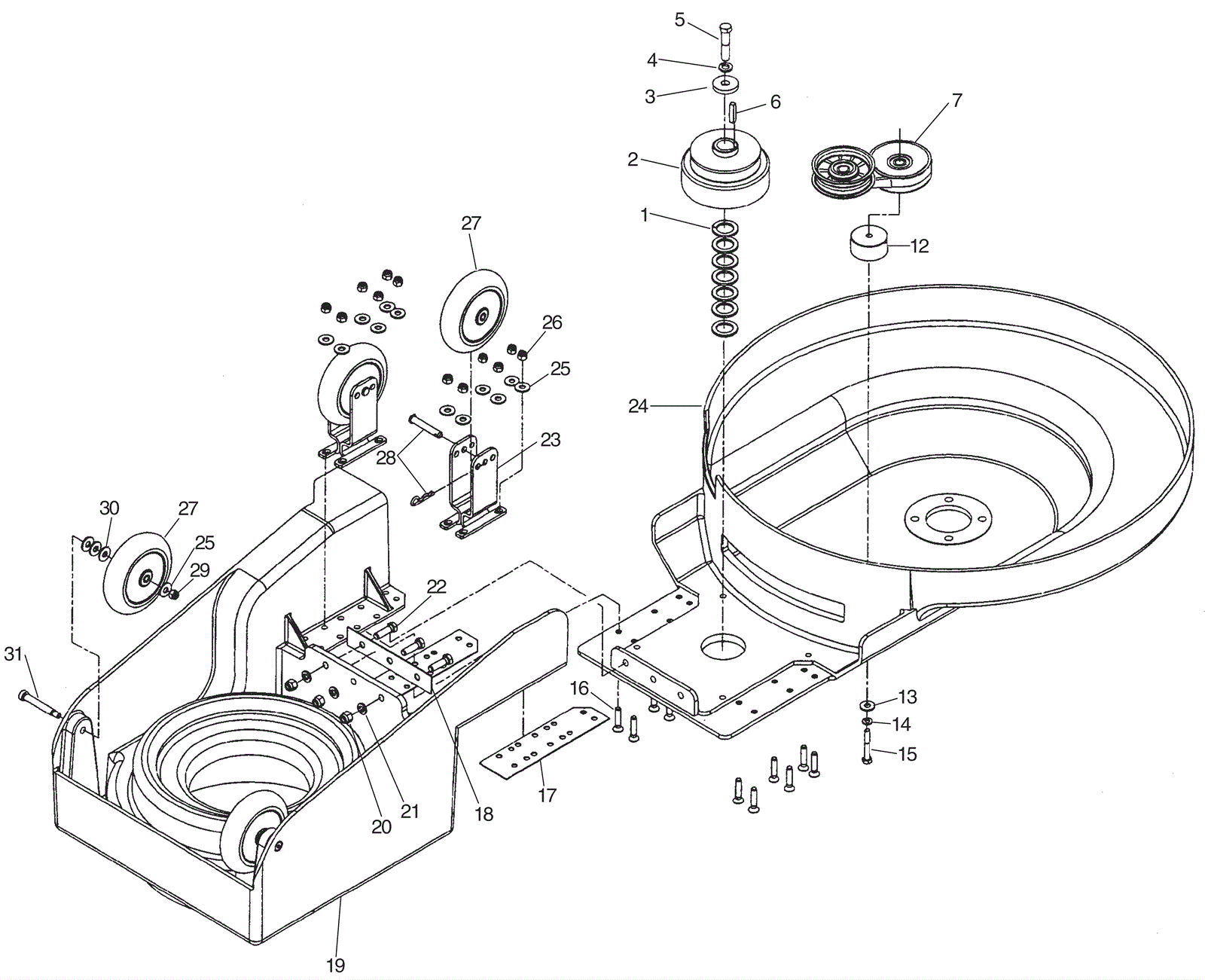

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
164-1015
|
Washer 1 x .13 thick flat |
7 |
|
|
2 |
170-3142
|
Centrifugal clutch |
1 |
|
|
3 |
154-0016
|
Bottom clutch spacer |
1 |
|
|
4 |
999-0044
|
Washer 7/16 medium split lock |
1 |
|
|
5 |
999-0853
|
Screw 7/16-20 x 2 hex head grade 5 plain finish |
1 |
|
|
6 |
170-3075
|
Square keyway |
1 |
|
|
7 |
170-8944
|
01-09.5j21 |
1 |
|
|
12 |
270-0041
|
Spacer |
1 |
|
|
13 |
170-2414
|
Washer flat |
1 |
|
|
14 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
15 |
999-0390
|
Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated |
1 |
|
|
16 |
999-0109
|
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
12 |
|
|
17 |
170-1988
|
Burnisher deck mounting gasket |
2 |
|
|
18 |
170-1989
|
Gasket (OBSOLETE) |
1 |
|
|
19 |
N/A
|
Not available |
1 |
Vacbox casting (Gray) |
|
20 |
999-0170
|
Nut 3/8-16 hex plain finish |
3 |
|
|
21 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
3 |
|
|
22 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
3 |
|
|
23 |
170-1991
|
Caster weldment |
2 |
|
|
24a |
N/A
|
Not available |
1 |
27 inch drive housing casting |
|
24b |
N/A
|
Not available |
1 |
21 inch drive housing casting |
|
25 |
999-0016
|
Washer 1/4 flat plain finish |
14 |
|
|
26 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
12 |
|
|
27 |
170-1994
|
5 inch wheel |
4 |
|
|
28 |
170-1995
|
Cotter pin with clevis pin |
2 |
|
|
29 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
30 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
31 |
999-0638
|
Bolt 3/8-16 x 2 1/4 hex head |
2 |
|
|
N/S |
372-1150
|
Spindle assembly |
1 |
(PBU 21KACAT) |
|
