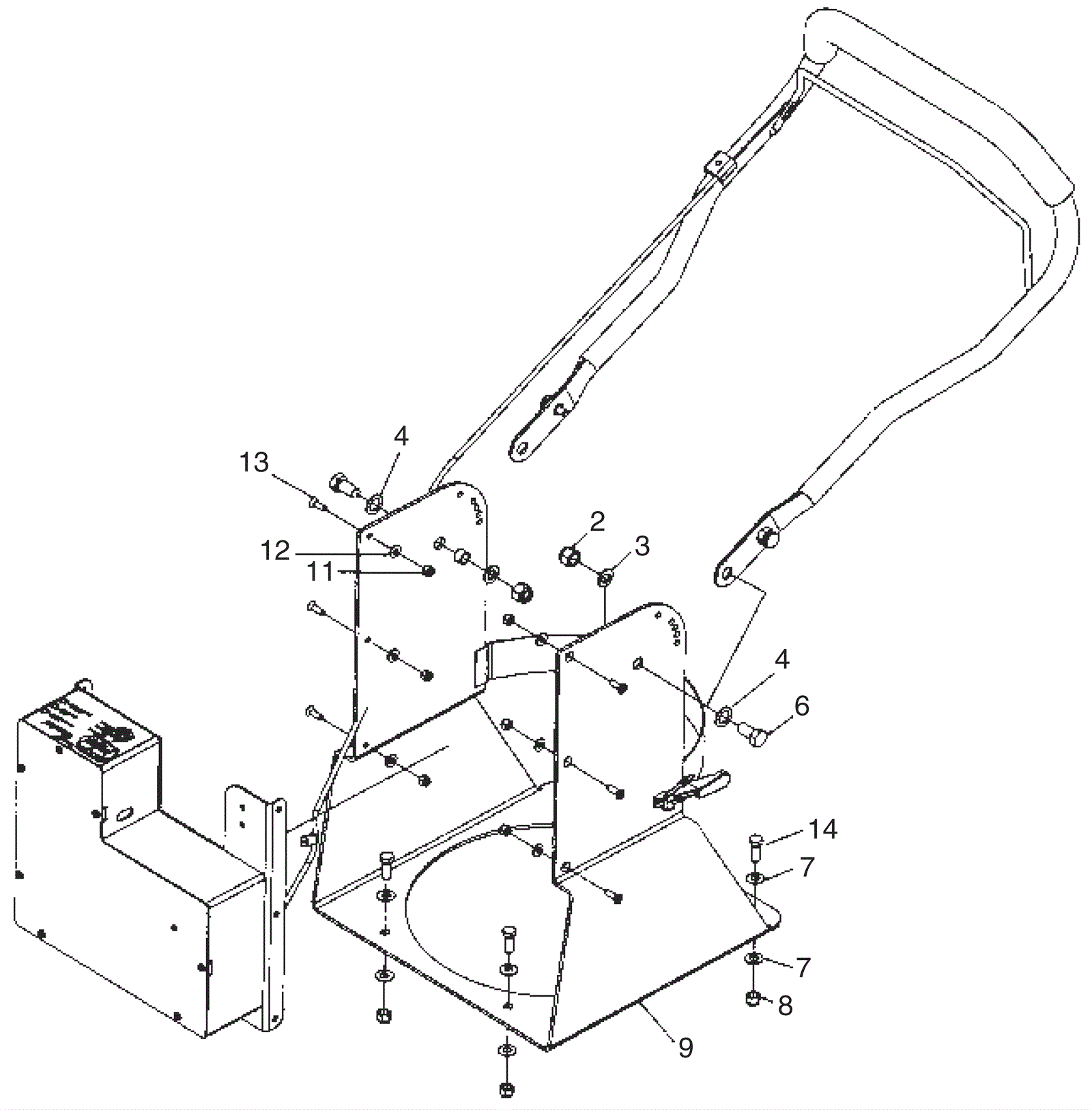

Carrier Assembly

#PartDescription ReqNotesAvailability
2 999-0170 Nut 3/8-16 hex plain finish 2
3 999-0032 Washer 3/8 USS flat plain finish 2
4 270-0033 Spacer 3/16 black 2
6 999-1371 Bolt 1/2 x 3/8 shoulder stainless steel 2
7 999-0032 Washer 3/8 USS flat plain finish 8
8 999-0170 Nut 3/8-16 hex plain finish 4
9 270-0035 Carrier weldment 1
11 999-0152 Nut 1/4-20 nylon insert lock zinc plated 6
12 999-0016 Washer 1/4 flat plain finish 6
13 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 6
14 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
