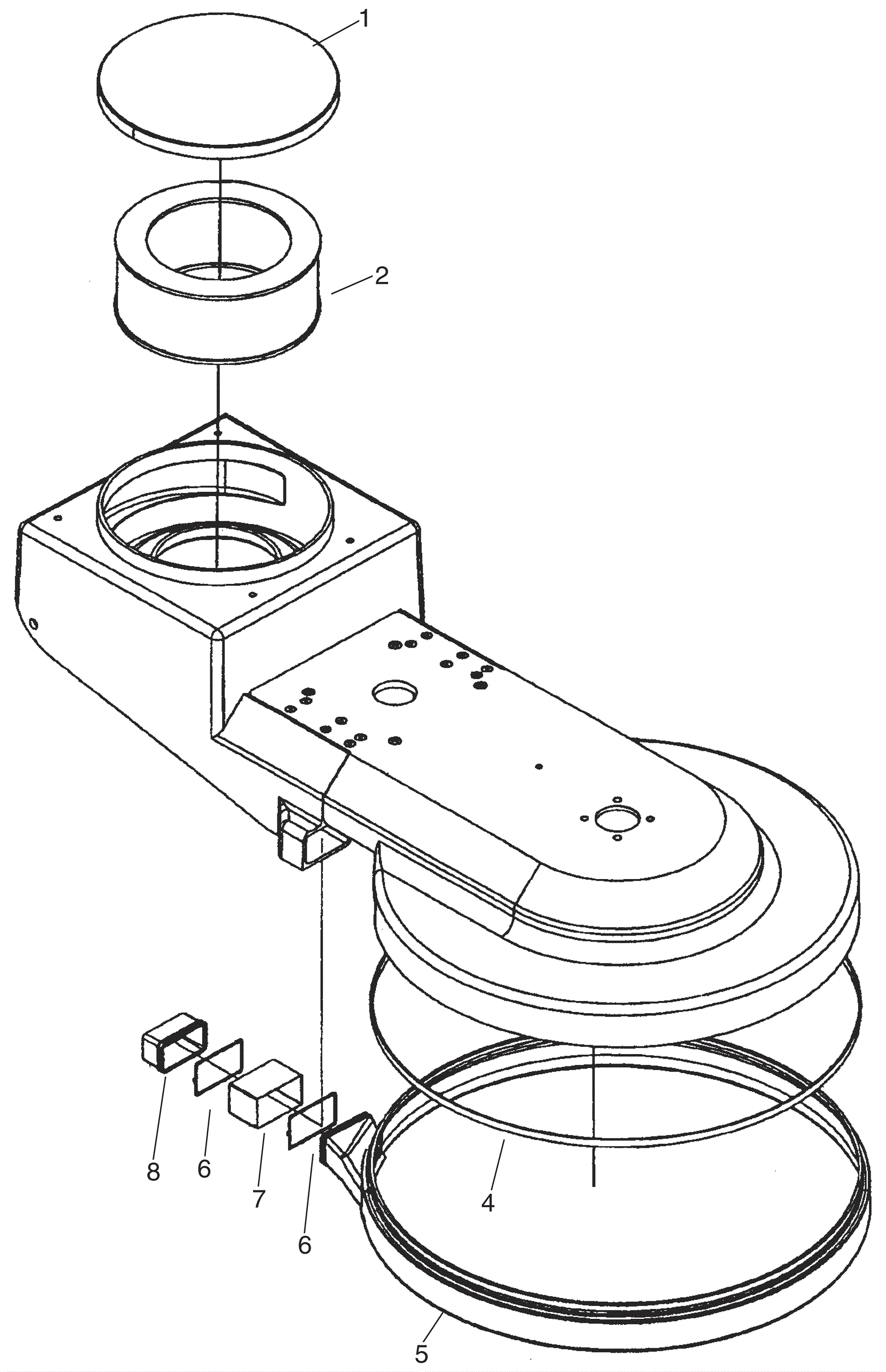

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-1978
|
Filter lid assembly (OBSOLETE) |
1 |
|
|
2 |
170-1979
|
Dust filter (OBSOLETE) |
1 |
|
|
4a |
170-9018
|
27 inch bumper (OBSOLETE) |
1 |
|
|
4b |
270-0039
|
21 inch bumper |
1 |
|
|
4c |
170-1981
|
Dust control bumper skirt |
7.5 ft |
|
|
5a |
170-9019
|
27 inch skirt assembly |
1 |
|
|
5b |
270-0040
|
21 inch skirt assembly |
1 |
|
|
6 |
170-1984
|
Wire tie |
2 |
|
|
7 |
170-1985
|
Dust boot |
1 |
|
|
8 |
170-1986
|
Dust plug in |
1 |
|
|
KIT |
170-1982
|
27 inch dust skirt kit (OBSOLETE) |
1 |
Includes 4A, 5A, 170-7876, 170-1984, rivets and screws |
|
KIT |
170-1983
|
21 inch skirt assembly |
1 |
Includes 4B, 5B, 170-7877, 170-1984, rivets and screws |
|
